TECH PUBLICDatasheet (PDF)

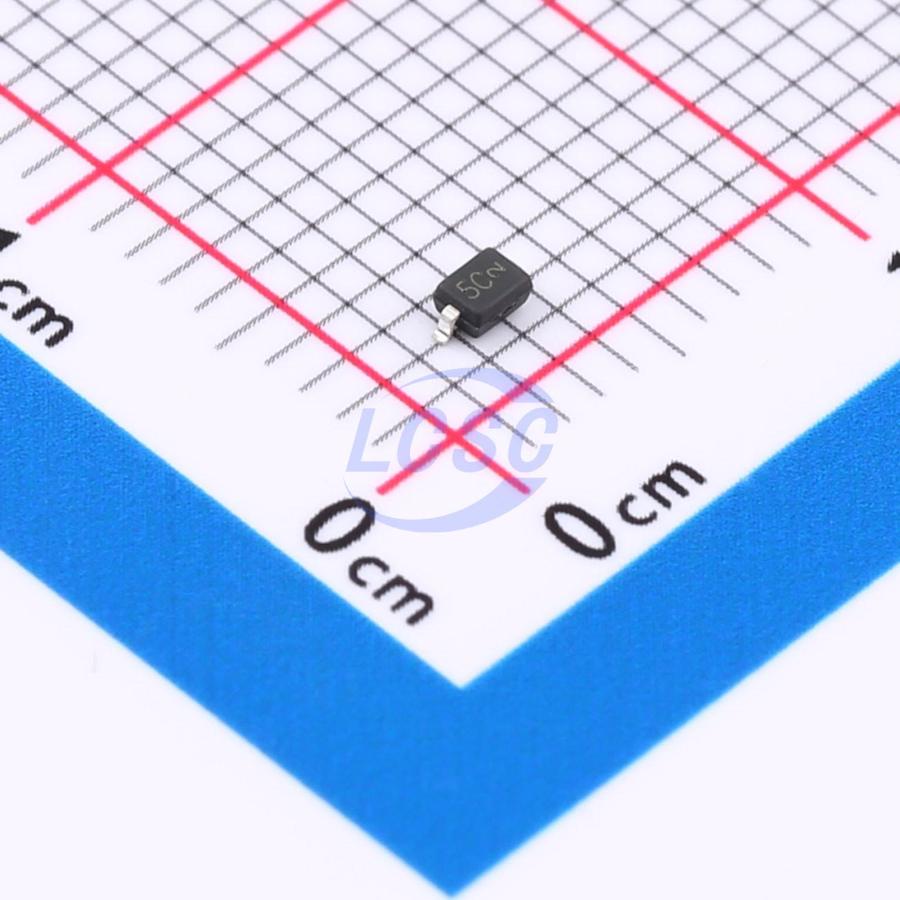

UBD32C05L01
14VC Clamp 4A@8/20us Ipp SOD-323
SOD-323RoHSActive
5VWM 14VC SOD-323
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- UBD32C05L01
- Store part #
- C41431779
- Package / case
- SOD-323
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,370 in stock
#C41431779
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹4.96 | ₹49.60 |
| 100+ | ₹3.89 | ₹389.00 |
| 300+ | ₹3.35 | ₹1,005.00 |
| 3,000+ | ₹2.95 | ₹8,850.00 |
| 6,000+ | ₹2.62 | ₹15,720.00 |
| 9,000+ | ₹2.46 | ₹22,140.00 |
10 × ₹4.96
₹49.60
excl. GST
₹58.53 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
UBD32C05L01
₹49.60 for 10 + GST
Specifications
- Clamping Voltage
- 14V
- Operating Temperature
- -20℃~+125℃
- Peak Pulse Current (Ipp)
- 4A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 100W@8/20us
- Voltage - Breakdown
- 6V
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 80nA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.026 g
Overview
Applications
- Mobile Phones and Accessories
- Battery Protection
- USB VBus Power Line Protection
- Hand Held Portable Applications
Key features
- 100 W peak pulse power (8/20 μs)
- Operating voltage: 5V
- Ultra low clamping voltage
- Complies with following standards:
- IEC 61000-4-2 (ESD) immunity test Air discharge: ±20 kV Contact discharge: ±20 kV
- IEC61000-4-5 (SURGE) 4A (8/20 us)
