XBLWDatasheet (PDF)

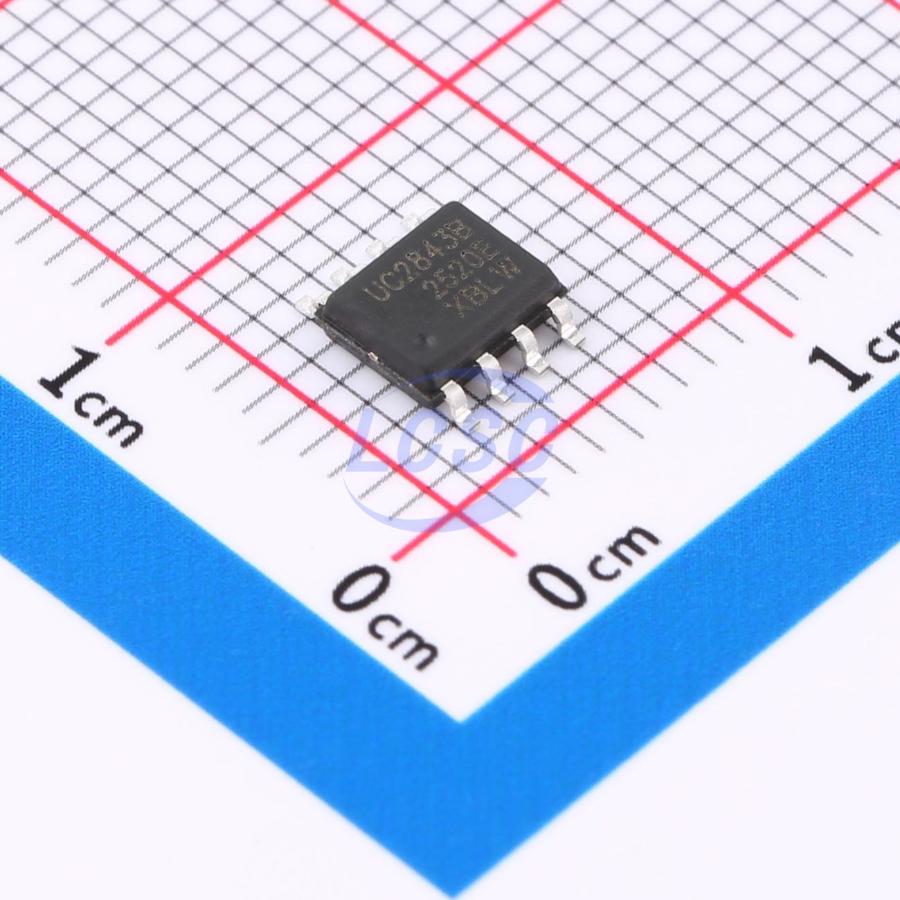

UC2843BDTR(XBLW)
47kHz~57kHz 1A SOP-8 Voltage Regulators - DC DC Switching Regulators RoHS
SOP-8ROHS CompliantActive
Current Mode Pulse-width Controller
- Manufacturer
- XBLW
- Manufacturer part #
- UC2843BDTR(XBLW)
- Store part #
- C48998001
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,630 in stock
#C48998001
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.60 | ₹83.00 |
| 50+ | ₹13.19 | ₹659.50 |
| 150+ | ₹11.48 | ₹1,722.00 |
| 500+ | ₹10.20 | ₹5,100.00 |
| 2,500+ | ₹9.18 | ₹22,950.00 |
| 5,000+ | ₹8.67 | ₹43,350.00 |
5 × ₹16.60
₹83.00
excl. GST
₹97.94 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
UC2843BDTR(XBLW)
₹83.00 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Frequency - Switching
- 47kHz~57kHz
- Pd - Power Dissipation
- 1W
- Features
- Under-voltage lockout;Slope compensation;Under Voltage Protection;Over Current Protection
- Duty Cycle(Max)
- 94%
- Operating Voltage
- 7V~30V
- Output Current
- 1A
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.197 g
Overview
UC2843 is a high-performance fixed-frequency current-mode controller. Designed for off-line and DC-DC converter applications, it offers designers a low-cost solution with minimal external components. These ICs include a trimmed oscillator, precise duty cycle control, temperature-compensated reference, high-gain error amplifier, current-sensing comparator, and a high-current totem-pole output ideally suited for driving power MOSFETs. Protection features include input and undervoltage lockout, cycle-by-cycle current limiting, programmable output dead time, and a latch for single-pulse metering. Available in SOP-8 and DIP-8 packages. Operating temperature range: -40°C ~ 85°C. This product is not authorized for use in life support applications.
Applications
- Switching regulator with any polarity
- Transformer-coupled DC-DC converter
Key features
- Stable internal bandgap reference voltage
- Enhanced load transient response
- Pulse-by-pulse current limiting
- Automatic negative feedback compensation circuit
- High-current totem-pole output (drive current up to 1A)
- Undervoltage lockout (UVLO)
- Low startup and operating current (< 0.13mA)
- Operating frequency up to 500kHz
