XBLWDatasheet (PDF)

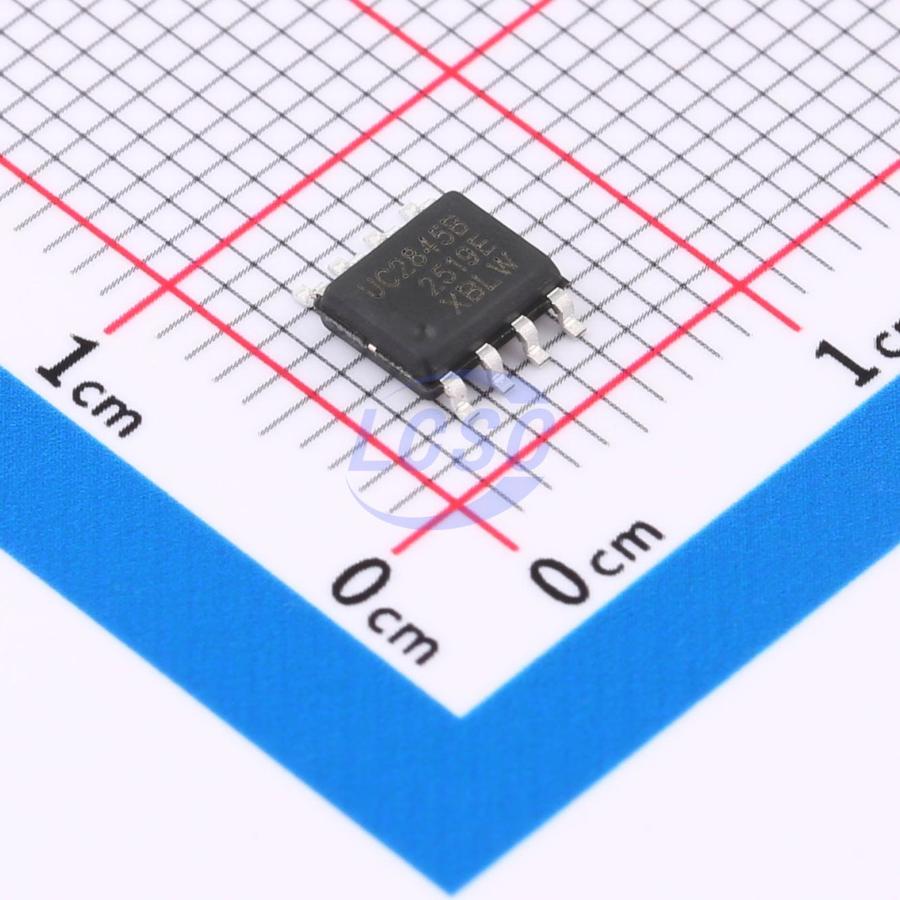

UC2845BDTR(XBLW)
47kHz~57kHz 1A SOP-8 Voltage Regulators - DC DC Switching Regulators RoHS
SOP-8ROHS CompliantActive
Current Mode Pulse-width Controller
- Manufacturer
- XBLW
- Manufacturer part #
- UC2845BDTR(XBLW)
- Store part #
- C48998005
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,125 in stock
#C48998005
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹19.50 | ₹97.50 |
| 50+ | ₹15.40 | ₹770.00 |
| 150+ | ₹13.65 | ₹2,047.50 |
| 500+ | ₹11.46 | ₹5,730.00 |
| 2,500+ | ₹10.49 | ₹26,225.00 |
| 5,000+ | ₹9.90 | ₹49,500.00 |
5 × ₹19.50
₹97.50
excl. GST
₹115.05 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
UC2845BDTR(XBLW)
₹97.50 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Frequency - Switching
- 47kHz~57kHz
- Pd - Power Dissipation
- 1W
- Features
- Slope compensation;Under-voltage lockout;Over Current Protection;Under Voltage Protection
- Duty Cycle(Max)
- 50%
- Operating Voltage
- 7.6V~30V
- Output Current
- 1A
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.196 g
Overview
UC2845 is a fixed-frequency current-mode PWM controller designed for off-line and DC-DC converter applications. This IC integrates an oscillator, temperature-compensated reference voltage source, high-gain error amplifier, current-sensing comparator, and a high-current totem-pole output suitable for driving power MOSFETs. Protection features include input and reference undervoltage lockout with hysteresis, cycle-by-cycle current limiting, a latch for single-pulse metering, and a flip-flop that alternately inhibits the output each oscillator cycle, allowing the output dead time to be programmed between 50% and 70%. The UC2845 is optimized for lower-voltage applications, with UVLO thresholds of 8.2V (turn-on) and 7.6V (turn-off).
Applications
- Switching regulators of any polarity
- Transformer-coupled DC-DC converters
Key features
- Current-mode operation, output switching frequency up to 500 kHz
- Output dead time adjustable from 50% to 70%
- Automatic feed-forward compensation
- Latching PWM for cycle-by-cycle current limiting
- Internal trimmed reference voltage with undervoltage lockout
- High-current push-pull output (drive current up to 1A)
- Undervoltage lockout with hysteresis
- Low startup and operating current (< 0.5 mA)
