TDSEMICDatasheet (PDF)

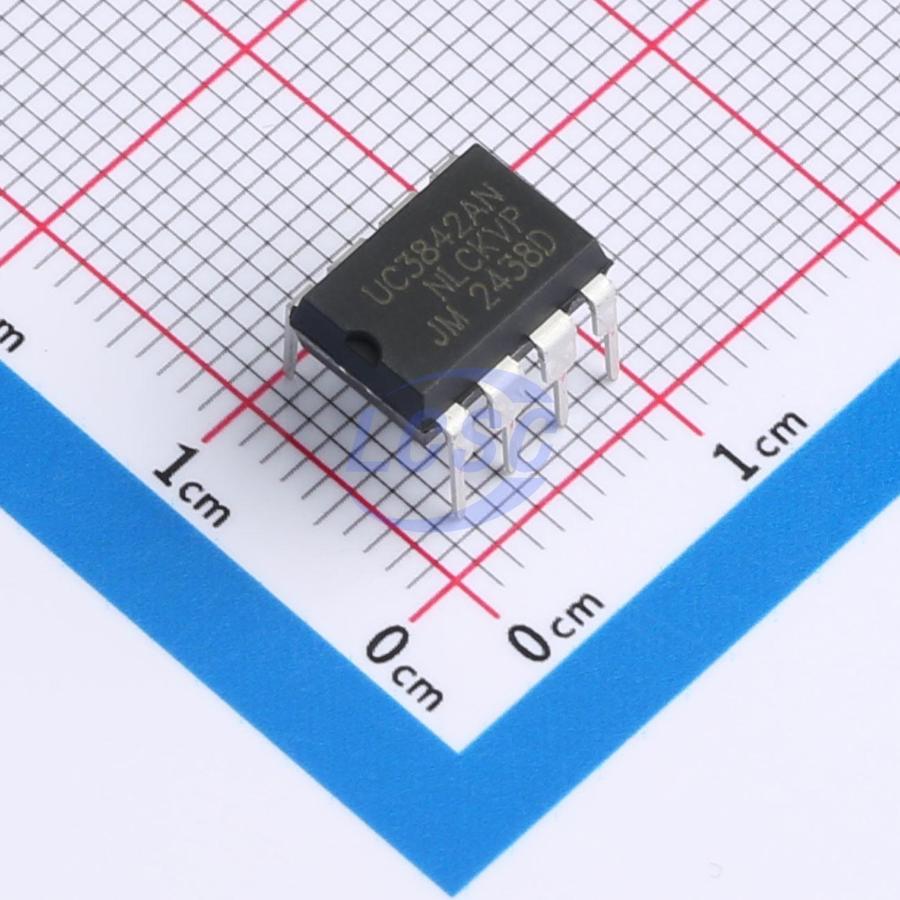

UC3842AN-TD
Switching Regulator IC 1A DIP-8
DIP-8ROHS CompliantActive
Current-mode Pulse Width Modulator
- Manufacturer
- TDSEMIC
- Manufacturer part #
- UC3842AN-TD
- Store part #
- C42422129
- Package / case
- DIP-8
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,275 in stock
#C42422129
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.30 | ₹91.50 |
| 50+ | ₹16.01 | ₹800.50 |
| 150+ | ₹15.03 | ₹2,254.50 |
| 500+ | ₹13.80 | ₹6,900.00 |
| 2,500+ | ₹13.26 | ₹33,150.00 |
| 5,000+ | ₹12.93 | ₹64,650.00 |
5 × ₹18.30
₹91.50
excl. GST
₹107.97 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 50 per tube
UC3842AN-TD
₹91.50 for 5 + GST
Specifications
- Operating Temperature
- 0℃~+70℃@(TA)
- Number of Outputs
- 1
- Frequency - Switching
- 500kHz
- Function
- Step-down type;Boost;Buck-Boost
- Features
- Cycle-by-cycle current limiting;Overcurrent Protection;External compensation
- Operating Voltage
- 30V
- Switch tube (built-in/external)
- External
- Output Current
- 1A
- Quiescent Current
- 12mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.944 g
Overview
UC3842 is a fixed-frequency current-mode PWM controller designed for off-line and DC-DC switching power supply applications. It integrates a temperature-compensated precision voltage reference, an adjustable oscillator for precise duty cycle control, a high-gain error amplifier, a current-sense comparator, a high-current totem-pole output stage suitable for driving power MOSFETs, along with protection circuits including cycle-by-cycle current limiting with hysteresis, undervoltage lockout (UVLO), adjustable dead time, and single-pulse metering latch.
Key features
- Low startup current (<0.5mA)
- Automatic feedforward compensation
- Undervoltage lockout with hysteresis
- Maximum duty cycle limiting
- Operating frequency up to 500 kHz
