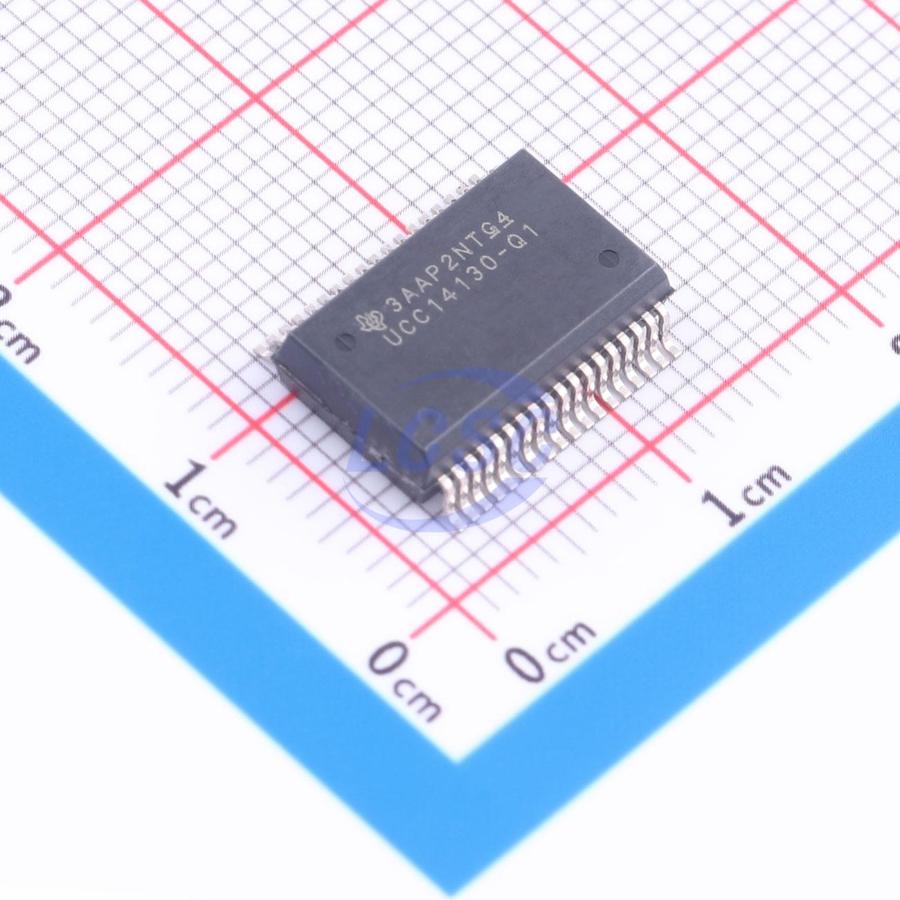

UCC14130QDWNRQ1

UCC14130-Q1 is an automotive-grade, high-isolation-voltage DC/DC power module designed to power GaN, IGBT, SiC, or Si gate drivers. It integrates a transformer and DC/DC controller in a proprietary architecture that achieves high efficiency and ultra-low emissions. It can deliver a 12V isolated output from a 12V regulated input for driving GaN and Si MOSFETs, or a 15V or 18V isolated output from a 15V regulated input to bias SiC MOSFET or IGBT gate drive circuits. High-accuracy characteristics enable better channel enhancement for higher system efficiency without overstressing power device gates. The UCC14130-Q1 delivers up to 1.5W (typical) of isolated output power at high efficiency. The module requires minimal external components and features on-chip device protection, along with additional capabilities including input UVLO, overvoltage lockout, output voltage power-good comparator, overtemperature shutdown, soft-start timeout, adjustable isolated positive and negative output voltages, an enable pin, and an open-drain power-good output pin.

Applications

• Hybrid, Electric, and Powertrain Systems (EV/HEV)
• Inverter and Motor Control
• On-Board Charger (OBC) and Wireless Charger
• Automotive DC/DC Converter
• Grid Infrastructure
• EV Charging Station Power Modules
• DC Charging Station (Charging Pile)
• String Inverter
• Motor Drive
• Industrial Transportation
• Commercial Server Power Supply

Key features

• Fully integrated high-density isolated DC/DC module with isolation transformer
• Isolated DC/DC for driving IGBT, GaN, SiC, and Si MOSFET
• Input voltage range: 10V to 18V, absolute maximum 32V
• Output power 1.5W at ambient temperature TA ≤ 105°C
• Output power 1.0W at ambient temperature TA = 105°C, input voltage 10V < VIN < 18V
• Single or dual output voltage adjustable via resistor, regulation accuracy < ±1.3% over full operating range
• Low EMI via spread-spectrum modulation and integrated transformer design
• Enable, power good, UVLO, OVLO, soft-start, short-circuit, power limiting, undervoltage, overvoltage, and overtemperature protection
• CMTI > 150 kV/µs
• AEC-Q100 automotive qualified
• Temperature Grade 1: junction temperature -40°C ≤ TJ ≤ 150°C
• Temperature Grade 1: ambient temperature -40°C ≤ TA ≤ 125°C
• Functional safety capable
• Documentation available to support functional safety system design
• Planned safety-related certifications:
• DIN EN IEC 60747-17 (VDE 0884-17), basic isolation voltage 5657Vₚₖ
• UL1577, 1-minute isolation voltage 3000VRMS
• CQC GB4943.1, basic insulation
• 36-pin wide-body SSOP package
