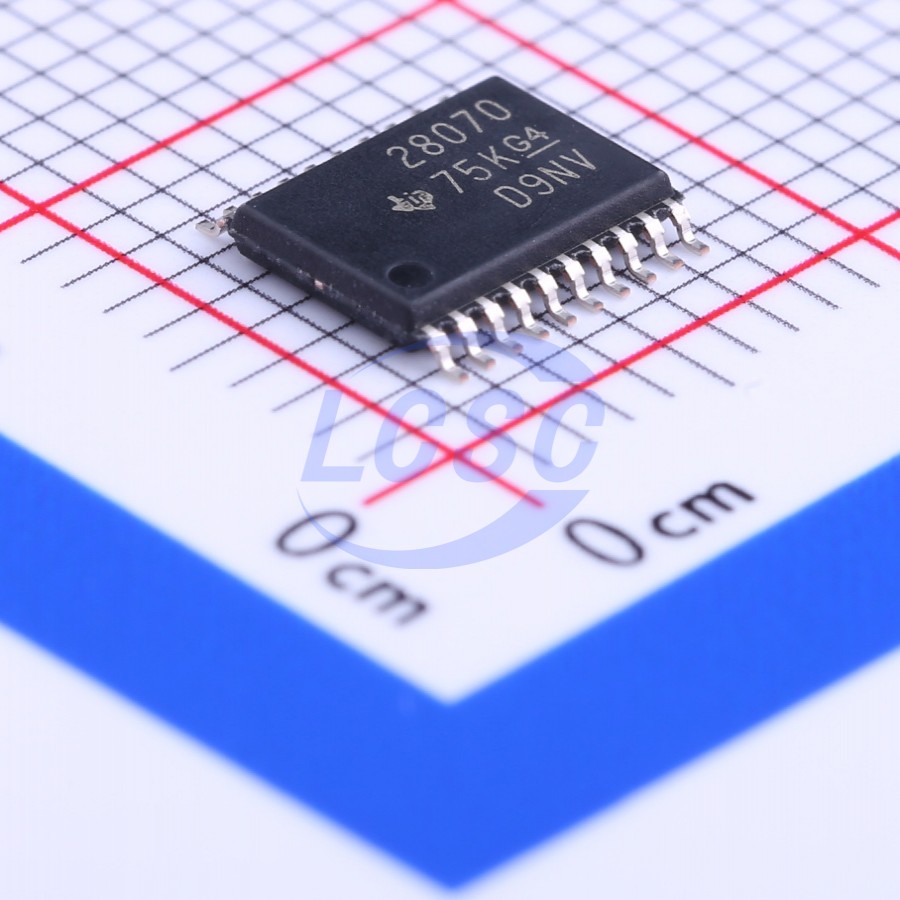

UCC28070PWR
300kHz 11.2V~21V TSSOP-20 PFC (Power Factor Correction) RoHS
UCC28070 Interleaving Continuous Conduction Mode PFC Controller
- Manufacturer
- TI
- Manufacturer part #
- UCC28070PWR
- Store part #
- C138518
- Package / case
- TSSOP-20
- Category
- PFC (Power Factor Correction)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9,152 in stock
#C138518
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹333.73 | ₹333.73 |
| 10+ | ₹284.30 | ₹2,843.00 |
| 30+ | ₹253.61 | ₹7,608.30 |
| 100+ | ₹207.90 | ₹20,790.00 |
| 500+ | ₹193.75 | ₹96,875.00 |
| 1,000+ | ₹187.43 | ₹1,87,430.00 |
1 × ₹333.73
₹333.73
excl. GST
₹393.80 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
UCC28070PWR
₹333.73 for 1 + GST
Specifications
- Features
- With enable;Soft-start;Overvoltage protection;Cycle-by-cycle overcurrent protection;Under-voltage lockout
- Frequency - Switching
- 300kHz
- Type
- PFCController
- Voltage - Supply
- 11.2V~21V
- Working Mode
- CCM
- Operating Temperature
- -40℃~+125℃
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.25 g
Overview
The UCC28070 is an advanced power factor correction (PFC) device that integrates two pulsewidth modulators (PWMs) operating 180° out of phase. This interleaved PWM operation generates substantial reduction in the input and output ripple currents, allowing the conducted-EMI filtering to become easier and less expensive. A significantly improved multiplier design provides a shared current reference to two independent current amplifiers that ensures matched average-current mode control in both PWM outputs while maintaining a stable, lowdistortion, sinusoidal input-line current. The UCC28070 device contains multiple innovations including current synthesis and quantized voltage feed-forward to promote performance enhancements in PF, efficiency, THD, and transient response. Features including frequency dithering, clock synchronization, and slew rate enhancement further expand the potential performance enhancements. The UCC28070 device also contains a variety of protection features including output-overvoltage detection, programmable peak-current limit, undervoltage lockout, and open-loop protection.
Applications
- High-Efficiency Server and Desktop Power Supplies
- Telecom Rectifiers
- White Goods and Industrial Equipment
Key features
- Interleaved Average Current-Mode PWM Control With Inherent Current Matching
- Advanced Current Synthesizer Current Sensing for Superior Efficiency
- Highly-Linear Multiplier Output With Internal Quantized Voltage Feed-Forward Correction for Near-Unity PF
- Programmable Frequency from 30 kHz to 300 kHz
- Programmable Maximum Duty-Cycle Clamp
- Programmable Frequency-Dithering Rate and Magnitude for Enhanced EMI Reduction
- Magnitude: 3 kHz to 30 kHz
- Rate: Up to 30 kHz
- External-Clock Synchronization Capability
- Enhanced Load and Line Transient Response through Voltage Amplifier Output Slew-Rate Correction
- Programmable Peak Current Limiting
- Bias-Supply UVLO, Overvoltage Protection, Open Loop Detection, and PFC-Enable Monitoring
- External PFC-Disable Interface
- Open-Circuit Protection on VSENSE and VINAC pins
- Programmable Soft-Start
