TECH PUBLICDatasheet (PDF)

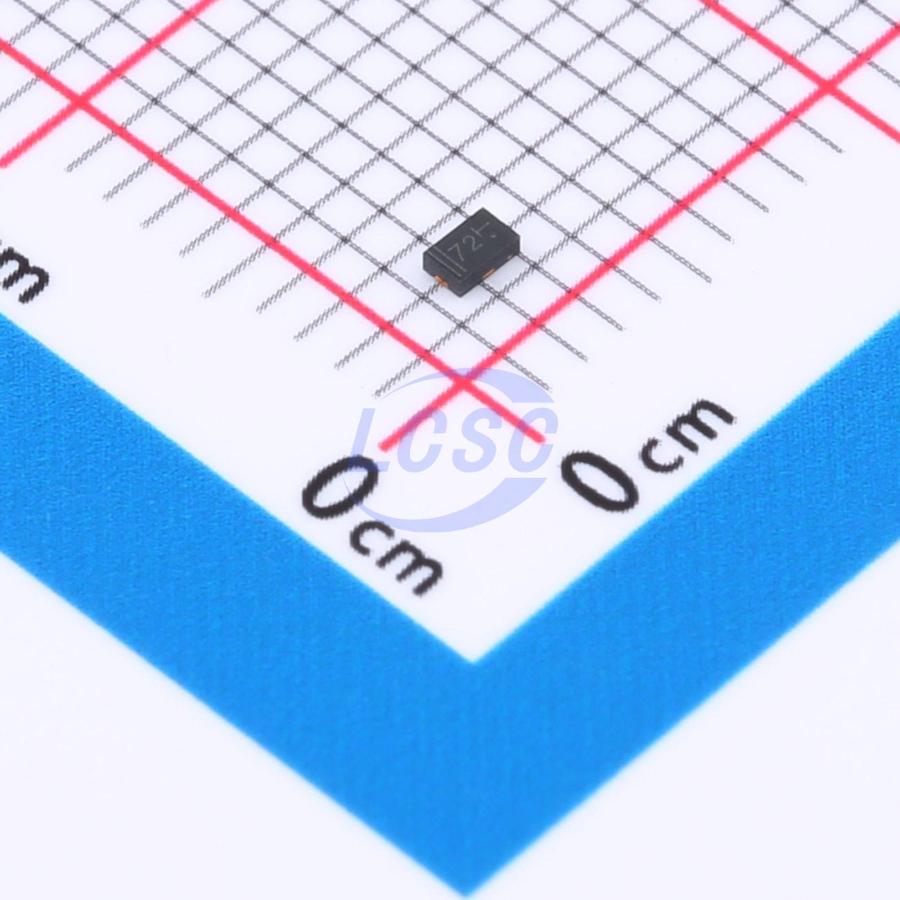

UCLAMP1271P
25VC Clamp 60A@8/20us Ipp DFN1610-2
DFN1610-2RoHSActive
11VWM 25VC DFN1610-2
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- UCLAMP1271P
- Store part #
- C19829436
- Package / case
- DFN1610-2
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,410 in stock
#C19829436
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.71 | ₹67.10 |
| 100+ | ₹5.27 | ₹527.00 |
| 300+ | ₹4.55 | ₹1,365.00 |
| 1,000+ | ₹4.01 | ₹4,010.00 |
| 5,000+ | ₹3.57 | ₹17,850.00 |
| 8,000+ | ₹3.36 | ₹26,880.00 |
10 × ₹6.71
₹67.10
excl. GST
₹79.18 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 8,000 per reel
UCLAMP1271P
₹67.10 for 10 + GST
Specifications
- Clamping Voltage
- 25V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 60A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 1.5kW@8/20us
- Number of Channels
- 1
- Voltage - Breakdown
- 14.5V
- Reverse Leakage Current (Ir)
- 50nA
- Reverse Stand-Off Voltage (Vrwm)
- 11V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 8,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.011 g
Overview
Applications
- Mobile Phones
- Battery Protection
- Power Line Protection
- Vbat pin for Mobile Devices
- Hand Held Portable Applications
Key features
- Ultra small package: 1.6×1.0×0.5 mm
- Protects one data or power line
- Ultra low leakage: nA level
- Low clamping voltage
- 2-pin leadless package
- Complies with following standards:
- IEC 61000 - 4 - 2 (ESD) immunity test Air discharge: ±30 kV Contact discharge: ±30 kV
- IEC61000 - 4 - 4 (EFT) 80A (5/50ns)
- IEC61000 - 4 - 5 (Lightning) 60A (8/20μs)
- RoHS Compliant Package: DFN1610 - 2
- Lead Finish: NiPdAu
- Case Material: “Green” Molding Compound
- UL Flammability Classification Rating 94V - 0
- Moisture Sensitivity: Level 3 per J - STD - 020
- Shipping Qty: 3000 Or 8000 pcs/7 inch Tape & Reel
