TECH PUBLICDatasheet (PDF)

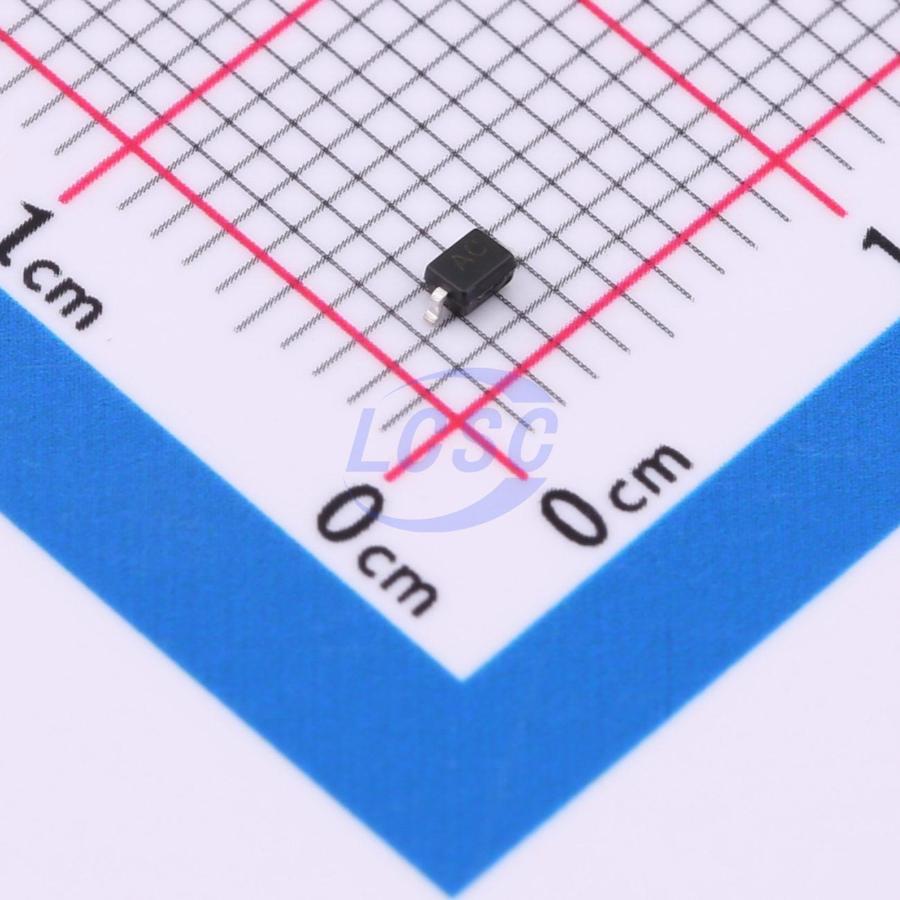

UDD32C05L01
nan
SOD-323RoHSActive
5VWM 16VC SOD-323
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- UDD32C05L01
- Store part #
- C19829549
- Package / case
- SOD-323
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,510 in stock
#C19829549
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.64 | ₹66.40 |
| 100+ | ₹5.28 | ₹528.00 |
| 300+ | ₹4.60 | ₹1,380.00 |
| 3,000+ | ₹4.10 | ₹12,300.00 |
| 6,000+ | ₹3.69 | ₹22,140.00 |
| 9,000+ | ₹3.48 | ₹31,320.00 |
10 × ₹6.64
₹66.40
excl. GST
₹78.35 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
UDD32C05L01
₹66.40 for 10 + GST
Specifications
- Clamping Voltage
- 16V
- Peak Pulse Power Dissipation (Ppp)
- 250W@8/20us
- Number of Channels
- 1
- Voltage - Breakdown
- 6V
- Reverse Leakage Current (Ir)
- 200nA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.027 g
Overview
Applications
- USB Ports
- Smart Phones
- Wireless Systems
- Ethernet 10/100/1000Base T
Key features
- 250W peak pulse power (8/20μs)
- Low operating :5V
- Ultra low capacitance: 0.8pF typical
- Ultra low leakage: nA leel
- Low clamping voltage
- Protects one power line or data line
- Complies with following standards:
- IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV
- IEC61000-4-4 (EFT) 40A (5/50ns)
- RoHS Compliant
