TECH PUBLICDatasheet (PDF)

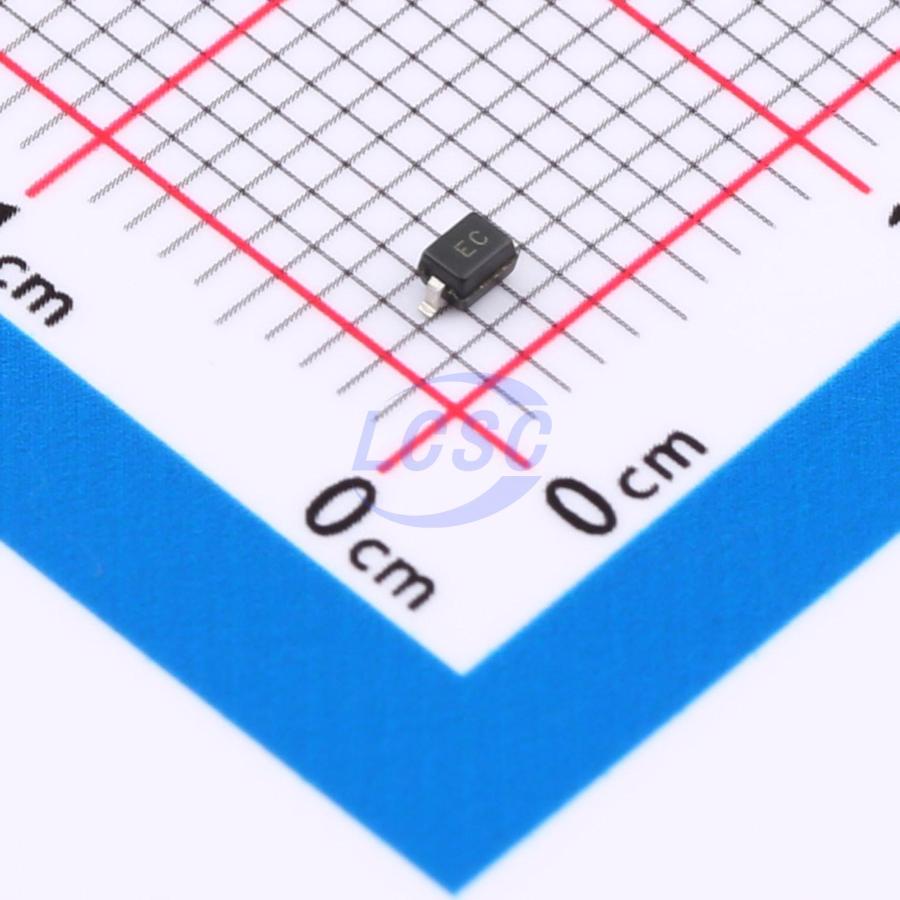

UDD32C15L01
nan
SOD-323RoHSActive
15VWM 31VC SOD-323
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- UDD32C15L01
- Store part #
- C23378030
- Package / case
- SOD-323
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,910 in stock
#C23378030
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.55 | ₹85.50 |
| 100+ | ₹6.95 | ₹695.00 |
| 300+ | ₹6.14 | ₹1,842.00 |
| 3,000+ | ₹4.90 | ₹14,700.00 |
| 6,000+ | ₹4.41 | ₹26,460.00 |
| 9,000+ | ₹4.17 | ₹37,530.00 |
10 × ₹8.55
₹85.50
excl. GST
₹100.89 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
UDD32C15L01
₹85.50 for 10 + GST
Specifications
- Clamping Voltage
- 31V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Power Dissipation (Ppp)
- 350W@8/20us
- Voltage - Breakdown
- 16V
- Number of Channels
- 1
- Reverse Leakage Current (Ir)
- 200nA
- Reverse Stand-Off Voltage (Vrwm)
- 15V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.027 g
Overview
Applications
- Ethernet 10/100/1000 Base T
- SMART Phones
- Handheld - Wireless Systems
- USB Interface
Key features
- 350W peak pulse power (8/20μs)
- Low operating : 15V
- Ultra low capacitance: 0.8 pF typical
- Ultra low leakage: nA level
- Low clamping voltage
- Protects one power line or data line
- Complies with following standards:
- IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV
- IEC61000-4-5 (Lightning)10A (8/20μs)
- IEC61000-4-4 (EFT) 40A (5/50ns)
- RoHS Compliant
