Union SemiconductorDatasheet (PDF)

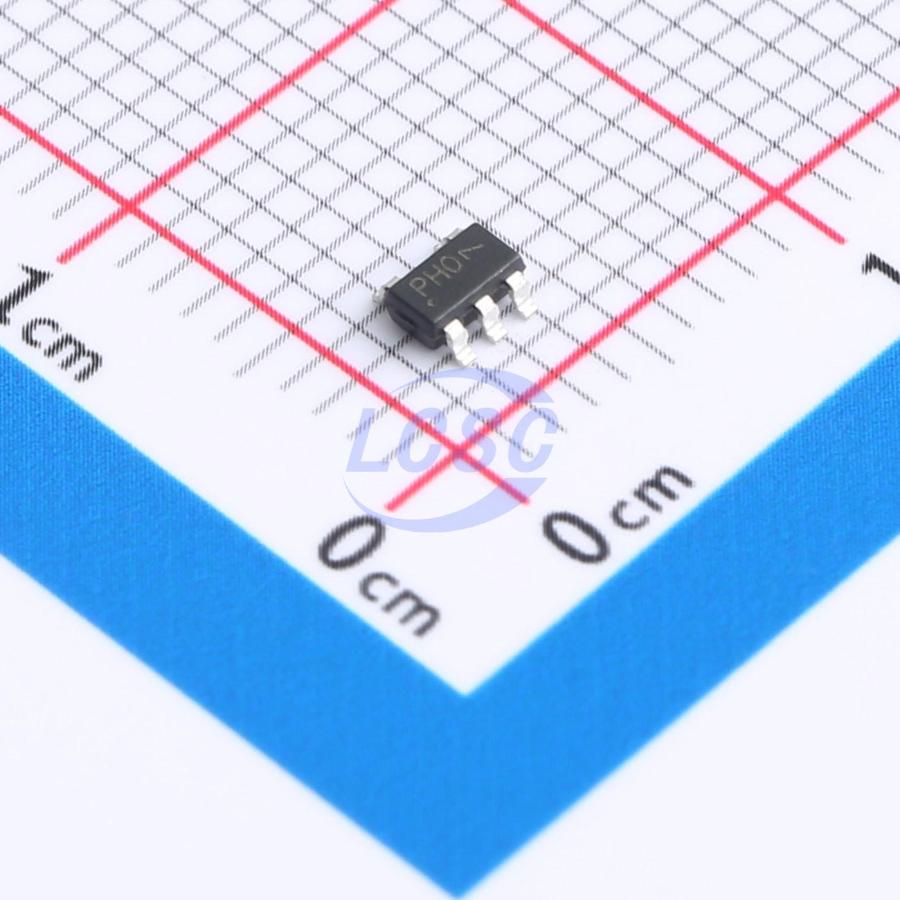

UM1660S
1MHz Boost Adjustable 2V~28V 400mA SOT-23-5 Voltage Regulators - DC DC Switching Regulators RoHS
SOT-23-5ROHS3 CompliantActive
Low Power DC/DC Boost Converter
- Manufacturer
- Union Semiconductor
- Manufacturer part #
- UM1660S
- Store part #
- C7542877
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,745 in stock
#C7542877
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹44.68 | ₹223.40 |
| 50+ | ₹35.21 | ₹1,760.50 |
| 150+ | ₹31.14 | ₹4,671.00 |
| 500+ | ₹26.08 | ₹13,040.00 |
| 3,000+ | ₹23.26 | ₹69,780.00 |
| 6,000+ | ₹21.91 | ₹1,31,460.00 |
5 × ₹44.68
₹223.40
excl. GST
₹263.61 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
UM1660S
₹223.40 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃@(TA);-40℃~+125℃@(TJ)
- Frequency - Switching
- 1MHz
- Function
- Boost
- Number of Outputs
- 1
- Features
- Overcurrent Protection;Light load efficient mode
- Output Type
- Adjustable
- Topology
- Boost
- Operating Voltage
- 2V~6V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 2V~28V
- Output Current
- 400mA
- Quiescent Current
- 36uA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.048 g
Overview
The UM1660 is a PFM controlled step-up DC-DC converter with a switching frequency up to 1MHz. The device is ideal to generate output voltage for small to medium LCD bias supplies and white LED backlight supplies from a single cell Li-Ion battery. The part can also be used to generate standard 3.3V/5V to 12V power conversions. With a high switching frequency of 1MHz, a low profile and small board area solution can be achieved using a chip coil and an ultra small ceramic output capacitor. The UM1660 has an internal 400mA switch current limit, offering lower output voltage ripple. The low quiescent current (typically 36μA) together with an optimized control scheme, allows device operation at very high efficiencies over the entire load current range.
Applications
- LCD Bias Supply
- White LED Supply for LCD Backlights
- Digital Still Camera
- PDAs, Organizers and Handheld PCs
- Cellular Phones
- Standard 3.3V/5V to 12V Conversion
Key features
- 2.0V to 6.0V Input Voltage Range
- Adjustable Output Voltage up to 28V
- 400mA Internal Switch Current
- Up to 1MHz Switching Frequency
- 36μA Typical No Load Quiescent Current
- 1μA Maximum Shutdown Current
- Internal Soft-Start
- Available in Tiny SOT23-5 and DFN6L 2.0×2.0 Packages
