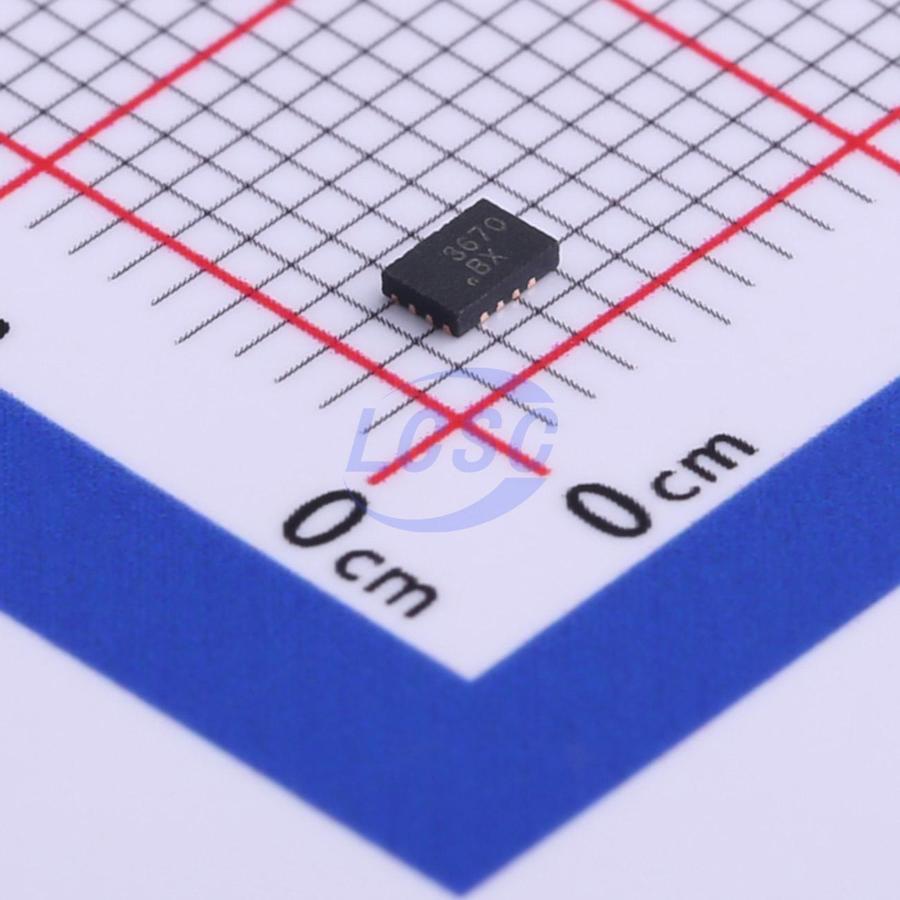

Union Semiconductor

UM3670A

5Ω 4 1.8V~5.5V UQFN-16(1.8x2.6) Analog Switches, Multiplexers, Demultiplexers RoHS

UQFN-16(1.8x2.6)ROHS CompliantActive

High Speed, Low Voltage, Dual, DPDT Analog Switch

Manufacturer: Union Semiconductor
Manufacturer part #: UM3670A
Store part #: C510534
Package / case: UQFN-16(1.8x2.6)
Category: Analog Switches, Multiplexers, Demultiplexers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,049 in stock

#C510534

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹58.24	₹58.24
10+	₹46.28	₹462.80
30+	₹41.07	₹1,232.10
100+	₹34.56	₹3,456.00
500+	₹29.12	₹14,560.00
1,000+	₹27.39	₹27,390.00

Quantity (min 1)

1 × ₹58.24

₹58.24

excl. GST

₹68.72 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

UM3670A

₹58.24 for 1 + GST

Specifications

Features: Power-off isolation
Operating Temperature: -40℃~+85℃
Ron: 5Ω
Number of Channels: 4
Voltage - Supply: 1.8V~5.5V
Con: 18pF

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.04 g

Overview

The UM3670/3670A is a high speed, dual, dual-pole/double-throw (DPDT) analog switch operates from a single +1.8V to +5.5V power supply. The UM3670/3670A features dual 5Ω RON (TYP) DPDT switches with 300MHz bandwidth and low crosstalk. The switch offers a high-performance, low-cost solution to switch between video sources. The switch is available in Pb-free QFN16 package.
