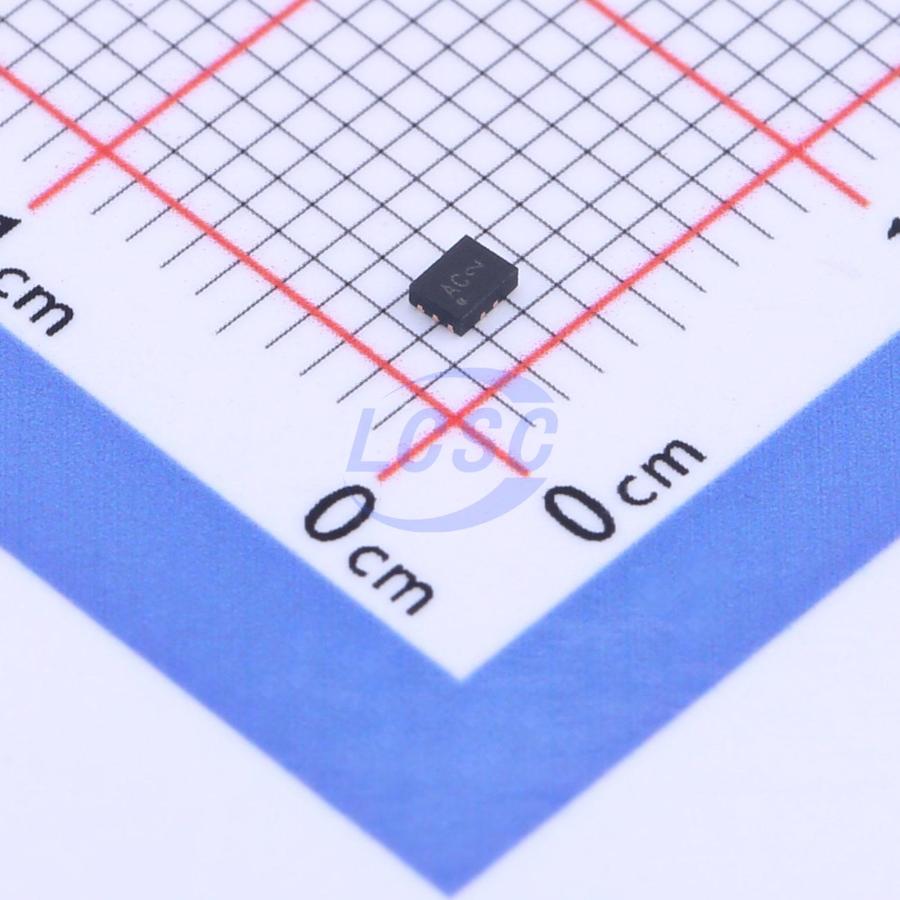

UM7222

The UM7222MA/UM7222 is a dual port high-speed, low-power data switch optimized for USB 2.0 signal switching. The UM7222MA/UM7222 switch is configured in double-pole/double-throw DPDT. It handles bidirectional signal flow, achieving a 550 MHz -3dB bandwidth, and a port to port crosstalk and isolation at -50dB at 250MHz. The UM7222MA/UM7222 operates from a single +2.7V to +5.5V supply, with current consumption less than 1 microampere. The UM7222MA/UM7222 features wide bandwidth and low bit-to-bit skew allow it to pass high-speed differential signal with good signal integrity, offers little or no attenuation of the high-speed signals at the outputs. Its high channel-to-channel crosstalk rejection results in minimal noise interface. Its bandwidth is wide enough to pass high-speed USB 2.0 differential signals (480Mbps). The control logic threshold is guaranteed to be compatible with 1.8V logic. The UM7222MA is available in Pb-free MSOP10 package, while the UM7222 is available in Pb-free QFN10 package (1.4mm×1.8mm×0.55mm). They are ideal for portable high speed mix signal switching application.

Applications

• Differential Signal Data Routing
• USB2.0 Signal Routing
• Cell Phone, PDA, Digital Camera and Notebook
• LCD Monitor, TV and Set-Top Box

Key features

• Ron is Typically 6.5Ω at VCC = 3.0V
• Low Bit-to-Bit Skew: Typically 50ps
• OVT on D+ and D- up to 5.5V
• Power OFF Protection: When VCC = 0V, D+ and D- can Tolerate up to 5.5V
• Low Crosstalk: -50dB (250MHz)
• Low Current Consumption: 1μA
• Near-Zero Propagation Delay: 250ps
• Channel On-Capacitance: 6.5pF(Typical)
• VCC Operating Range: +2.7V to +5.5V
• 550MHz Bandwidth (or Data Frequency)
• Lead (Pb)-Free MSOP10 and QFN10 Packages
• ESD Rating: ±4kV I/O to GND
