TECH PUBLICDatasheet (PDF)

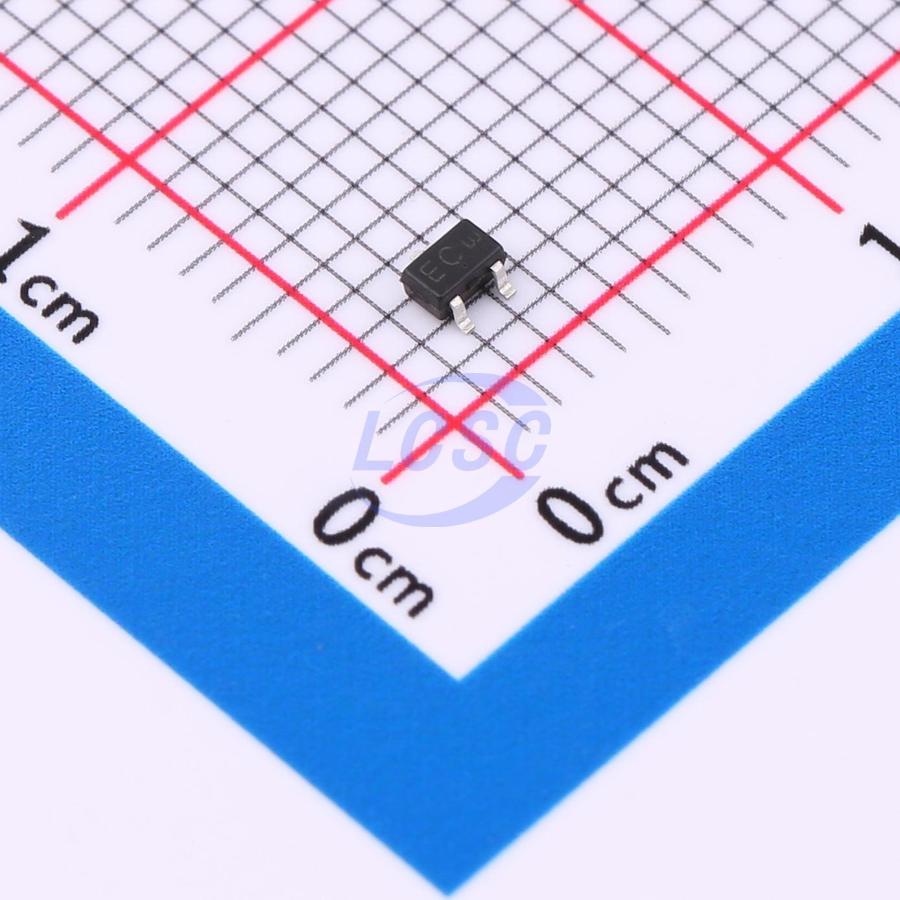

UMZC6.8N
nan
SOT-323RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- UMZC6.8N
- Store part #
- C41408118
- Package / case
- SOT-323
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,000 in stock
#C41408118
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹19.18 | ₹95.90 |
| 50+ | ₹15.40 | ₹770.00 |
| 150+ | ₹13.51 | ₹2,026.50 |
| 500+ | ₹12.09 | ₹6,045.00 |
| 3,000+ | ₹10.95 | ₹32,850.00 |
| 6,000+ | ₹10.39 | ₹62,340.00 |
5 × ₹19.18
₹95.90
excl. GST
₹113.16 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
UMZC6.8N
₹95.90 for 5 + GST
Specifications
- Clamping Voltage
- 9V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 4A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 68W
- Voltage - Breakdown
- 6.8V
- Reverse Leakage Current (Ir)
- 200nA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.029 g
Overview
Applications
- Laptop Computers
- Cellular Phones
- Digital Cameras
- Personal Digital Assistants (PDAs)
Key features
- Ultra low capacitance: 0.3pF typical(IO to I0)
- Ultra low leakage: nA level
- Low operating voltage: 5V
- Complies with following standards:
- IEC 61000 - 4 - 2 (ESD) immunity test Air discharge: ±20kV Contact discharge: ±15kV
- IEC61000 - 4 - 5 (Lightning) 4A (8/20μs)
- RoHS Compliant Lead Finish: NiPdAu
