VBsemi ElecDatasheet (PDF)

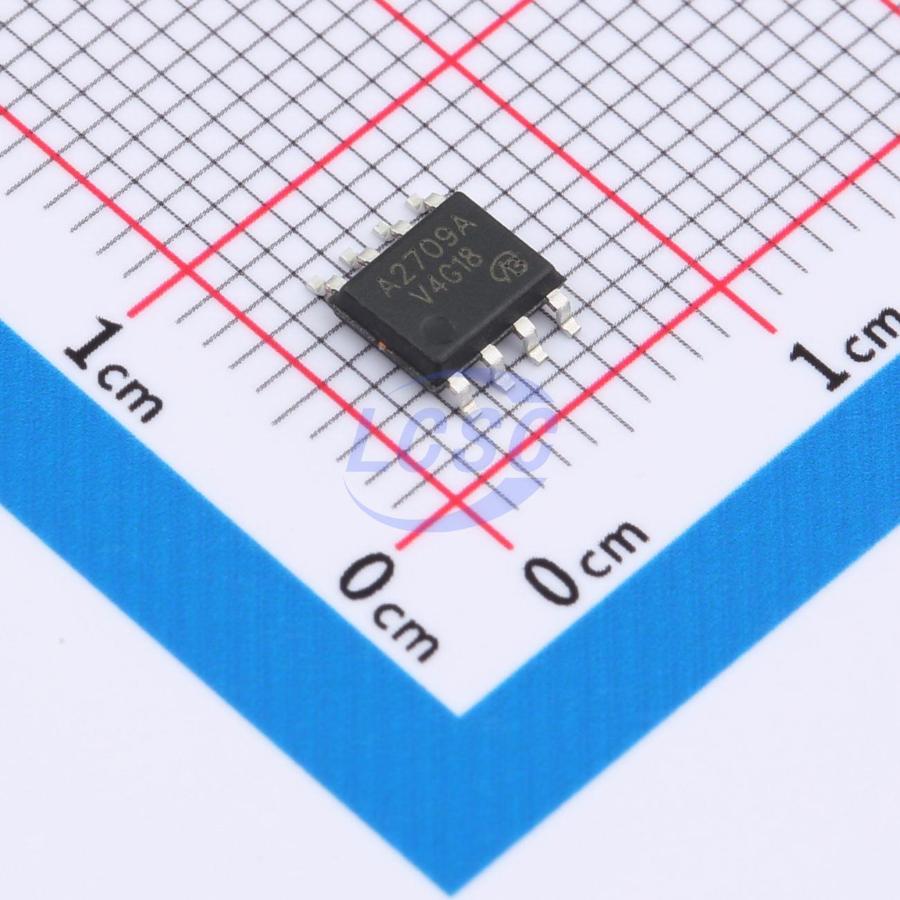

UPA2709AGR-VB
N-Channel 30V 13A 4.1W Surface Mount SO-8
SO-8RoHSActive
MOSFET N-CH 30V 13A SO-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- UPA2709AGR-VB
- Store part #
- C29779066
- Package / case
- SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C29779066
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹43.87 | ₹219.35 |
| 50+ | ₹34.45 | ₹1,722.50 |
| 150+ | ₹30.42 | ₹4,563.00 |
| 500+ | ₹25.38 | ₹12,690.00 |
| 2,500+ | ₹23.14 | ₹57,850.00 |
| 4,000+ | ₹21.79 | ₹87,160.00 |
5 × ₹43.87
₹219.35
excl. GST
₹258.83 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
UPA2709AGR-VB
₹219.35 for 5 + GST
Specifications
- Drain to Source Voltage
- 30V
- Operating Temperature
- -55℃~+150℃
- Output Capacitance(Coss)
- 165pF
- Current - Continuous Drain(Id)
- 13A
- Ciss-Input Capacitance
- 800pF
- Pd - Power Dissipation
- 4.1W
- Reverse Transfer Capacitance (Crss)
- 73pF
- RDS(on)
- 8mΩ@10V;11mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 15nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.225 g
Overview
Applications
- Laptop CPU core
- High-end switching
Key features
- Halogen-free
- Trench power MOSFET
- Optimized for high-side synchronous rectifier operation
- 100% Rg tested
- 100% UIS tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NTMS4816NR2G-VB#C29779159VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 20 | ₹43.87 · 20 in stock | View |
 | RSS125N03TB-VB#C18794975VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 50 | ₹46.21 · 50 in stock | View |
 | AO4422A-VB#C19632265VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 20 | ₹46.21 · 20 in stock | View |
 | IRF7413ZTRPBF-VB#C20626371VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 50 | ₹45.67 · 50 in stock | View |
 | FDS6298-NL-VB#C20755093VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 45 | ₹45.67 · 45 in stock | View |
