VBsemi ElecDatasheet (PDF)

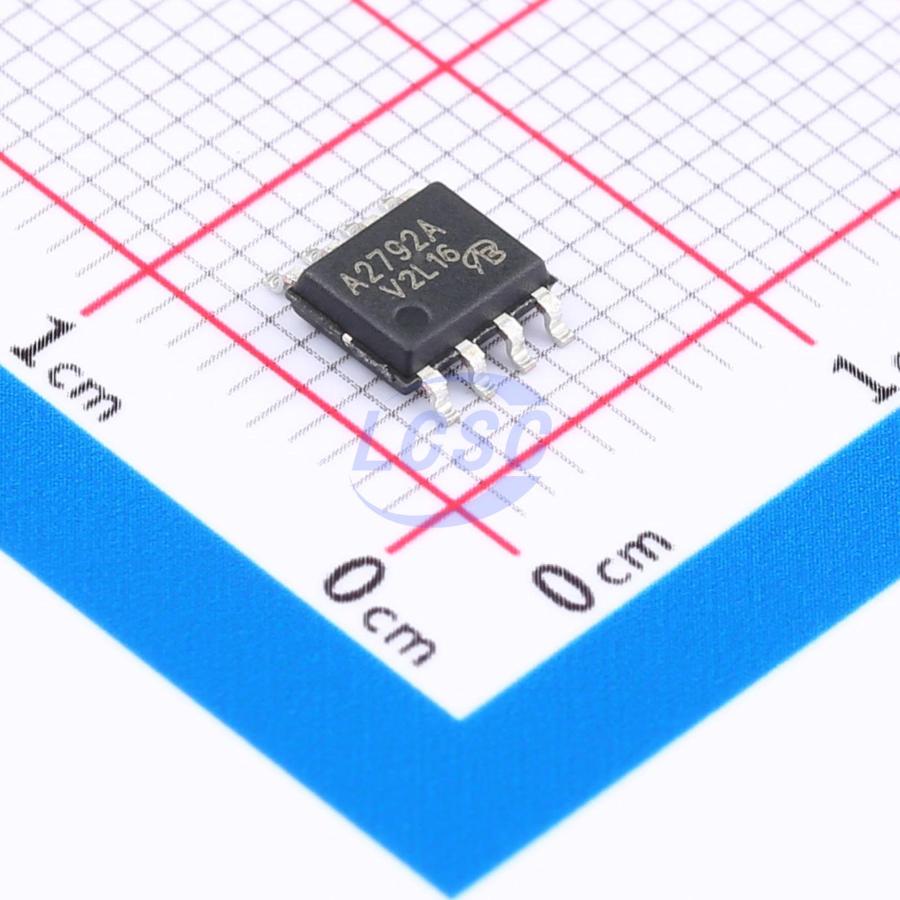

UPA2792AGR-VB
N-Channel+P-Channel 30V 11A 6.1W Surface Mount SO-8
SO-8RoHSActive
MOSFET N-CH+P-CH ARR 30V 11A SO-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- UPA2792AGR-VB
- Store part #
- C5355731
- Package / case
- SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
23 in stock
#C5355731
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹59.67 | ₹59.67 |
| 10+ | ₹47.27 | ₹472.70 |
| 30+ | ₹41.81 | ₹1,254.30 |
| 100+ | ₹35.30 | ₹3,530.00 |
| 500+ | ₹32.15 | ₹16,075.00 |
| 1,000+ | ₹30.47 | ₹30,470.00 |
1 × ₹59.67
₹59.67
excl. GST
₹70.41 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
UPA2792AGR-VB
₹59.67 for 1 + GST
Specifications
- Drain to Source Voltage
- 30V
- Operating Temperature
- -55℃~+150℃
- Output Capacitance(Coss)
- 755pF;800pF
- Current - Continuous Drain(Id)
- 11A;10.5A
- Ciss-Input Capacitance
- 1.421nF;1.515nF
- Pd - Power Dissipation
- 6.1W;3.2W
- Reverse Transfer Capacitance (Crss)
- 254pF;25pF
- RDS(on)
- 11mΩ@10V;21mΩ@10V
- Number
- 1 N-Channel + 1 P-Channel
- Gate Charge(Qg)
- 13.3nC@10V;13nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1V;900mV
- Type
- N-Channel + P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.12 g
Overview
Applications
- Motor drive
Key features
- Halogen-free per IEC 61249-2-21
- Trench power MOSFET
- 100% Rg and UIS tested
- RoHS compliant per directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HM4622A-VB#C19190214VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 50 | ₹61.43 · 50 in stock | View |
 | VBZA8858#C700603VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 63 | ₹61.76 · 63 in stock | View |
 | VBA5410#C7569073VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 4 | ₹84.91 · 4 in stock | View |
 | Si4501BDY-T1-GE3-VB#C22389952VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 18 | ₹58.19 · 18 in stock | View |
 | AP4501AGEM-HF-VB#C7569092VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 20 | ₹61.43 · 20 in stock | View |
