VBsemi ElecDatasheet (PDF)

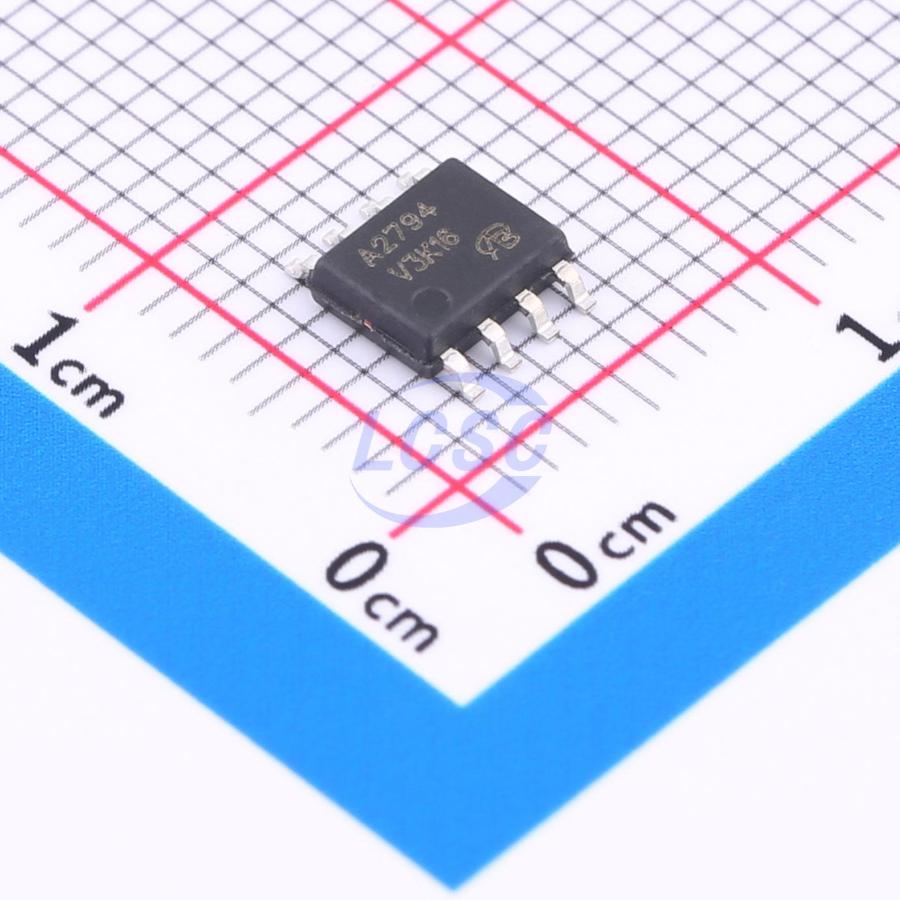

UPA2794AGR-VB
N-Channel+P-Channel 60V 5.3A 3.1W Surface Mount SO-8
SO-8RoHSActive
MOSFET N-CH+P-CH ARR 60V 5.3A SO-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- UPA2794AGR-VB
- Store part #
- C19632183
- Package / case
- SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
49 in stock
#C19632183
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹86.92 | ₹86.92 |
| 10+ | ₹70.56 | ₹705.60 |
| 30+ | ₹62.49 | ₹1,874.70 |
| 100+ | ₹54.41 | ₹5,441.00 |
| 500+ | ₹49.52 | ₹24,760.00 |
| 1,000+ | ₹47.18 | ₹47,180.00 |
1 × ₹86.92
₹86.92
excl. GST
₹102.57 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
UPA2794AGR-VB
₹86.92 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 75pF;95pF
- Current - Continuous Drain(Id)
- 5.3A;4.9A
- Ciss-Input Capacitance
- 665pF;650pF
- Pd - Power Dissipation
- 3.1W
- Reverse Transfer Capacitance (Crss)
- 40pF;60pF
- RDS(on)
- 26mΩ@10V;55mΩ@10V
- Number
- 1 N-Channel + 1 P-Channel
- Gate Charge(Qg)
- 6nC@10V;8nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- N-Channel + P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.106 g
Overview
Applications
- Cold Cathode Fluorescent Lamp (CCFL) inverter
- N-channel MOSFET
- P-channel MOSFET
Key features
- Halogen-free per IEC 61249-2-21
- Trench power MOSFET
- 100% Rg and UIS tested
- RoHS compliant
- Halogen-free version available
