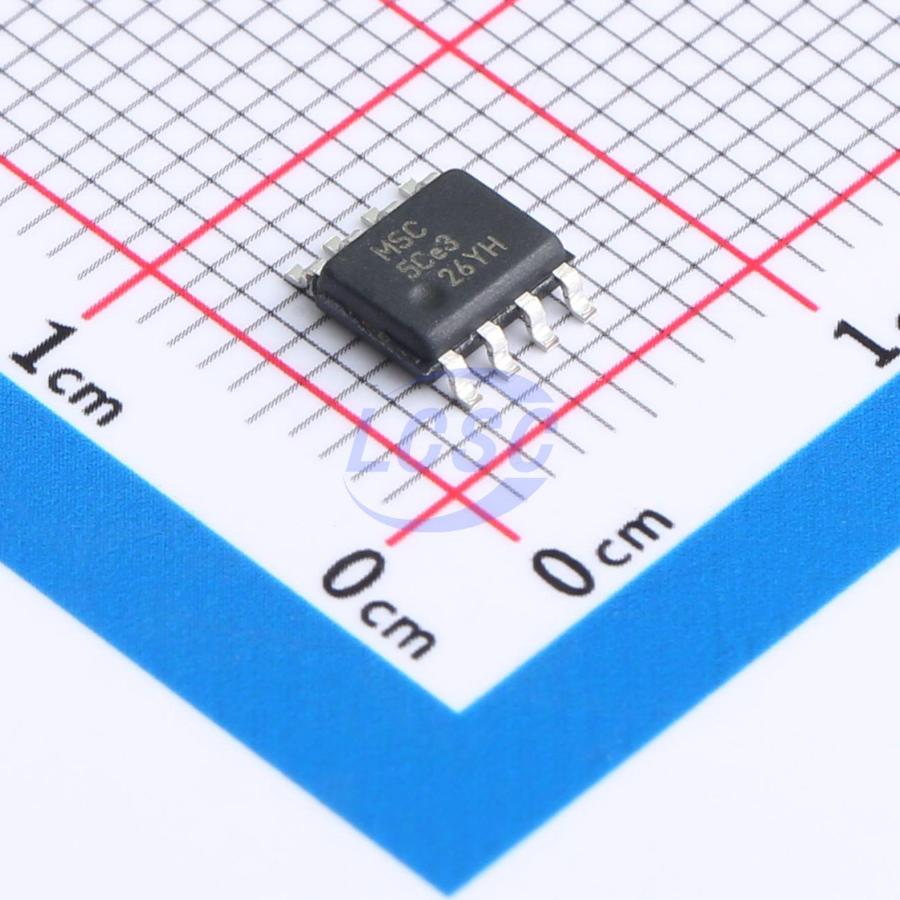

USB50805CE3/TR7
13VC Clamp TVS DIODE SO-8
TVS DIODE 5VWM 13VC SO-8
- Manufacturer
- MICROCHIP
- Manufacturer part #
- USB50805CE3/TR7
- Store part #
- C6797882
- Package / case
- SO-8
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
27 in stock
#C6797882
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹614.96 | ₹614.96 |
| 10+ | ₹547.38 | ₹5,473.80 |
| 30+ | ₹507.17 | ₹15,215.10 |
| 100+ | ₹466.33 | ₹46,633.00 |
| 500+ | ₹447.64 | ₹2,23,820.00 |
| 1,000+ | ₹439.16 | ₹4,39,160.00 |
1 × ₹614.96
₹614.96
excl. GST
₹725.65 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 500 per reel
USB50805CE3/TR7
₹614.96 for 1 + GST
Specifications
- Clamping Voltage
- 13V
- Peak Pulse Power Dissipation (Ppp)
- 500W@8/20us
- Number of Channels
- 2
- Voltage - Breakdown
- 6V
- type
- TVS
- Reverse Leakage Current (Ir)
- 40uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.264 g
Overview
This USB50803C(-A) – USB50824C(-A) family of Transient Voltage Suppressor (TVS) arrays comes in an SO-8 package and can provide protection to 2 bidirectional data or interface lines. It is designed for use in applications where very low capacitance protection is required at the board level from voltage transients caused by electrostatic discharge (ESD) as defined in IEC 61000-4-2, electrical fast transients (EFT) per IEC 61000-4-4 and secondary effects of lightning. These TVS arrays have a peak power rating of 500 watts for an 8/20 μs pulse. This array is suitable for protection of sensitive circuitry such as TTL, CMOS DRAM’s, SRAM’s, HCMOS, HSIC microprocessors, Universal Serial Bus (USB) and I/O transceivers.
Applications
- EIA-RS485 data rates: 5 Mbs
- 10/100/1000 Base T Ethernet
- USB data rate: 900 Mbs
Key features
- Provides electrically isolated protection for up to 2 bidirectional lines.
- Surge protection per IEC 61000-4-2 and IEC 61000-4-4.
- UL 94V-0 flammability classification.
- Ultra low capacitance; 3 pF per line pair.
- Ultra low leakage current.
- RoHS compliant versions available.
