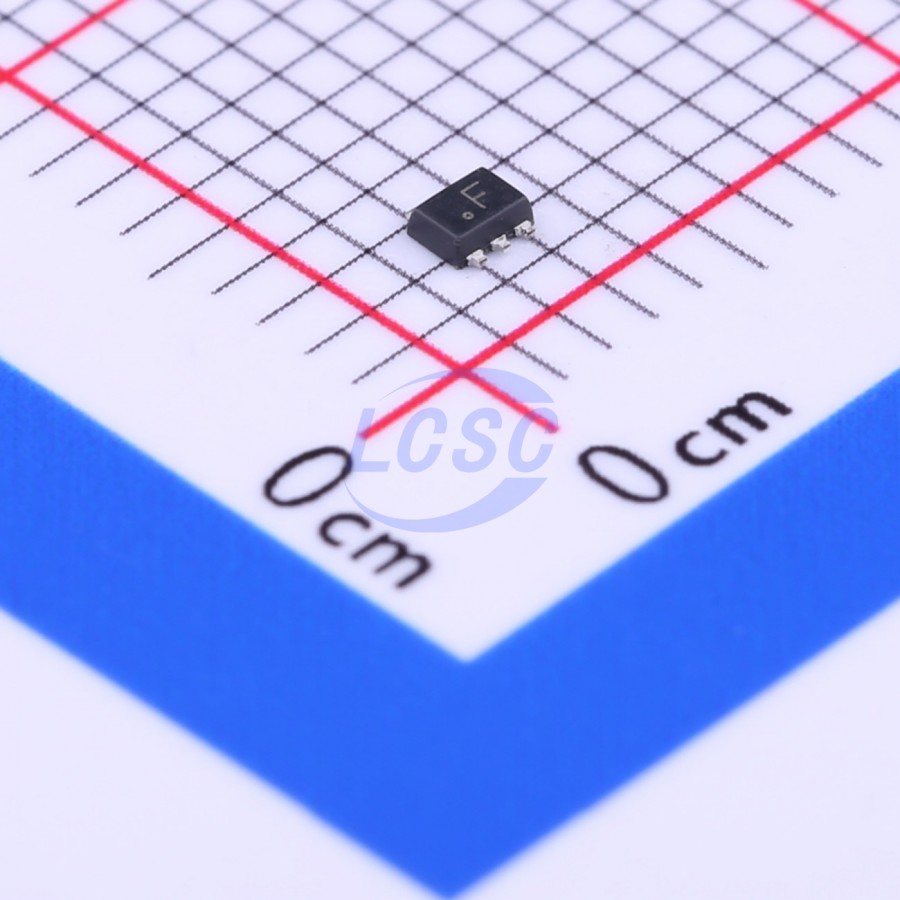

USBLC6-2P6
17VC Clamp 5A@8/20us Ipp ESD DIODE SOT-666-6
ESD DIODE 5.25VWM 17VC SOT-666-6
- Manufacturer
- ST
- Manufacturer part #
- USBLC6-2P6
- Store part #
- C15999
- Package / case
- SOT-666-6
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,680 in stock
#C15999
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹32.96 | ₹164.80 |
| 50+ | ₹25.35 | ₹1,267.50 |
| 150+ | ₹21.63 | ₹3,244.50 |
| 500+ | ₹18.32 | ₹9,160.00 |
| 3,000+ | ₹16.68 | ₹50,040.00 |
| 6,000+ | ₹16.13 | ₹96,780.00 |
5 × ₹32.96
₹164.80
excl. GST
₹194.46 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
USBLC6-2P6
₹164.80 for 5 + GST
Specifications
- Clamping Voltage
- 17V
- Operating Temperature
- -40℃~+125℃
- Peak Pulse Current (Ipp)
- 5A@8/20us
- Number of Channels
- 2
- Voltage - Breakdown
- 6V
- type
- ESD
- Reverse Leakage Current (Ir)
- 150nA
- Polarity
- Unidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 5.25V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.048 g
Overview
The USBLC6-2SC6 and USBLC6-2P6 are monolithic application specific devices dedicated to ESD protection of high speed interfaces, such as USB 2.0, Ethernet links and video lines. The very low line capacitance secures a high level of signal integrity without compromising in protecting sensitive chips against the most stringently characterized ESD strikes.
Applications
- USB 2.0 ports up to 480 Mb/s (high speed)
- Compatible with USB 1.1 low and full speed
- Ethernet port: 10/100 Mb/s
- SIM card protection
- Video line protection
- Portable electronics
Key features
- 2 data-line protection
- Protects VBUS
- Very low capacitance: 3.5 pF max.
- Very low leakage current: 150 nA max.
- SOT-666 and SOT23-6L packages RoHS compliant
- Fast response time
- Consistent D+/D- signal balance: Very low capacitance matching tolerance 1/O to GND = 0.015 pF
- Compliant with USB 2.0 requirements
- IEC 61000-4-2 level 4: 15 kV (air discharge) 8 kV (contact discharge)
