TECH PUBLICDatasheet (PDF)

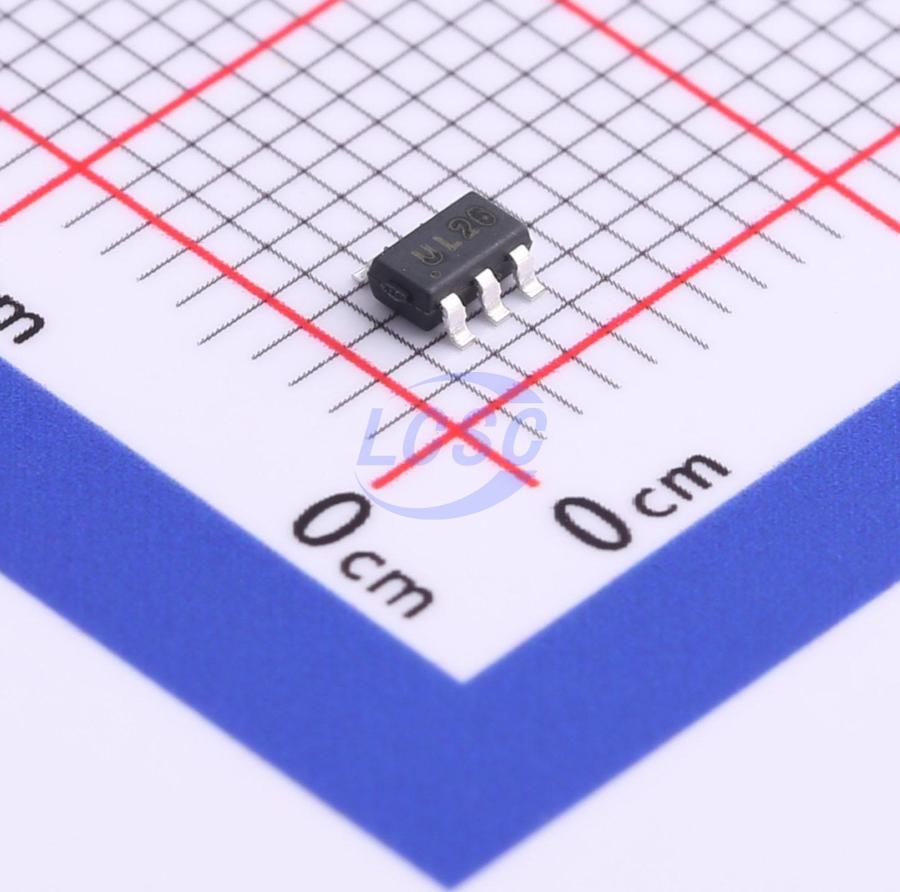

USBLC6-2SC6
12VC Clamp 6A Ipp ESD DIODE SOT-23-6
PopularSOT-23-6RoHSActive
ESD DIODE 5VWM 12VC SOT-23-6
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- USBLC6-2SC6
- Store part #
- C2827654
- Package / case
- SOT-23-6
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
86,840 in stock
#C2827654
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.95 | ₹59.50 |
| 100+ | ₹4.74 | ₹474.00 |
| 300+ | ₹4.13 | ₹1,239.00 |
| 3,000+ | ₹3.61 | ₹10,830.00 |
| 6,000+ | ₹3.44 | ₹20,640.00 |
| 9,000+ | ₹3.32 | ₹29,880.00 |
10 × ₹5.95
₹59.50
excl. GST
₹70.21 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
USBLC6-2SC6
₹59.50 for 10 + GST
Specifications
- Clamping Voltage
- 12V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 6A
- Peak Pulse Power Dissipation (Ppp)
- 150W
- Number of Channels
- 2
- Voltage - Breakdown
- 6V
- type
- ESD
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 80nA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.041 g
Overview
Applications
- USB 2.0 power and data line
- Set-top box and digital TV
- Digital video interface (DVI)
- Notebook Computers
- SIM Ports
- 10/100 Ethernet
Key features
- Ultra low leakage: nA level
- Operating voltage: 5V
- Low clamping voltage
- Complies with following standards:
- IEC 61000-4-2 (ESD) immunity test Air discharge: ±30 kV Contact discharge: ±30 kV
- IEC61000-4-4 (EFT) 40A(5/50ns)
- IEC61000-4-5 (Lightning) 6A (8/20μs)
- RoHS Compliant
