VBsemi ElecDatasheet (PDF)

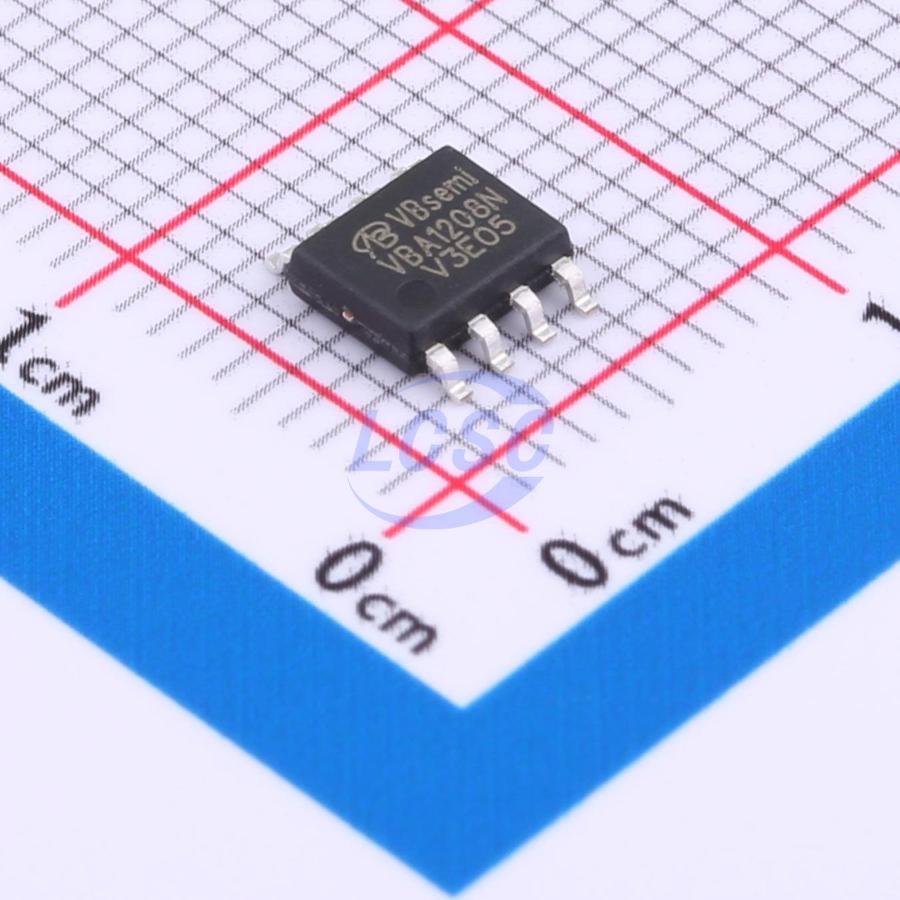

VBA1208N
N-Channel 200V 3.35A 1.56W Surface Mount SO-8
SO-8RoHSActive
MOSFET N-CH 200V 3.35A SO-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- VBA1208N
- Store part #
- C7429140
- Package / case
- SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
56 in stock
#C7429140
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹175.19 | ₹175.19 |
| 10+ | ₹147.25 | ₹1,472.50 |
| 30+ | ₹131.92 | ₹3,957.60 |
| 100+ | ₹114.69 | ₹11,469.00 |
| 500+ | ₹97.47 | ₹48,735.00 |
| 1,000+ | ₹94.10 | ₹94,100.00 |
1 × ₹175.19
₹175.19
excl. GST
₹206.72 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
VBA1208N
₹175.19 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 200V
- Current - Continuous Drain(Id)
- 3.35A
- Ciss-Input Capacitance
- 1.5nF
- Pd - Power Dissipation
- 1.56W
- RDS(on)
- 65mΩ@10V;72mΩ@6V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 34nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.142 g
Overview
Applications
- Primary-side switch
Key features
- Compliant with halogen-free requirements as defined by IEC 61249-2-21
- Trench power MOSFET
- Compliant with RoHS Directive 2002/95/EC
- Available in N-channel MOSFET
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FDS2672-NL-VB#C19188181VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 15 | ₹229.49 · 15 in stock | View |
 | IRF7820TRPBF-VB#C7429020VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 27 | ₹217.91 · 27 in stock | View |
 | SI4490DY-T1-E3-VB#C7568819VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 3 | ₹206.37 · 3 in stock | View |
 | IRF7492TRPBF-VB#C7524910VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | On request | ₹164.36 · 0 in stock | View |
| HAT2179RJ-VB#C41370262VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | On request | ₹91.49 · 0 in stock | View | |
