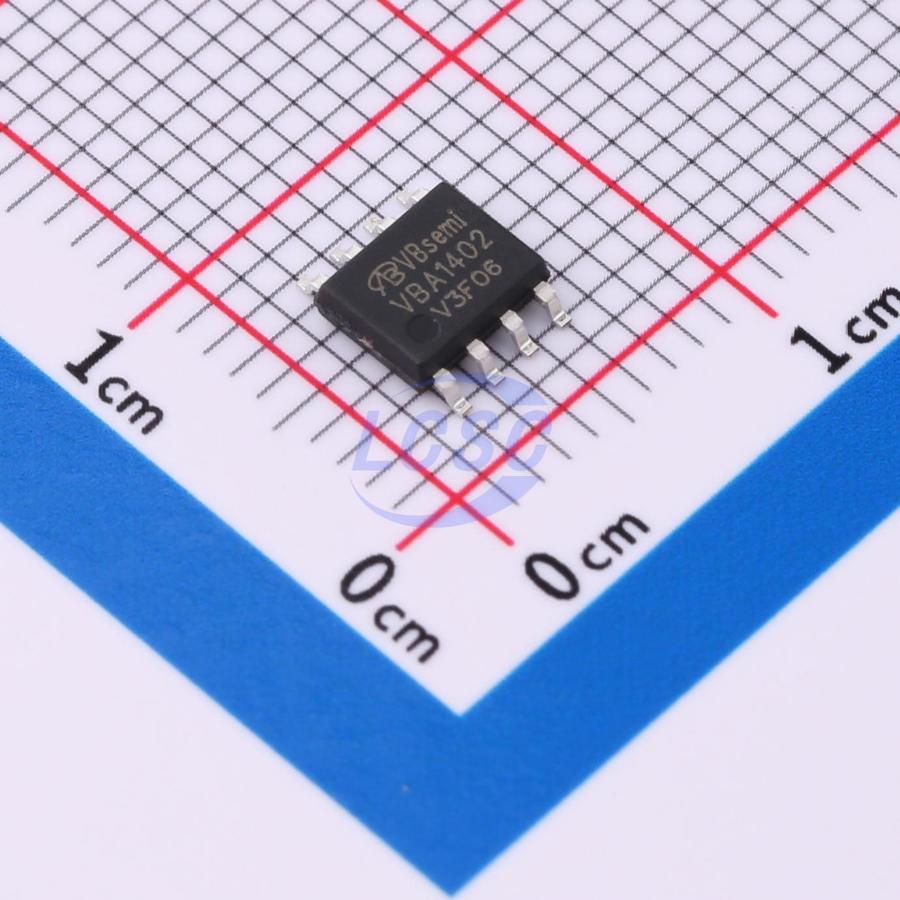

VBA1402
N-Channel 40V 36A 7.8W Surface Mount SO-8
SO-8RoHSActive
MOSFET N-CH 40V 36A SO-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- VBA1402
- Store part #
- C7429141
- Package / case
- SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
17 in stock
#C7429141
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹121.69 | ₹121.69 |
| 10+ | ₹101.05 | ₹1,010.50 |
| 30+ | ₹90.63 | ₹2,718.90 |
| 100+ | ₹80.41 | ₹8,041.00 |
| 500+ | ₹58.46 | ₹29,230.00 |
| 1,000+ | ₹55.42 | ₹55,420.00 |
1 × ₹121.69
₹121.69
excl. GST
₹143.59 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
VBA1402
₹121.69 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 40V
- Current - Continuous Drain(Id)
- 36A
- Ciss-Input Capacitance
- 4.23nF
- Pd - Power Dissipation
- 7.8W
- Reverse Transfer Capacitance (Crss)
- 220pF
- RDS(on)
- 2mΩ@10V;3mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 32.5nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1V;2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.139 g
Overview
Applications
- Point-of-Load (POL) power supply
- Synchronous rectification
Key features
- Compliant with halogen-free standard as defined by IEC 61249-2-21
- Trench power MOSFET
- 100% Rg and UIS tested
- Compliant with RoHS Directive 2002/95/EC
