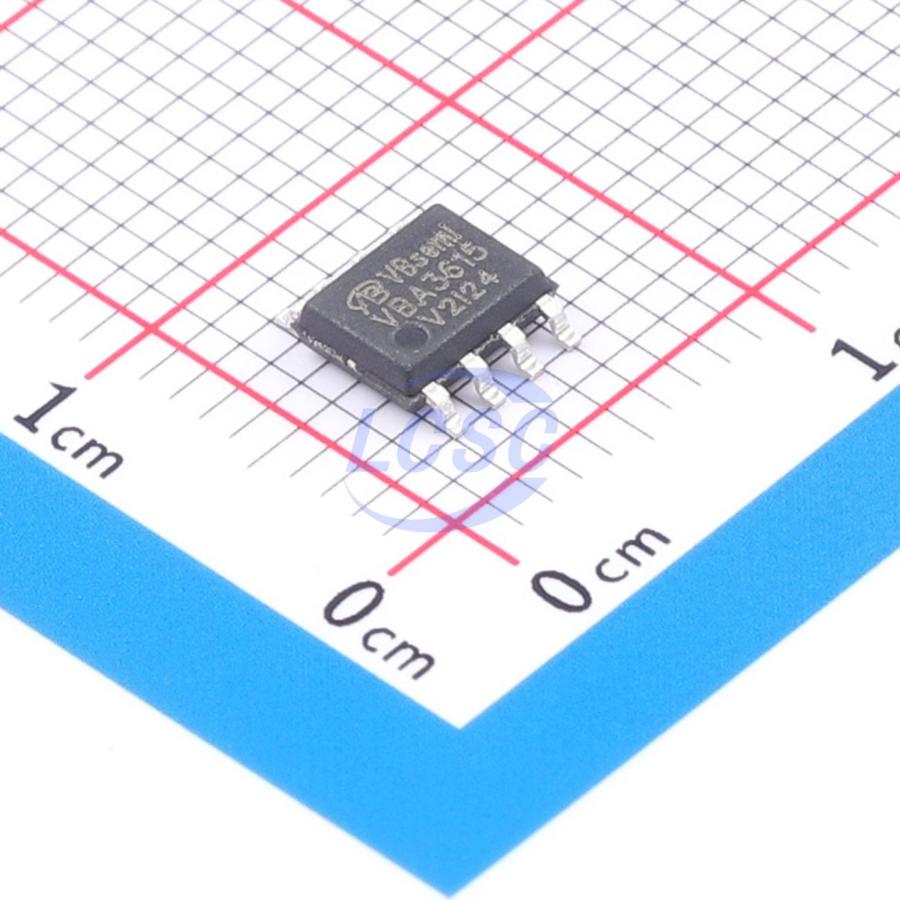

VBA3615
N-Channel 60V 10A 2.7W Surface Mount SO-8
SO-8RoHSActive
MOSFET N-CH 60V 10A SO-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- VBA3615
- Store part #
- C7429144
- Package / case
- SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9 in stock
#C7429144
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹147.25 | ₹147.25 |
| 10+ | ₹120.58 | ₹1,205.80 |
| 30+ | ₹107.35 | ₹3,220.50 |
| 100+ | ₹94.10 | ₹9,410.00 |
| 500+ | ₹79.62 | ₹39,810.00 |
| 1,000+ | ₹75.41 | ₹75,410.00 |
1 × ₹147.25
₹147.25
excl. GST
₹173.76 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
VBA3615
₹147.25 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 217pF
- Current - Continuous Drain(Id)
- 10A
- Ciss-Input Capacitance
- 586pF
- Pd - Power Dissipation
- 2.7W
- Reverse Transfer Capacitance (Crss)
- 155pF
- RDS(on)
- 12mΩ@10V;15mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 15nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.08 g
Overview
Applications
- Set-top box - Low-current DC/DC converter
Key features
- Halogen-free per IEC 61249-2-21
- Trench power MOSFET
- 100% tested for single pulse avalanche ruggedness (UIS)
- 100% Rq tested
- RoHS compliant per directive 2002/95/EC
