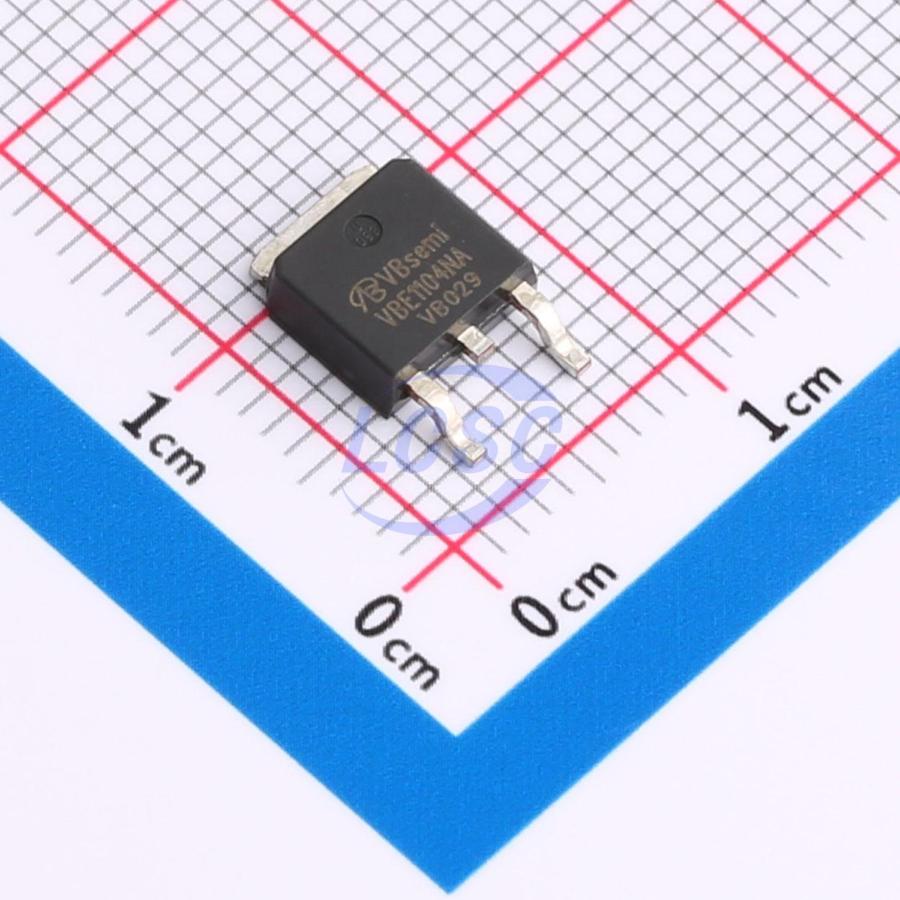

VBE1104NA
N-Channel 100V 33A 107W Surface Mount TO-252-2
TO-252-2RoHSActive
MOSFET N-CH 100V 33A TO-252-2
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- VBE1104NA
- Store part #
- C967488
- Package / case
- TO-252-2
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50 in stock
#C967488
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹114.10 | ₹114.10 |
| 10+ | ₹93.35 | ₹933.50 |
| 30+ | ₹83.20 | ₹2,496.00 |
| 100+ | ₹72.83 | ₹7,283.00 |
| 500+ | ₹66.77 | ₹33,385.00 |
| 1,000+ | ₹63.76 | ₹63,760.00 |
1 × ₹114.10
₹114.10
excl. GST
₹134.64 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
VBE1104NA
₹114.10 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Current - Continuous Drain(Id)
- 33A
- Output Capacitance(Coss)
- 290pF
- Ciss-Input Capacitance
- 2.45nF
- Pd - Power Dissipation
- 107W
- Reverse Transfer Capacitance (Crss)
- 120pF
- RDS(on)
- 35mΩ@10V;37mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 35nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.416 g
Overview
Applications
- Laptop CPU core
- High-end switching
Key features
- Trench power MOSFET
- Junction temperature 175 °C
- Low thermal resistance package
- RoHS compliant
