VBsemi ElecDatasheet (PDF)

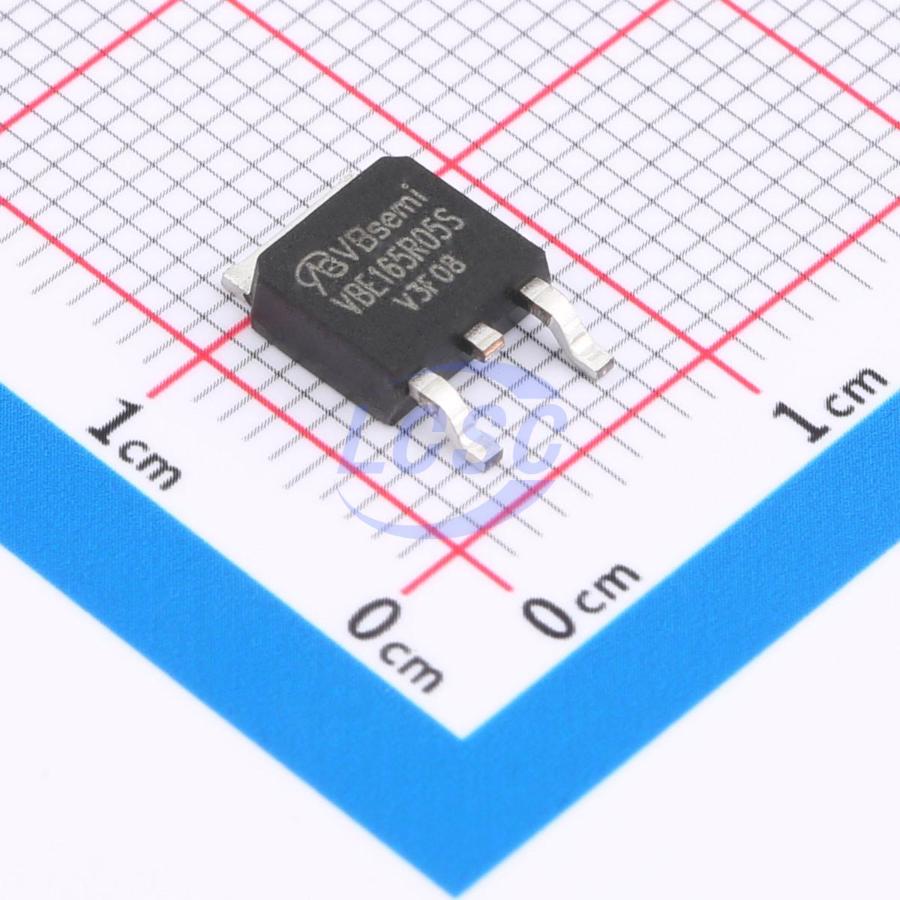

VBE165R05S
N-Channel 650V 4A 205W Surface Mount TO-252
TO-252RoHSActive
MOSFET N-CH 650V 4A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- VBE165R05S
- Store part #
- C7429150
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C7429150
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹128.98 | ₹128.98 |
| 10+ | ₹105.87 | ₹1,058.70 |
| 30+ | ₹94.10 | ₹2,823.00 |
| 100+ | ₹82.77 | ₹8,277.00 |
| 500+ | ₹68.90 | ₹34,450.00 |
| 1,000+ | ₹65.54 | ₹65,540.00 |
1 × ₹128.98
₹128.98
excl. GST
₹152.20 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
VBE165R05S
₹128.98 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 650V
- Output Capacitance(Coss)
- 75pF
- Current - Continuous Drain(Id)
- 4A
- Ciss-Input Capacitance
- 320pF
- Pd - Power Dissipation
- 205W
- Reverse Transfer Capacitance (Crss)
- 4pF
- RDS(on)
- 950mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 15nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.383 g
Overview
Key features
- Low Gate Charge Qg Results in Simple Drive Requirement
- Improved Gate, Avalanche and Dynamic dV/dt Ruggedness
- Fully Characterized Capacitance and Avalanche Voltage and Current
- Compliant to RoHS directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | KF6N60D-VB#C18795052VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 39 | ₹125.17 · 39 in stock | View |
 | STD5NM60T4-VB#C19188226VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 50 | ₹156.89 · 50 in stock | View |
 | SPD03N60C3-VB#C19188270VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 5 | ₹118.55 · 5 in stock | View |
 | STD5NK40ZT4-E-VB#C19711188VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 45 | ₹125.17 · 45 in stock | View |
 | IRFR825TRPBF-VB#C19711333VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 15 | ₹123.73 · 15 in stock | View |
