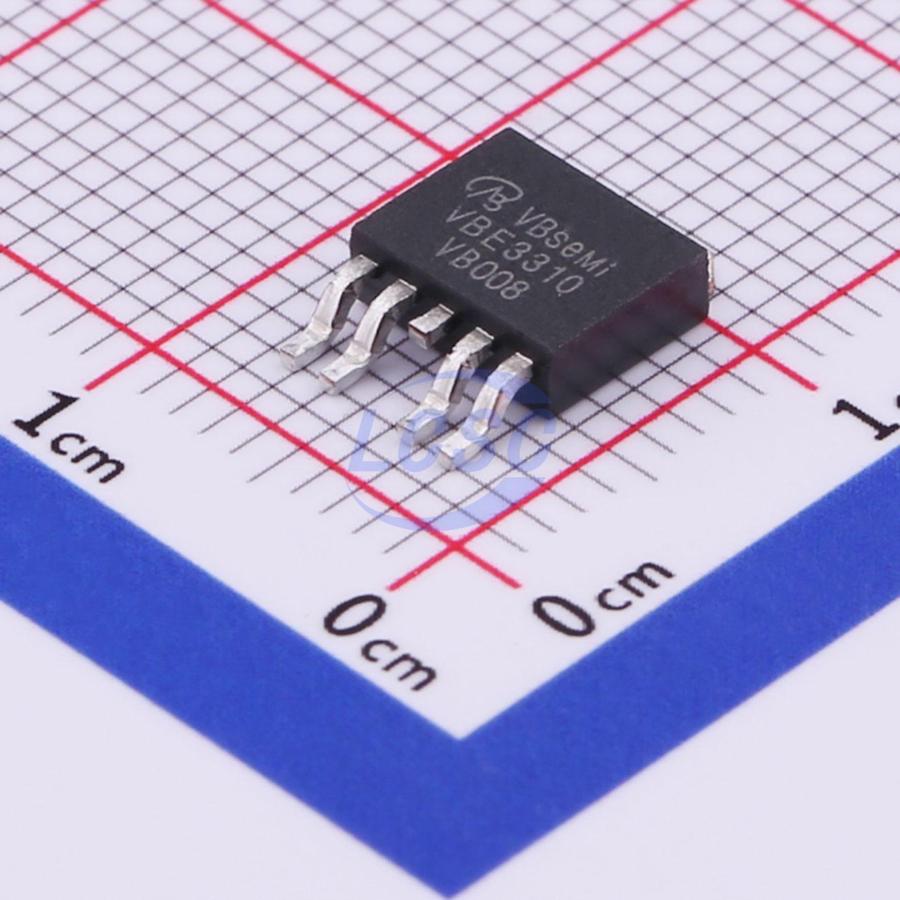

VBE3310
N-Channel Array 30V 32A 250W Surface Mount TO-252-4
TO-252-4RoHSActive
MOSFET N-CH ARR 30V 32A TO-252-4
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- VBE3310
- Store part #
- C516943
- Package / case
- TO-252-4
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C516943
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹90.96 | ₹90.96 |
| 10+ | ₹73.73 | ₹737.30 |
| 30+ | ₹65.12 | ₹1,953.60 |
| 100+ | ₹56.72 | ₹5,672.00 |
| 500+ | ₹48.74 | ₹24,370.00 |
| 1,000+ | ₹46.01 | ₹46,010.00 |
1 × ₹90.96
₹90.96
excl. GST
₹107.33 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
VBE3310
₹90.96 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 520pF
- Current - Continuous Drain(Id)
- 32A
- Ciss-Input Capacitance
- 1.2nF
- Pd - Power Dissipation
- 250W
- Reverse Transfer Capacitance (Crss)
- 140pF
- RDS(on)
- 9mΩ@10V;15mΩ@4.5V
- Number
- 2 N-Channel
- Gate Charge(Qg)
- 171nC@10V;81nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.257 g
Overview
Applications
- OR gate
- Server
- DC/DC
Key features
- Trench Power MOSFET
- 100% Rg and UIS tested
- RoHS compliant per EU Directive 2011/65/EU
