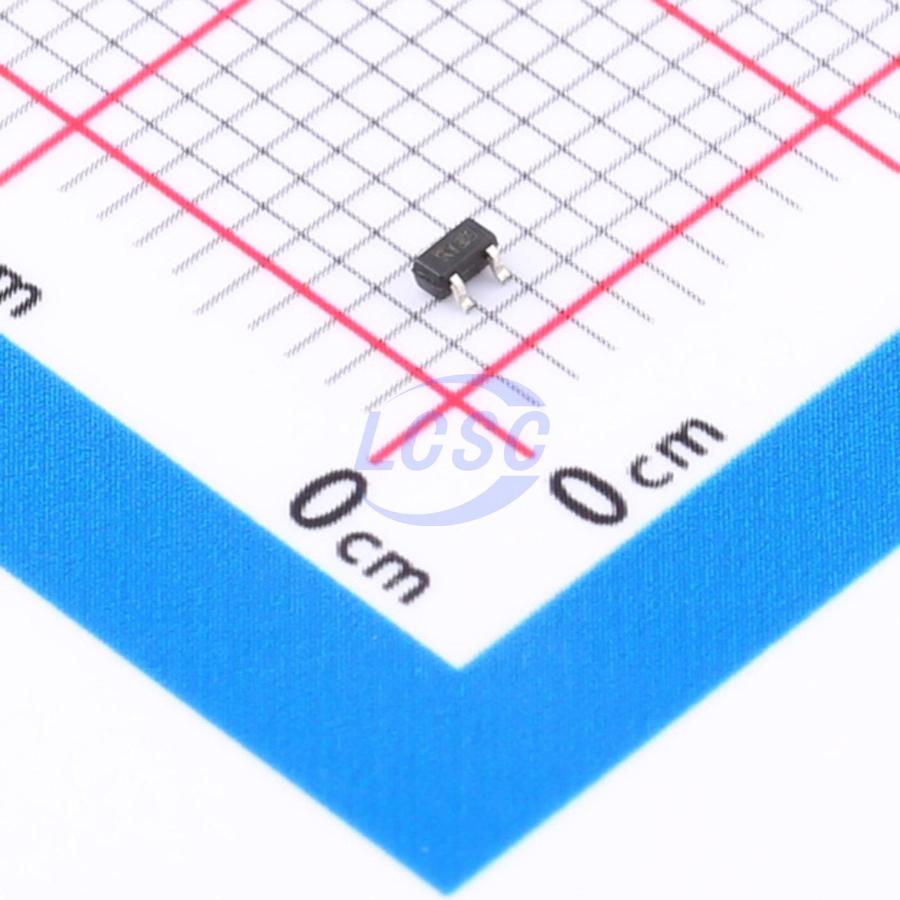

VBK1230N
N-Channel 20V 1.5A 0.5W Surface Mount SOT-323-3
SOT-323-3RoHSActive
MOSFET N-CH 20V 1.5A SOT-323-3
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- VBK1230N
- Store part #
- C967465
- Package / case
- SOT-323-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
30 in stock
#C967465
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.83 | ₹74.15 |
| 50+ | ₹11.80 | ₹590.00 |
| 150+ | ₹10.29 | ₹1,543.50 |
| 500+ | ₹9.16 | ₹4,580.00 |
| 3,000+ | ₹8.26 | ₹24,780.00 |
| 6,000+ | ₹7.79 | ₹46,740.00 |
5 × ₹14.83
₹74.15
excl. GST
₹87.50 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
VBK1230N
₹74.15 for 5 + GST
Specifications
- Drain to Source Voltage
- 20V
- Current - Continuous Drain(Id)
- 1.5A
- Output Capacitance(Coss)
- 105pF
- Ciss-Input Capacitance
- 250pF
- Pd - Power Dissipation
- 500mW
- Reverse Transfer Capacitance (Crss)
- 55pF
- RDS(on)
- 210mΩ@10V
- Number
- 1 N-channel
- Gate Threshold Voltage (Vgs(th))
- 1.2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.064 g
Overview
Applications
- DC/DC converter
- Load switch for portable applications
Key features
- Compliant with halogen-free requirements as defined by IEC 61249-2-21
- Trench power MOSFET
- 100% gate resistance (Rg) tested
- Compliant with RoHS Directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SSM3K09FU-VB#C19188178VBsemi Elec · SOT-323(SC-70) | VBsemi Elec | SOT-323(SC-70) | 10 | ₹15.16 · 10 in stock | View |
 | SSM3K127TU-VB#C19188179VBsemi Elec · SOT-323(SC-70) | VBsemi Elec | SOT-323(SC-70) | 90 | ₹15.16 · 90 in stock | View |
 | MCH3401-TL-VB#C19188214VBsemi Elec · SOT-323(SC-70) | VBsemi Elec | SOT-323(SC-70) | 45 | ₹17.34 · 45 in stock | View |
 | MMBF2201NT1G-VB#C19188215VBsemi Elec · SOT-323(SC-70) | VBsemi Elec | SOT-323(SC-70) | 130 | ₹14.95 · 130 in stock | View |
 | HM2302KR-VB#C19190229VBsemi Elec · SOT-323(SC-70) | VBsemi Elec | SOT-323(SC-70) | 100 | ₹15.16 · 100 in stock | View |
