VBsemi ElecDatasheet (PDF)

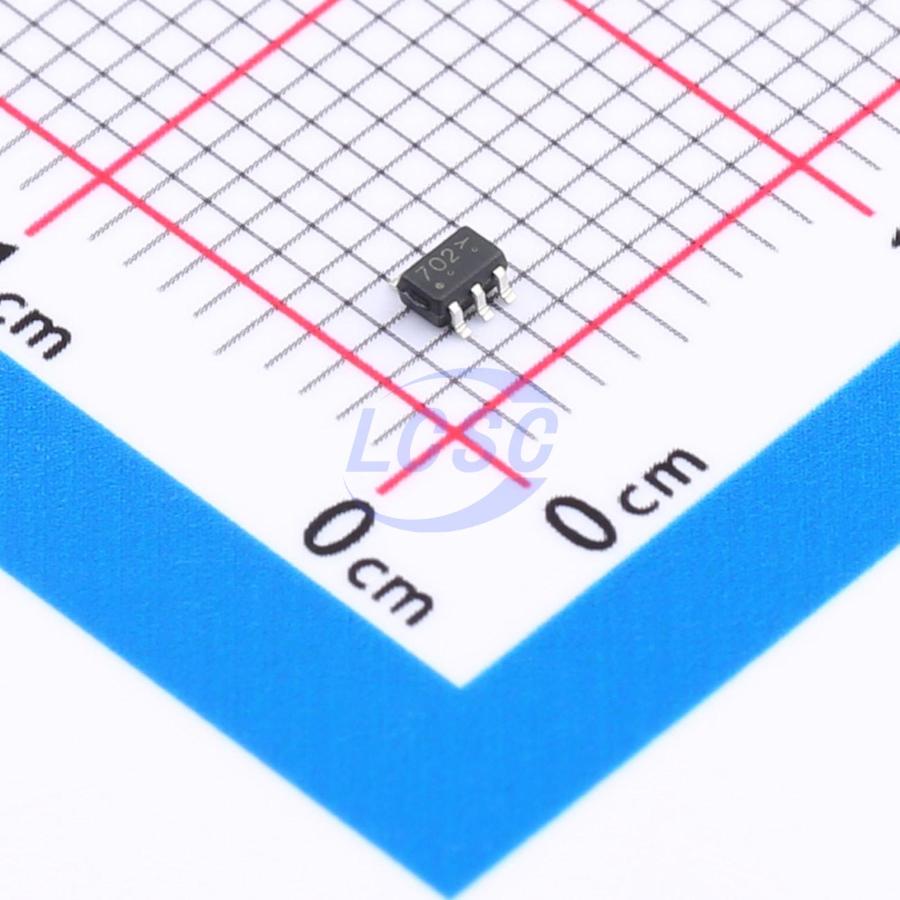

VBK362KS
N-Channel 60V 350mA 0.35W Surface Mount SC-70-6
SC-70-6RoHSActive
MOSFET N-CH 60V 350mA SC-70-6
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- VBK362KS
- Store part #
- C42412590
- Package / case
- SC-70-6
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C42412590
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.70 | ₹58.50 |
| 50+ | ₹9.33 | ₹466.50 |
| 150+ | ₹8.14 | ₹1,221.00 |
| 500+ | ₹7.25 | ₹3,625.00 |
| 3,000+ | ₹6.54 | ₹19,620.00 |
| 6,000+ | ₹6.19 | ₹37,140.00 |
5 × ₹11.70
₹58.50
excl. GST
₹69.03 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
VBK362KS
₹58.50 for 5 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 350mA
- Output Capacitance(Coss)
- 6pF
- Ciss-Input Capacitance
- 30pF
- Pd - Power Dissipation
- 350mW
- Reverse Transfer Capacitance (Crss)
- 2.5pF
- RDS(on)
- 1.8Ω@10V
- Number
- 2 N-Channel
- Gate Charge(Qg)
- 800pC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.012 g
Overview
Applications
- Direct Logic-Level Interface: TTL/CMOS
- Drivers: Relays, Solenoids, Lamps, Hammers, Display, Memories, Transistors, etc.
- Battery Operated Systems
- Solid-State Relays
Key features
- Halogen-free According to IEC 61249-2-21 Definition
- Low On-Resistance: 1.8 Ω
- Low Threshold: 2 V (typ.)
- Low Input Capacitance: 30 pF
- Fast Switching Speed: 25 ns
- Low Input and Output Leakage
- Trench Power MOSFET Compliant to RoHS Directive 2002/95/EC
