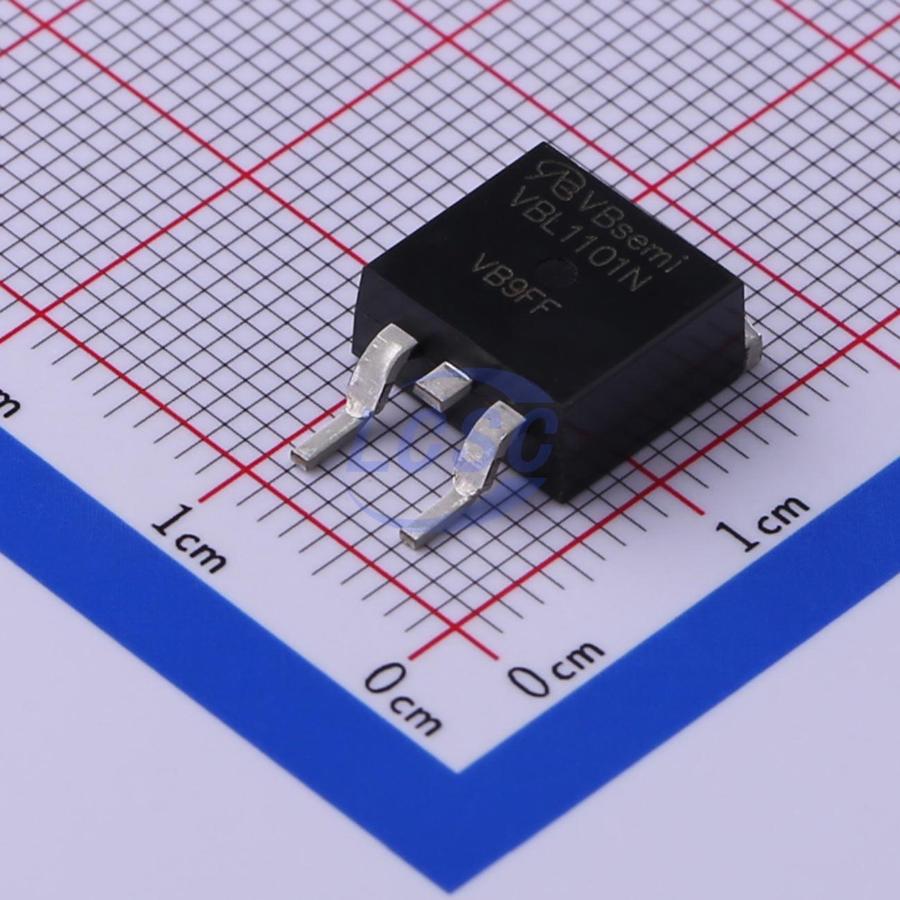

VBL1101N
N-Channel 100V 100A 250W Surface Mount TO-263(D2PAK)
TO-263(D2PAK)RoHSActive
MOSFET N-CH 100V 100A TO-263(D2PAK)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- VBL1101N
- Store part #
- C480981
- Package / case
- TO-263(D2PAK)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C480981
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹172.12 | ₹172.12 |
| 10+ | ₹143.57 | ₹1,435.70 |
| 30+ | ₹127.91 | ₹3,837.30 |
| 100+ | ₹110.10 | ₹11,010.00 |
| 500+ | ₹102.37 | ₹51,185.00 |
| 800+ | ₹98.72 | ₹78,976.00 |
1 × ₹172.12
₹172.12
excl. GST
₹203.10 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 800 per reel
VBL1101N
₹172.12 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Output Capacitance(Coss)
- 665pF
- Current - Continuous Drain(Id)
- 100A
- Ciss-Input Capacitance
- 6.55nF
- Pd - Power Dissipation
- 250W
- Reverse Transfer Capacitance (Crss)
- 265pF
- RDS(on)
- 10mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 105nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 800 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.75 g
Overview
Key features
- Trench Power MOSFET
- Maximum junction temperature 175 °C
- RoHS compliant per Directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AUIRF3710ZSTRR-VB#C19188147VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 3 | ₹151.46 · 3 in stock | View |
 | H7N1002LS-VB#C19188257VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 14 | ₹174.28 · 14 in stock | View |
 | AOB296L-VB#C19626676VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 20 | ₹171.12 · 20 in stock | View |
 | BUK9620-100A-VB#C19626719VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 20 | ₹171.12 · 20 in stock | View |
 | BUK9620-100B-VB#C19626720VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 20 | ₹141.59 · 20 in stock | View |
