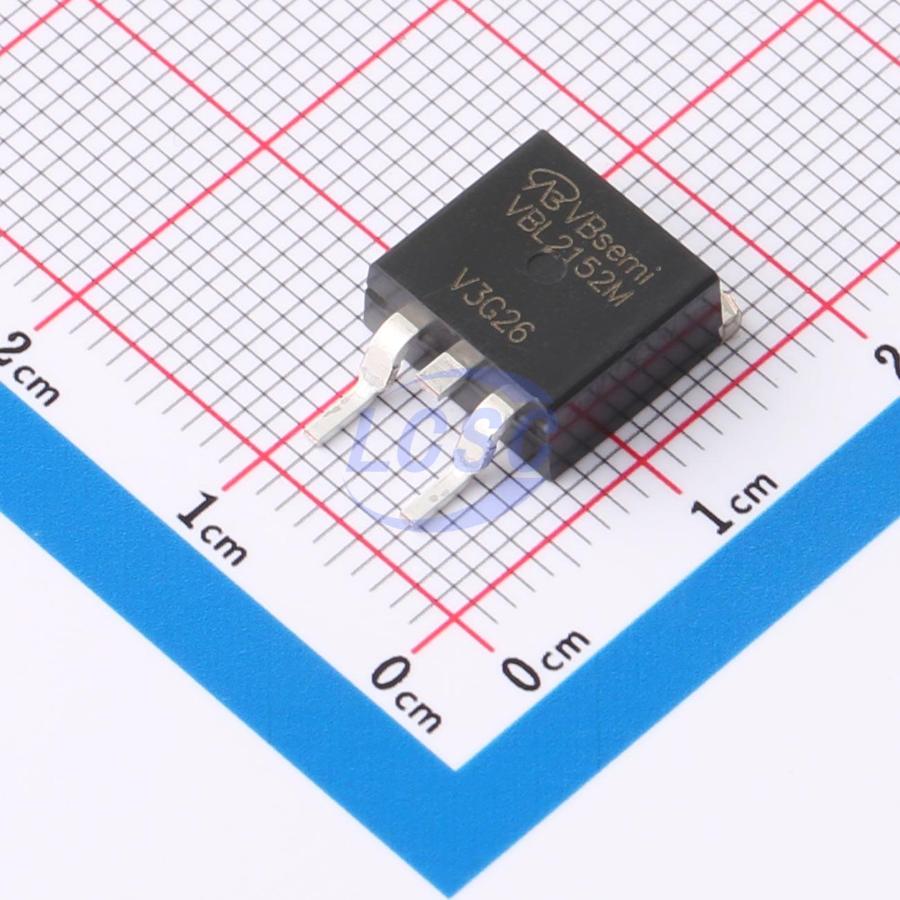

VBL2152M
P-Channel 150V 20A 59.7W Surface Mount TO-263(D2PAK)
TO-263(D2PAK)ROHS CompliantActive
MOSFET P-CH 150V 20A TO-263(D2PAK)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- VBL2152M
- Store part #
- C7541188
- Package / case
- TO-263(D2PAK)
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8 in stock
#C7541188
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹201.03 | ₹201.03 |
| 10+ | ₹167.84 | ₹1,678.40 |
| 50+ | ₹149.57 | ₹7,478.50 |
| 100+ | ₹128.77 | ₹12,877.00 |
| 500+ | ₹119.52 | ₹59,760.00 |
| 1,000+ | ₹115.33 | ₹1,15,330.00 |
1 × ₹201.03
₹201.03
excl. GST
₹237.22 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
VBL2152M
₹201.03 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 150V
- Output Capacitance(Coss)
- 330pF
- Current - Continuous Drain(Id)
- 20A
- Ciss-Input Capacitance
- 2.5nF
- Pd - Power Dissipation
- 59.7W
- Reverse Transfer Capacitance (Crss)
- 280pF
- RDS(on)
- 150mΩ@10V;170mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 67nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.24 g
Overview
Applications
- Power Switch - Load Switch for High-Current Applications - DC/DC Converter
Key features
- Halogen-free per IEC 61249-2-21
- Trench gate power MOSFET
- 100% Rg and UIS tested
- RoHS compliant per directive 2002/95/EC
