VBsemi ElecDatasheet (PDF)

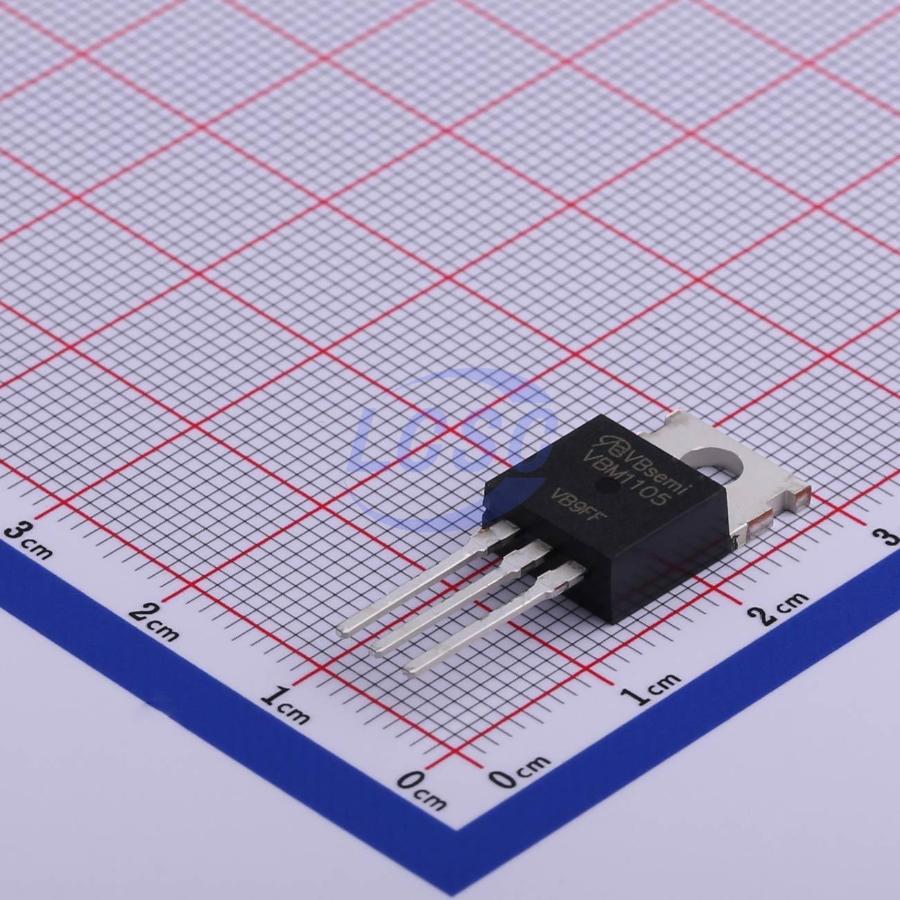

VBM1105
N-Channel 100V 120A Through Hole ITO-220AB-3
ITO-220AB-3RoHSActive
MOSFET N-CH 100V 120A ITO-220AB-3
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- VBM1105
- Store part #
- C480999
- Package / case
- ITO-220AB-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3 in stock
#C480999
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹217.29 | ₹217.29 |
| 10+ | ₹185.37 | ₹1,853.70 |
| 50+ | ₹165.39 | ₹8,269.50 |
| 100+ | ₹144.79 | ₹14,479.00 |
| 500+ | ₹135.51 | ₹67,755.00 |
| 1,000+ | ₹131.61 | ₹1,31,610.00 |
1 × ₹217.29
₹217.29
excl. GST
₹256.40 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
VBM1105
₹217.29 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Output Capacitance(Coss)
- 2.025nF
- Current - Continuous Drain(Id)
- 120A
- Ciss-Input Capacitance
- 10nF
- Reverse Transfer Capacitance (Crss)
- 165pF
- RDS(on)
- 5mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 76nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.77 g
Overview
Key features
- Lightning Power MOSFET
- Maximum junction temperature 175 °C
- 100% Rg and UIS tested
- Material category: see RoHS for compliance definition
- Standards compliant
- N-channel MOSFET
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TK100A10N1-VB#C18457628VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 5 | ₹227.07 · 5 in stock | View |
 | IRFI4410ZPBF-VB#C22389315VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 10 | ₹211.94 · 10 in stock | View |
 | TK3R2A10PL-VB#C18457629VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 91 | ₹221.62 · 91 in stock | View |
 | VBMB1105#C18457630VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 50 | ₹219.26 · 50 in stock | View |
 | STF100N10F7-VB#C18457627VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 18 | ₹275.61 · 18 in stock | View |
