VBsemi ElecDatasheet (PDF)

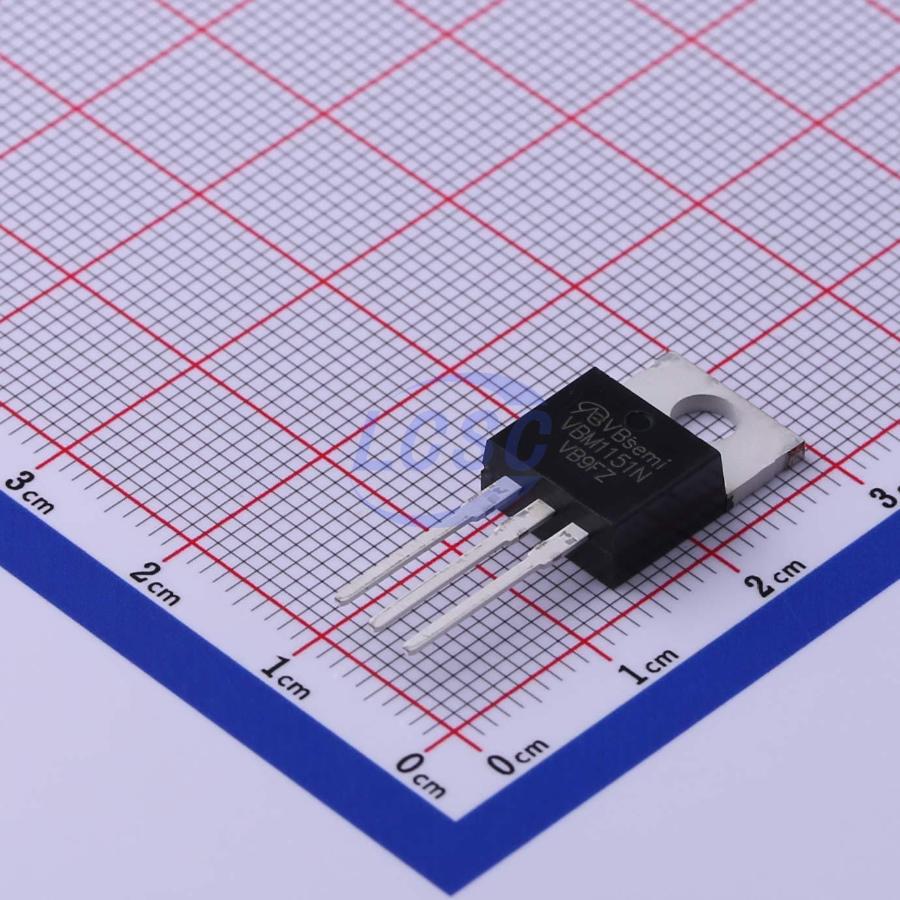

VBM1151N
N-Channel 150V 100A Through Hole ITO-220AB-3
ITO-220AB-3RoHSActive
MOSFET N-CH 150V 100A ITO-220AB-3
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- VBM1151N
- Store part #
- C481000
- Package / case
- ITO-220AB-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7 in stock
#C481000
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹315.22 | ₹315.22 |
| 10+ | ₹268.93 | ₹2,689.30 |
| 50+ | ₹239.82 | ₹11,991.00 |
| 100+ | ₹210.08 | ₹21,008.00 |
| 500+ | ₹196.68 | ₹98,340.00 |
| 1,000+ | ₹190.82 | ₹1,90,820.00 |
1 × ₹315.22
₹315.22
excl. GST
₹371.96 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
VBM1151N
₹315.22 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 150V
- Output Capacitance(Coss)
- 535pF
- Current - Continuous Drain(Id)
- 100A
- Ciss-Input Capacitance
- 3.425nF
- Reverse Transfer Capacitance (Crss)
- 26pF
- RDS(on)
- 8.5mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 63nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.87 g
Overview
Applications
- Power Supplies
- UPS
- AC/DC Switching Power Supplies
- Lighting
- Synchronous Rectification
- DC/DC Converters
- Motor Drive Switches
- DC/AC Inverters
- Solar Micro-Inverters
- Class D Audio Amplifiers
Key features
- Avalanche Power MOSFET
- Maximum junction temperature 175 °C
- 100% Rg and UIS tested
- RoHS compliant
