VBsemi ElecDatasheet (PDF)

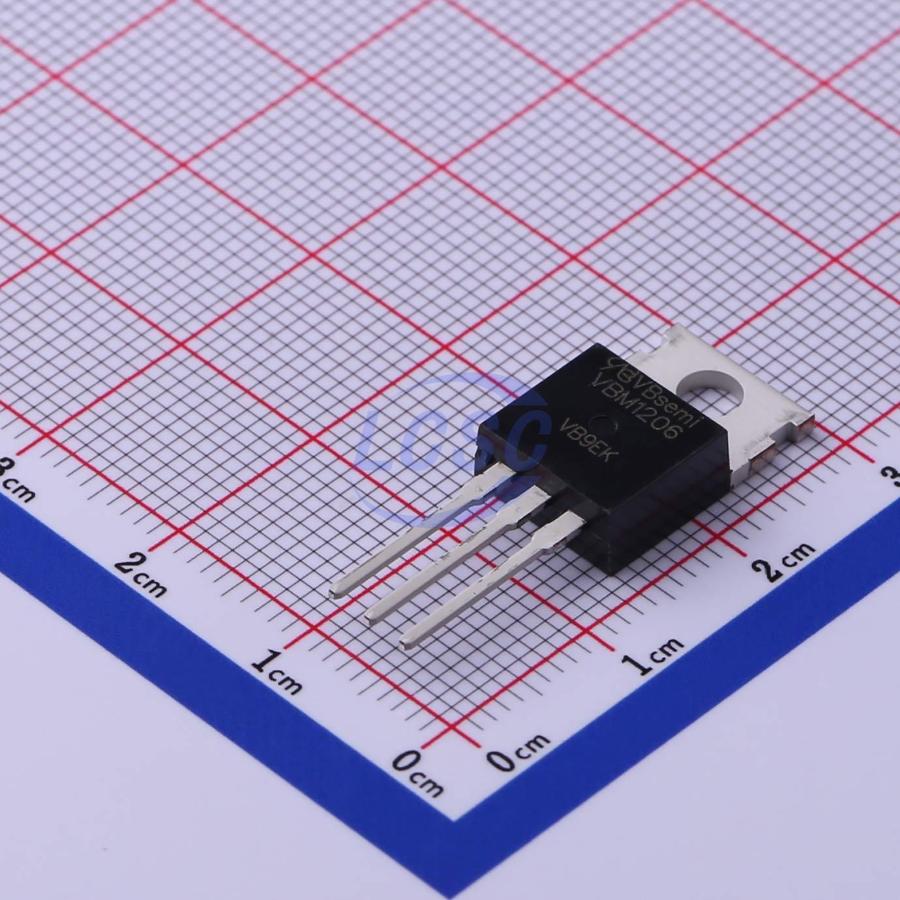

VBM1206
N-Channel 20V 100A 125W Through Hole ITO-220AB-3
ITO-220AB-3RoHSActive
MOSFET N-CH 20V 100A ITO-220AB-3
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- VBM1206
- Store part #
- C481006
- Package / case
- ITO-220AB-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
53 in stock
#C481006
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹78.23 | ₹78.23 |
| 10+ | ₹63.03 | ₹630.30 |
| 50+ | ₹55.42 | ₹2,771.00 |
| 100+ | ₹47.81 | ₹4,781.00 |
| 500+ | ₹43.25 | ₹21,625.00 |
| 1,000+ | ₹40.85 | ₹40,850.00 |
1 × ₹78.23
₹78.23
excl. GST
₹92.31 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
VBM1206
₹78.23 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 20V
- Output Capacitance(Coss)
- 1.1nF
- Current - Continuous Drain(Id)
- 100A
- Ciss-Input Capacitance
- 6nF
- Pd - Power Dissipation
- 125W
- Reverse Transfer Capacitance (Crss)
- 600pF
- RDS(on)
- 4mΩ@4.5V;5mΩ@2.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 65nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 1.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.72 g
Overview
Applications
- OR gate applications
- Servers
- DC-DC converters
Key features
- Trench power MOSFET
- 100% Rg and UIS tested
- Compliant with EU RoHS Directive 2011/65/EU
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 2SK3715-VB#C29778774VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 10 | ₹141.59 · 10 in stock | View |
 | AP9990GIF-HF-VB#C20755467VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 4 | ₹141.59 · 4 in stock | View |
 | TF2606L-VB#C20755697VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 10 | ₹141.59 · 10 in stock | View |
 | 2SK2498-VB#C693079VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 70 | ₹148.90 · 70 in stock | View |
 | VBM1606#C481016VBsemi Elec · ITO-220AB-3 | VBsemi Elec | ITO-220AB-3 | 2 | ₹155.49 · 2 in stock | View |
