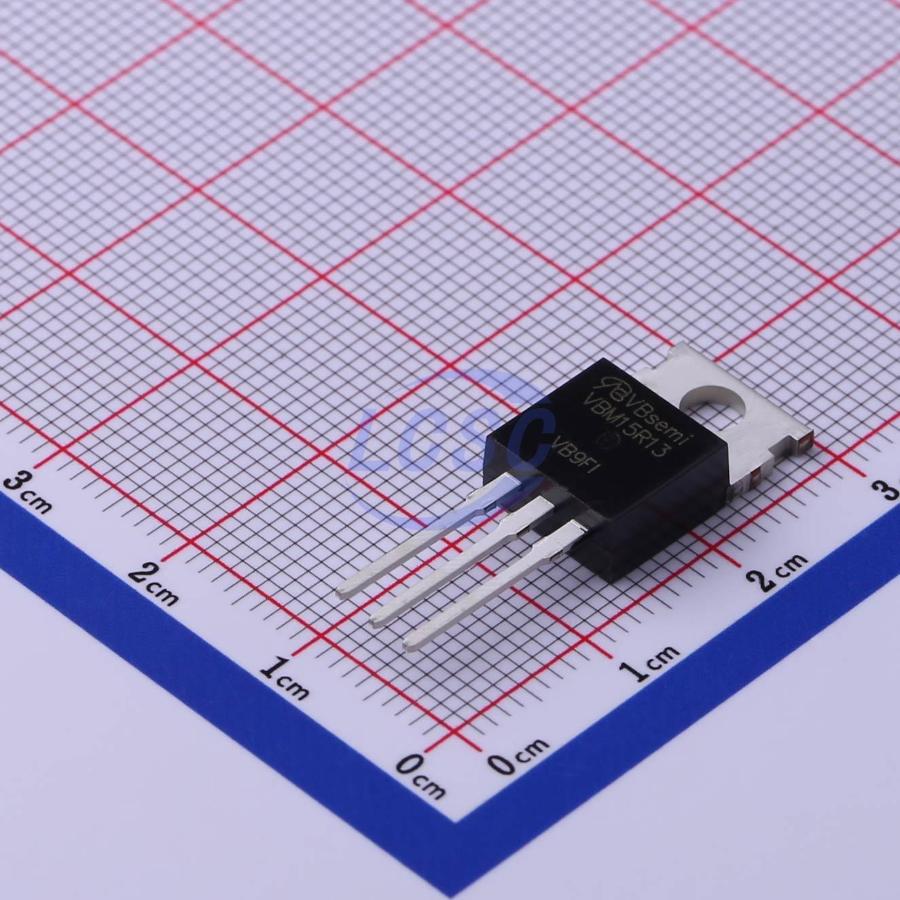

VBM15R13
N-Channel 500V 8.1A 250W Through Hole ITO-220AB-3
ITO-220AB-3RoHSActive
MOSFET N-CH 500V 8.1A ITO-220AB-3
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- VBM15R13
- Store part #
- C481014
- Package / case
- ITO-220AB-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6 in stock
#C481014
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹130.34 | ₹130.34 |
| 10+ | ₹106.00 | ₹1,060.00 |
| 50+ | ₹86.03 | ₹4,301.50 |
| 100+ | ₹74.06 | ₹7,406.00 |
| 500+ | ₹66.68 | ₹33,340.00 |
| 1,000+ | ₹63.08 | ₹63,080.00 |
1 × ₹130.34
₹130.34
excl. GST
₹153.80 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
VBM15R13
₹130.34 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 500V
- Output Capacitance(Coss)
- 290pF
- Current - Continuous Drain(Id)
- 8.1A
- Ciss-Input Capacitance
- 1.91nF
- Pd - Power Dissipation
- 250W
- Reverse Transfer Capacitance (Crss)
- 11pF
- RDS(on)
- 660mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 81nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.78 g
Overview
This N-channel logic-level MOSFET is designed to improve the overall efficiency of DC/DC converters using synchronous or conventional switching PWM controllers. Compared to other MOSFETs with similar RDS(on) specifications, these MOSFETs feature faster switching speeds and lower gate charge. As a result, the MOSFET is easy and safe to drive (even at very high frequencies), while improving the overall efficiency of DC/DC power supply designs.
Key features
- Lower Gate Charge Qg Results in Simpler Drive Reqirements
- Improved Gate, Avalanche and Dynamic dV/dt Ruggedness
- Fully Characterized Capacitance and Avalanche Voltage
- Compliant to RoHS Directive 2002/95/EC
