VBsemi ElecDatasheet (PDF)

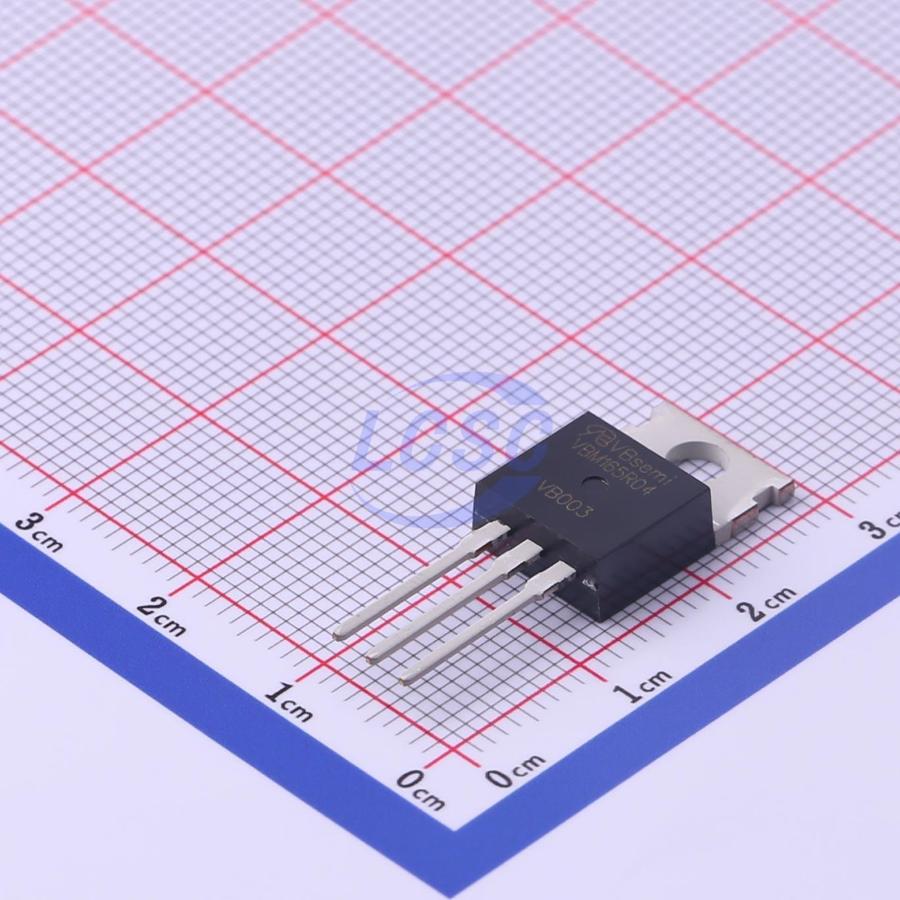

VBM165R04
N-Channel 650V 4.5A 60W Through Hole TO-220AB
TO-220ABRoHSActive
MOSFET N-CH 650V 4.5A TO-220AB
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- VBM165R04
- Store part #
- C516956
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
30 in stock
#C516956
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹64.68 | ₹64.68 |
| 10+ | ₹50.30 | ₹503.00 |
| 50+ | ₹43.32 | ₹2,166.00 |
| 100+ | ₹35.54 | ₹3,554.00 |
| 500+ | ₹32.14 | ₹16,070.00 |
| 1,000+ | ₹30.15 | ₹30,150.00 |
1 × ₹64.68
₹64.68
excl. GST
₹76.32 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
VBM165R04
₹64.68 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 650V
- Output Capacitance(Coss)
- 170pF
- Current - Continuous Drain(Id)
- 4.5A
- Ciss-Input Capacitance
- 1.017nF
- Pd - Power Dissipation
- 60W
- Reverse Transfer Capacitance (Crss)
- 7pF
- RDS(on)
- 1.7Ω@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 48nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.735 g
Overview
Key features
- Low Gate Charge Q₉ Results in Simple Drive Requirement
- Improved Gate, Avalanche and Dynamic dV/dt Ruggedness
- Fully Characterized Capacitance and Avalanche Voltage and Current
- Compliant to RoHS directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| 5N60 TO220F-VB#C5137399VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 3 | ₹77.51 · 3 in stock | View | |
 | BUZ93-VB#C19190137VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 15 | ₹72.90 · 15 in stock | View |
 | 4N60L-TA3-T-VB#C19626789VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 10 | ₹72.90 · 10 in stock | View |
 | IRF720APBF-VB#C19632126VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 6 | ₹73.74 · 6 in stock | View |
 | IRF820PBF-VB#C20417668VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 1 | ₹72.58 · 1 in stock | View |
