VBsemi ElecDatasheet (PDF)

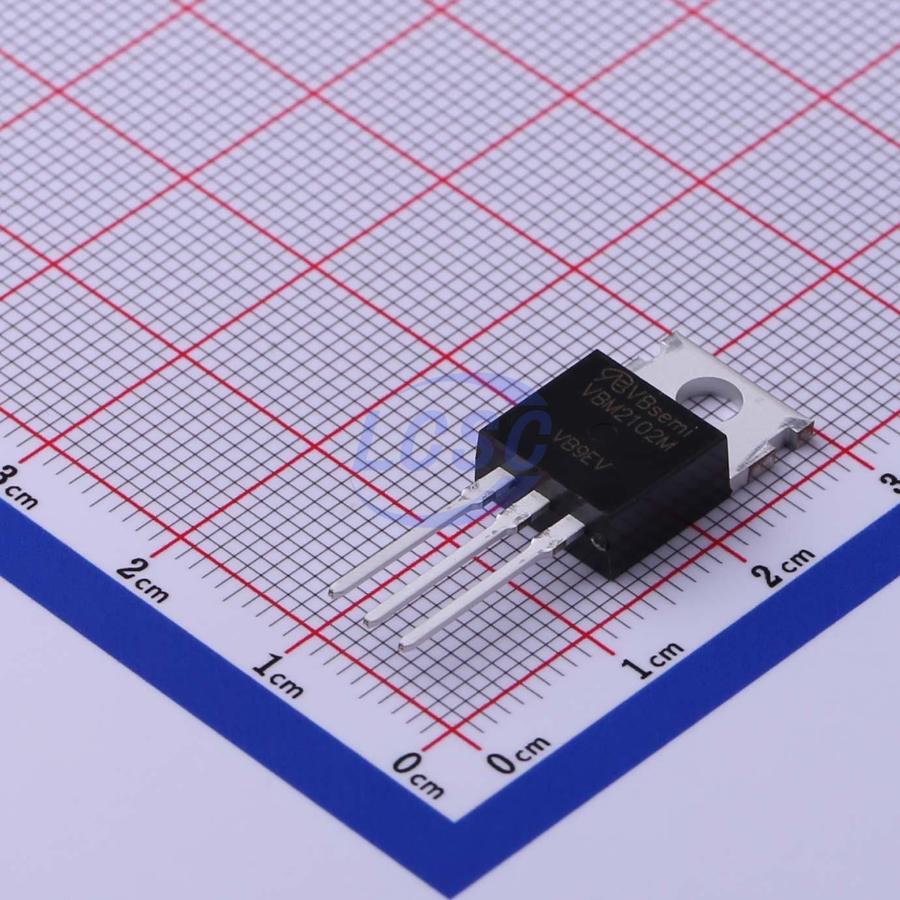

VBM2102M
P-Channel 100V 18A 1.1W Through Hole ITO-220AB-3
ITO-220AB-3RoHSActive
MOSFET P-CH 100V 18A ITO-220AB-3
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- VBM2102M
- Store part #
- C481024
- Package / case
- ITO-220AB-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6 in stock
#C481024
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹81.64 | ₹81.64 |
| 10+ | ₹66.27 | ₹662.70 |
| 50+ | ₹53.90 | ₹2,695.00 |
| 100+ | ₹46.32 | ₹4,632.00 |
| 500+ | ₹41.93 | ₹20,965.00 |
| 1,000+ | ₹39.53 | ₹39,530.00 |
1 × ₹81.64
₹81.64
excl. GST
₹96.34 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
VBM2102M
₹81.64 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+100℃
- Drain to Source Voltage
- 100V
- Output Capacitance(Coss)
- 330pF
- Current - Continuous Drain(Id)
- 18A
- Ciss-Input Capacitance
- 1.46nF
- Pd - Power Dissipation
- 1.1W
- Reverse Transfer Capacitance (Crss)
- 280pF
- RDS(on)
- 167mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 67nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.66 g
Overview
Applications
- Power switch
- Load switch for high-current applications
- DC/DC converter
Key features
- Halogen-free per IEC 61249-2-21
- Trench power MOSFET
- 100% Rg and UIS tested
- RoHS compliant per directive 2002/95/EC
