VBsemi ElecDatasheet (PDF)

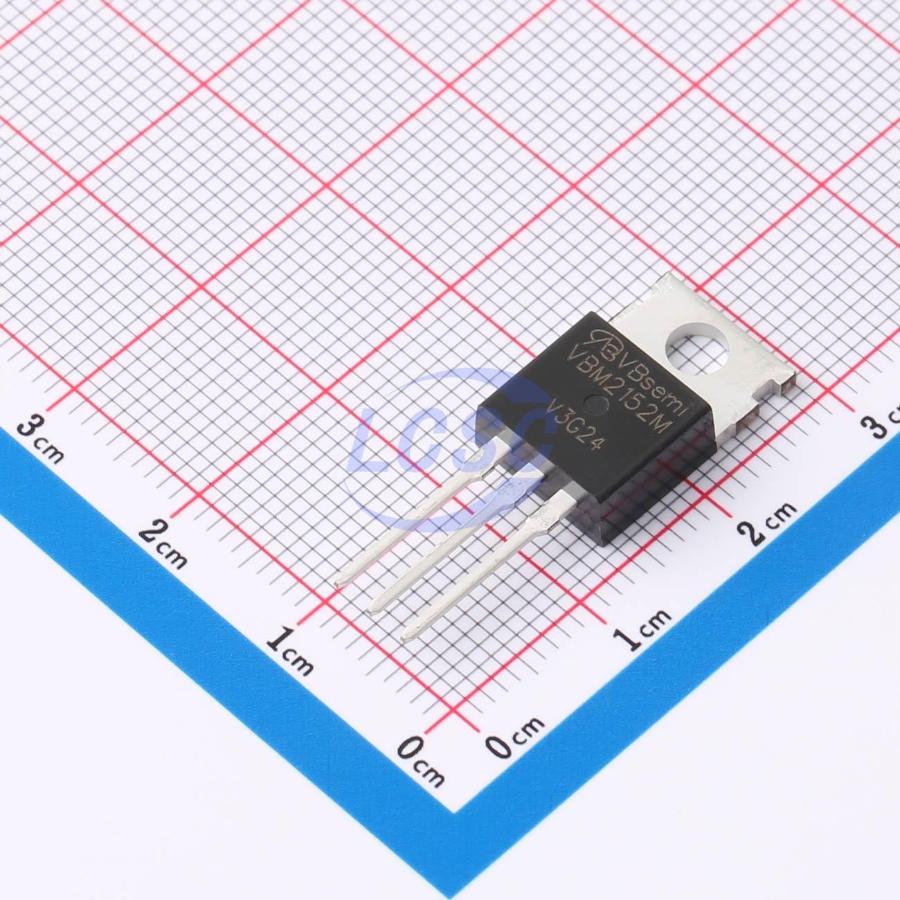

VBM2152M
P-Channel 150V 18A 2.5W Through Hole TO-220AB
TO-220ABROHS CompliantActive
MOSFET P-CH 150V 18A TO-220AB
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- VBM2152M
- Store part #
- C7541186
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C7541186
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹208.12 | ₹208.12 |
| 10+ | ₹179.39 | ₹1,793.90 |
| 50+ | ₹129.75 | ₹6,487.50 |
| 100+ | ₹111.90 | ₹11,190.00 |
| 500+ | ₹103.84 | ₹51,920.00 |
| 1,000+ | ₹100.15 | ₹1,00,150.00 |
1 × ₹208.12
₹208.12
excl. GST
₹245.58 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
VBM2152M
₹208.12 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 150V
- Output Capacitance(Coss)
- 65pF
- Current - Continuous Drain(Id)
- 18A
- Ciss-Input Capacitance
- 2.1nF
- Pd - Power Dissipation
- 2.5W
- Reverse Transfer Capacitance (Crss)
- 41pF
- RDS(on)
- 140mΩ@10V;150mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 23.2nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.8 g
Overview
FKD4006 is a high cell density trench N-channel MOSFET, offering excellent on-resistance (R<sub>DS(ON)</sub>) and gate charge for most synchronous buck converter applications. FKD4006 is RoHS and green product compliant, 100% guaranteed avalanche-rated (EAS), and fully qualified through reliability certification.
Applications
- Power Switches - DC-DC Converters
Key features
- Halogen-free per IEC 61249-2-21
- Trench power MOSFET
- 100% Rg and UIS tested
- RoHS compliant per directive 2002/95/EC
