VBsemi ElecDatasheet (PDF)

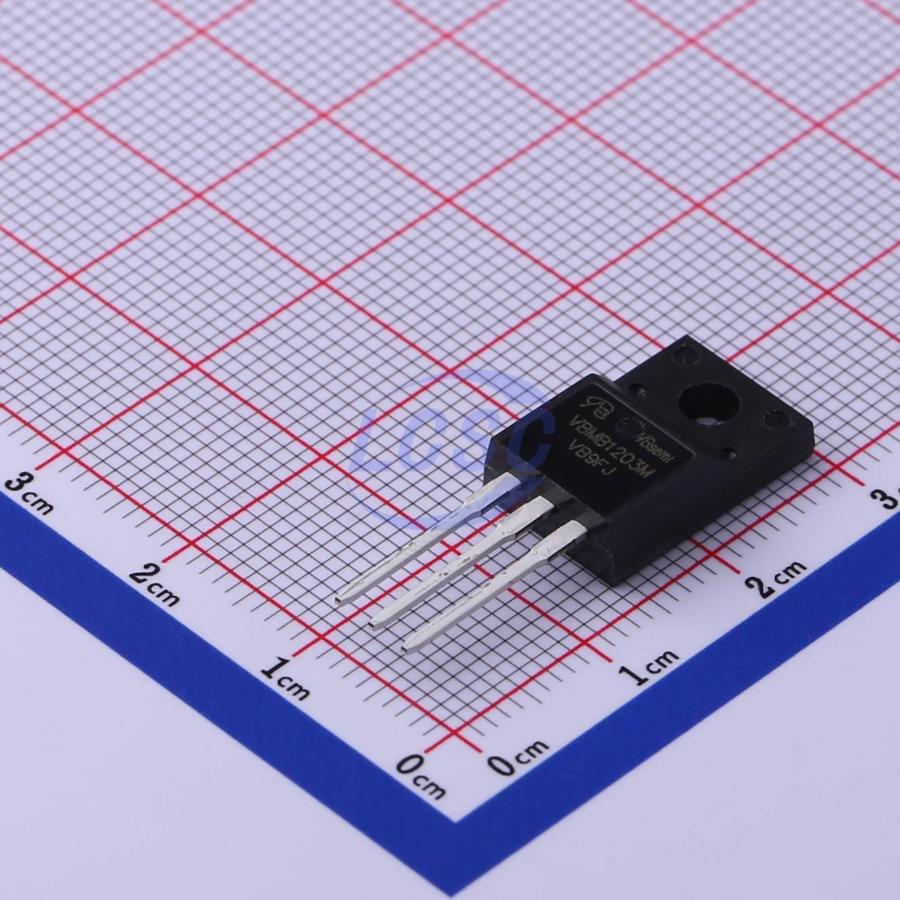

VBMB1203M
N-Channel 200V 6.5A 37W Through Hole TO-220F
TO-220FRoHSActive
MOSFET N-CH 200V 6.5A TO-220F
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- VBMB1203M
- Store part #
- C481029
- Package / case
- TO-220F
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6 in stock
#C481029
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹101.80 | ₹101.80 |
| 10+ | ₹82.85 | ₹828.50 |
| 50+ | ₹67.27 | ₹3,363.50 |
| 100+ | ₹57.89 | ₹5,789.00 |
| 500+ | ₹52.10 | ₹26,050.00 |
| 1,000+ | ₹49.31 | ₹49,310.00 |
1 × ₹101.80
₹101.80
excl. GST
₹120.12 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
VBMB1203M
₹101.80 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 200V
- Output Capacitance(Coss)
- 260pF
- Current - Continuous Drain(Id)
- 6.5A
- Ciss-Input Capacitance
- 560pF
- Pd - Power Dissipation
- 37W
- Reverse Transfer Capacitance (Crss)
- 110pF
- RDS(on)
- 265mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 16nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.35 g
Overview
Key features
- Isolated Package
- High Voltage Isolation = 2.5 kV RMS (t = 60 s; f = 60 Hz)
- Sink to Lead Creepage Distance = 4.8 mm
- 175 °C Operating Temperature
- Dynamic dV/dt Rating
- Low Thermal Resistance
- Lead (Pb)-free Available
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | RDN050N20-VB#C20417552VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 20 | ₹125.82 · 20 in stock | View |
 | AOTF450L-VB#C20626318VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 12 | ₹107.14 · 12 in stock | View |
 | RCX081N20-VB#C20755685VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 13 | ₹107.14 · 13 in stock | View |
 | AP05N20GI-HF-VB#C29778648VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 10 | ₹102.93 · 10 in stock | View |
 | K9A20DA-VB#C29778867VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 10 | ₹102.93 · 10 in stock | View |
