VBsemi ElecDatasheet (PDF)

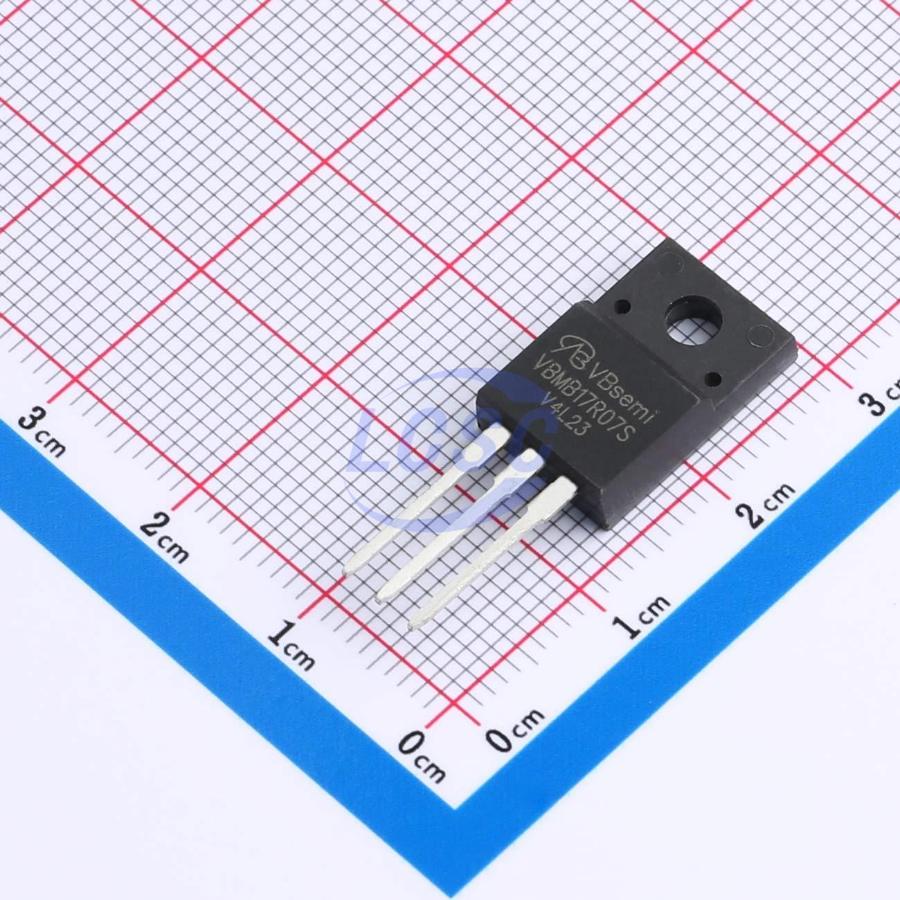

VBMB17R07S
700V 7A 99W 750mΩ@10V 1 N-channel N-Channel TO-220F Single FETs, MOSFETs
TO-220FRoHSActive
N-Channel 700V (D-S) Super Junction Power MOSFET
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- VBMB17R07S
- Store part #
- C42412819
- Package / case
- TO-220F
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C42412819
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹193.97 | ₹193.97 |
| 10+ | ₹169.60 | ₹1,696.00 |
| 50+ | ₹156.31 | ₹7,815.50 |
| 100+ | ₹94.49 | ₹9,449.00 |
| 500+ | ₹87.74 | ₹43,870.00 |
| 1,000+ | ₹84.69 | ₹84,690.00 |
1 × ₹193.97
₹193.97
excl. GST
₹228.88 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
VBMB17R07S
₹193.97 for 1 + GST
Specifications
- Drain to Source Voltage
- 700V
- Operating Temperature
- -55℃~+150℃
- Output Capacitance(Coss)
- 27pF
- Current - Continuous Drain(Id)
- 7A
- Ciss-Input Capacitance
- 366pF
- Pd - Power Dissipation
- 99W
- Reverse Transfer Capacitance (Crss)
- 13pF
- RDS(on)
- 750mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 26nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.2 g
Overview
Applications
- Server and telecom power supplies
- Switch mode power supplies (SMPS)
- Power factor correction power supplies (PFC)
- Lighting - High-intensity discharge (HID) - Fluorescent ballast lighting
- Industrial
Key features
- Low figure-of-merit (FOM) Rₒₙ×Q₉
- Low input capacitance (Cᵢₛₛ)
- Reduced switching and conduction losses
- Ultra low gate charge (Ω₉)
- Avalanche energy rated (UIS)
