VBsemi ElecDatasheet (PDF)

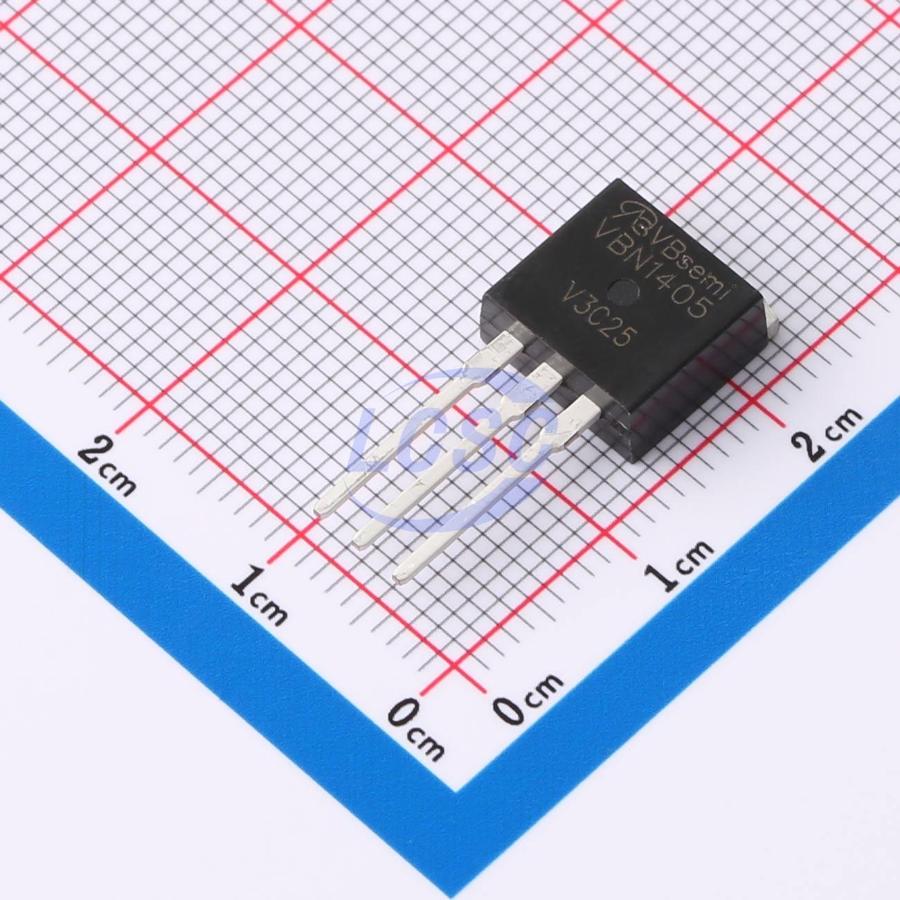

VBN1405
N-Channel 40V 100A Through Hole TO-262
TO-262ROHS CompliantActive
MOSFET N-CH 40V 100A TO-262
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- VBN1405
- Store part #
- C7541201
- Package / case
- TO-262
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C7541201
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹128.56 | ₹128.56 |
| 10+ | ₹104.40 | ₹1,044.00 |
| 50+ | ₹92.42 | ₹4,621.00 |
| 100+ | ₹80.45 | ₹8,045.00 |
| 500+ | ₹73.32 | ₹36,660.00 |
| 1,000+ | ₹69.75 | ₹69,750.00 |
1 × ₹128.56
₹128.56
excl. GST
₹151.70 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
VBN1405
₹128.56 for 1 + GST
Specifications
- Drain to Source Voltage
- 40V
- Output Capacitance(Coss)
- 600pF
- Current - Continuous Drain(Id)
- 100A
- Ciss-Input Capacitance
- 3.2nF
- Reverse Transfer Capacitance (Crss)
- 320pF
- RDS(on)
- 5mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 96nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.44 g
Overview
Key features
- Trench Power MOSFET
- Junction Temperature 175°C
- High Threshold Voltage at High Temperature
- RoHS Compliant
- N-Channel MOSFET
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NP80N04-VB#C29778888VBsemi Elec · TO-262 | VBsemi Elec | TO-262 | 10 | ₹123.52 · 10 in stock | View |
 | FDI8442_F085-VB#C52989018VBsemi Elec · TO-262 | VBsemi Elec | TO-262 | 5 | ₹142.16 · 5 in stock | View |
 | NP88N04NUG-VB#C52989019VBsemi Elec · TO-262 | VBsemi Elec | TO-262 | 5 | ₹142.16 · 5 in stock | View |
 | NP82N04NLG-S18-AY-VB#C52989020VBsemi Elec · TO-262 | VBsemi Elec | TO-262 | 5 | ₹142.16 · 5 in stock | View |
 | NP80N04NDG-S18-AY-VB#C52989021VBsemi Elec · TO-262 | VBsemi Elec | TO-262 | 5 | ₹142.16 · 5 in stock | View |
