VBsemi ElecDatasheet (PDF)

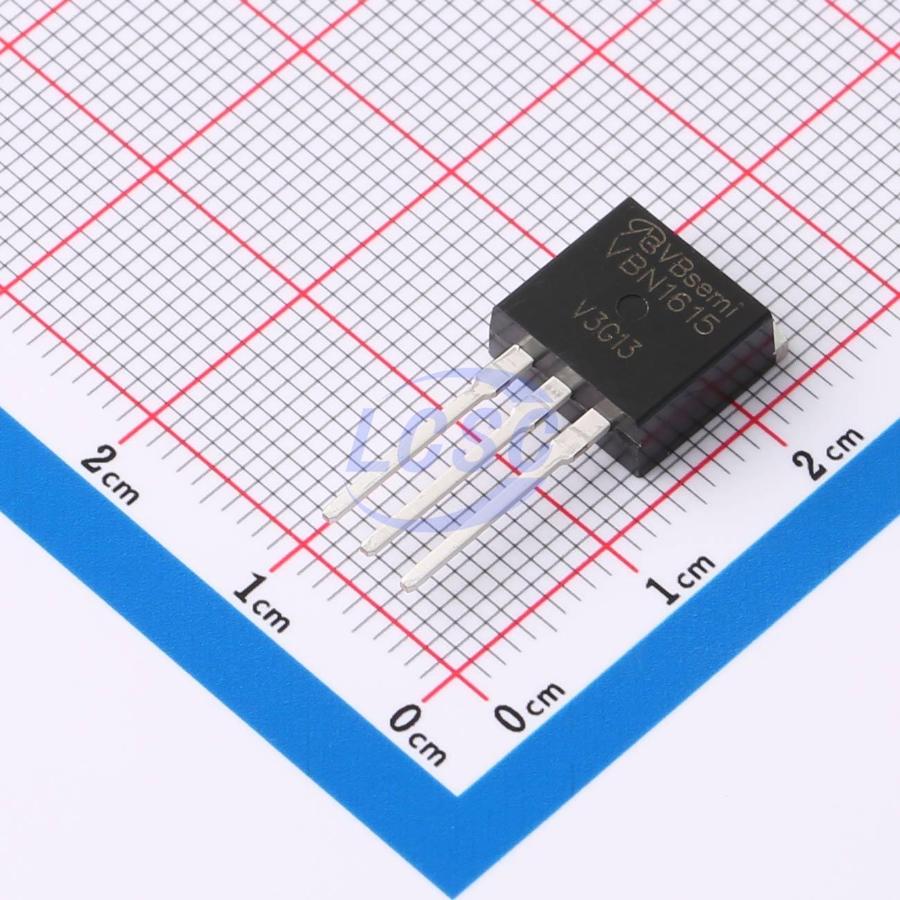

VBN1615
N-Channel 60V 50A 190W Through Hole TO-262
TO-262ROHS CompliantActive
MOSFET N-CH 60V 50A TO-262
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- VBN1615
- Store part #
- C7541203
- Package / case
- TO-262
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C7541203
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹108.38 | ₹108.38 |
| 10+ | ₹88.19 | ₹881.90 |
| 50+ | ₹77.99 | ₹3,899.50 |
| 100+ | ₹68.02 | ₹6,802.00 |
| 500+ | ₹61.85 | ₹30,925.00 |
| 1,000+ | ₹58.87 | ₹58,870.00 |
1 × ₹108.38
₹108.38
excl. GST
₹127.89 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
VBN1615
₹108.38 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 1.3nF
- Current - Continuous Drain(Id)
- 50A
- Ciss-Input Capacitance
- 3.5nF
- Pd - Power Dissipation
- 190W
- Reverse Transfer Capacitance (Crss)
- 190pF
- RDS(on)
- 14mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 110nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.28 g
Overview
Applications
- Primary-side switching
- Synchronous rectification
- DC/AC inverter
- LED backlight
Key features
- Advanced process technology
- 175 °C operating temperature
- Fast switching
- N-Channel MOSFET
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FZ44ZL-VB TO262#C22389182VBsemi Elec · TO-262 | VBsemi Elec | TO-262 | 40 | ₹114.11 · 40 in stock | View |
 | BUK9E06-55A-VB#C22389533VBsemi Elec · TO-262 | VBsemi Elec | TO-262 | 10 | ₹141.59 · 10 in stock | View |
 | BUK9E08-55B,127-VB#C52191106VBsemi Elec · TO-262 | VBsemi Elec | TO-262 | 5 | ₹153.48 · 5 in stock | View |
 | AUIRF1010ZL-VB#C52989033VBsemi Elec · TO-262 | VBsemi Elec | TO-262 | 5 | ₹153.48 · 5 in stock | View |
 | STB80NF55L-08-1-VB#C52989034VBsemi Elec · TO-262 | VBsemi Elec | TO-262 | 5 | ₹153.48 · 5 in stock | View |
