VBsemi ElecDatasheet (PDF)

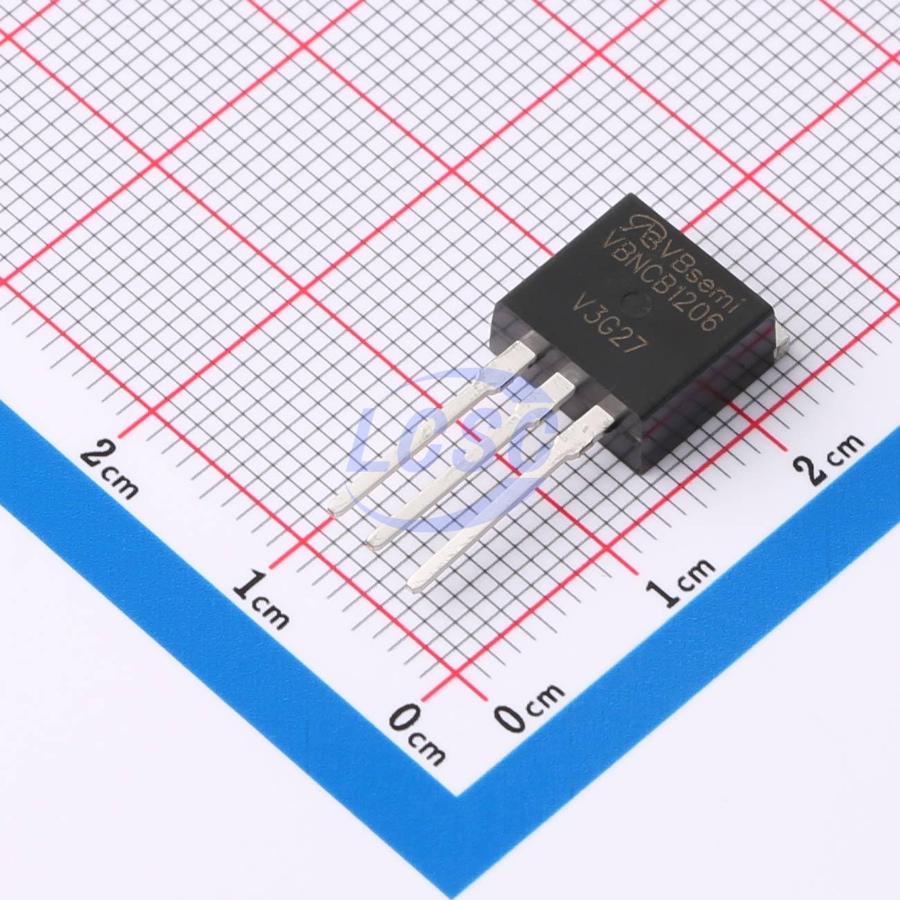

VBNCB1206
N-Channel 20V 28.8A 250W Through Hole TO-262
TO-262ROHS CompliantActive
MOSFET N-CH 20V 28.8A TO-262
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- VBNCB1206
- Store part #
- C7541190
- Package / case
- TO-262
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C7541190
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹93.72 | ₹93.72 |
| 10+ | ₹76.30 | ₹763.00 |
| 50+ | ₹67.37 | ₹3,368.50 |
| 100+ | ₹58.66 | ₹5,866.00 |
| 500+ | ₹53.56 | ₹26,780.00 |
| 1,000+ | ₹50.79 | ₹50,790.00 |
1 × ₹93.72
₹93.72
excl. GST
₹110.59 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
VBNCB1206
₹93.72 for 1 + GST
Specifications
- Drain to Source Voltage
- 20V
- Output Capacitance(Coss)
- 1.725nF
- Current - Continuous Drain(Id)
- 28.8A
- Ciss-Input Capacitance
- 4nF
- Pd - Power Dissipation
- 250W
- Reverse Transfer Capacitance (Crss)
- 970pF
- RDS(on)
- 3mΩ@10V;7mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 171nC@10V;81.5nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.33 g
Overview
Applications
- OR Gate Application - Server - DC-DC Conversion
Key features
- Trench power MOSFET
- 100% Rg and UIS tested
- Compliant with EU RoHS Directive 2011/65/EU
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NP88N04NHE-VB#C22390084VBsemi Elec · TO-262 | VBsemi Elec | TO-262 | 2 | ₹107.07 · 2 in stock | View |
 | VBNCB1303#C7541191VBsemi Elec · TO-262 | VBsemi Elec | TO-262 | 10 | ₹142.63 · 10 in stock | View |
 | VBN1303#C7541200VBsemi Elec · TO-262 | VBsemi Elec | TO-262 | 10 | ₹114.48 · 10 in stock | View |
 | IRL3715LPBF-VB#C52989045VBsemi Elec · TO-262 | VBsemi Elec | TO-262 | 5 | ₹102.32 · 5 in stock | View |
 | STB80NF03L-04-VB#C52989017VBsemi Elec · TO-262 | VBsemi Elec | TO-262 | 5 | ₹126.70 · 5 in stock | View |
