VISHAYDatasheet (PDF)

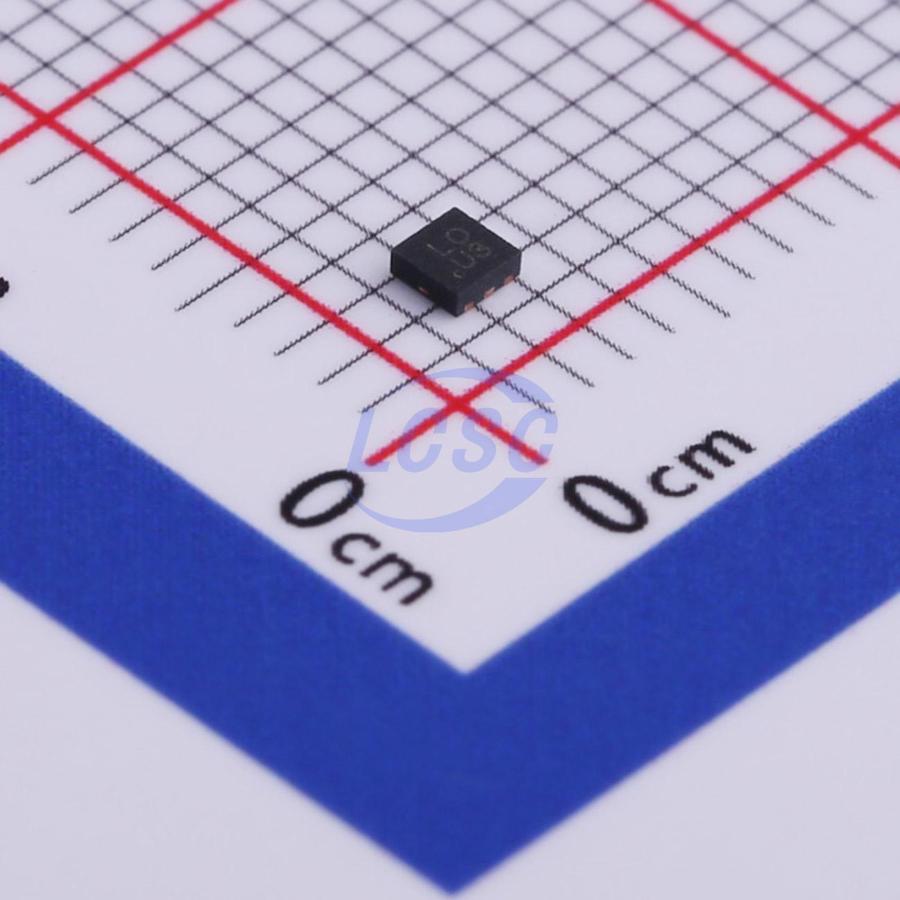

VBUS054B-HSF-GS08
15VC Clamp 3A@8/20us Ipp ESD DIODE UFDFN-6-EP
UFDFN-6-EPROHS3 CompliantActive
ESD DIODE 5VWM 15VC UFDFN-6-EP
- Manufacturer
- VISHAY
- Manufacturer part #
- VBUS054B-HSF-GS08
- Store part #
- C506614
- Package / case
- UFDFN-6-EP
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
75 in stock
#C506614
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹30.14 | ₹150.70 |
| 50+ | ₹23.64 | ₹1,182.00 |
| 150+ | ₹20.86 | ₹3,129.00 |
| 500+ | ₹17.38 | ₹8,690.00 |
| 3,000+ | ₹15.84 | ₹47,520.00 |
| 6,000+ | ₹14.91 | ₹89,460.00 |
5 × ₹30.14
₹150.70
excl. GST
₹177.83 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
VBUS054B-HSF-GS08
₹150.70 for 5 + GST
Specifications
- Clamping Voltage
- 15V
- Operating Temperature
- -40℃~+125℃
- Peak Pulse Current (Ipp)
- 3A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 45W
- Number of Channels
- Four channels
- Voltage - Breakdown
- 6.9V
- type
- ESD
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 100nA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.028 g
Overview
Applications
- double, high speed USB-port
- up to 4 other high speed signal or data lines
Key features
- Ultra compact LLP75-6L package
- Low package height < 0.6 mm
- 4-line USB ESD protection
- Low leakage current
- Low load capacitance CD = 0.8 pF
- ESD immunity acc. IEC 61000-4-2 ± 15 kV contact discharge ± 15 kV air discharge
- e4 - precious metal (e.g. Ag, Au, NiPd, NiPdAu) (no Sn)
- Material categorization: for definitions of compliance please see www.vishay.com/doc?99912
