VBsemi ElecDatasheet (PDF)

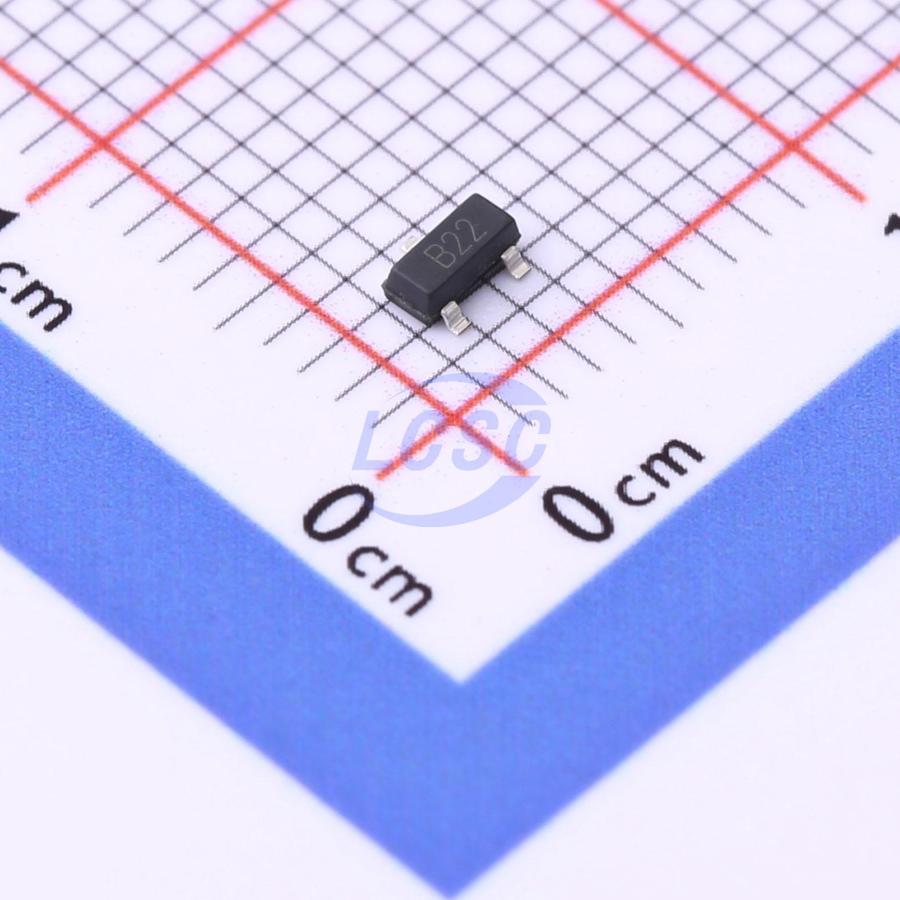

VBZ2301
P-Channel 20V 4A 3W Surface Mount SOT-23(TO-236)
SOT-23(TO-236)RoHSActive
MOSFET P-CH 20V 4A SOT-23(TO-236)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- VBZ2301
- Store part #
- C3040197
- Package / case
- SOT-23(TO-236)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C3040197
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.66 | ₹96.60 |
| 100+ | ₹7.74 | ₹774.00 |
| 300+ | ₹6.77 | ₹2,031.00 |
| 3,000+ | ₹5.82 | ₹17,460.00 |
| 6,000+ | ₹5.24 | ₹31,440.00 |
| 9,000+ | ₹4.95 | ₹44,550.00 |
10 × ₹9.66
₹96.60
excl. GST
₹113.99 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
VBZ2301
₹96.60 for 10 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 20V
- Output Capacitance(Coss)
- 80pF
- Current - Continuous Drain(Id)
- 4A
- Ciss-Input Capacitance
- 340pF
- Pd - Power Dissipation
- 3W
- Reverse Transfer Capacitance (Crss)
- 55pF
- RDS(on)
- 60mΩ@4.5V;85mΩ@2.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 5nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 1.5V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.05 g
Overview
- Trench power mid-voltage MOSFET technology - Voltage-controlled small-signal switch - Low input capacitance - Fast switching speed - Low input/output leakage current
Applications
- Battery-powered systems - Solid-state relays - Direct logic-level interface: TTL/CMOS
Key features
- Compliant with halogen-free requirements as defined by IEC 61249-2-21
- Trench power MOSFET
- 100% Rg and UIS tested
- Compliant with RoHS Directive 2002/95/EC
