VBsemi ElecDatasheet (PDF)

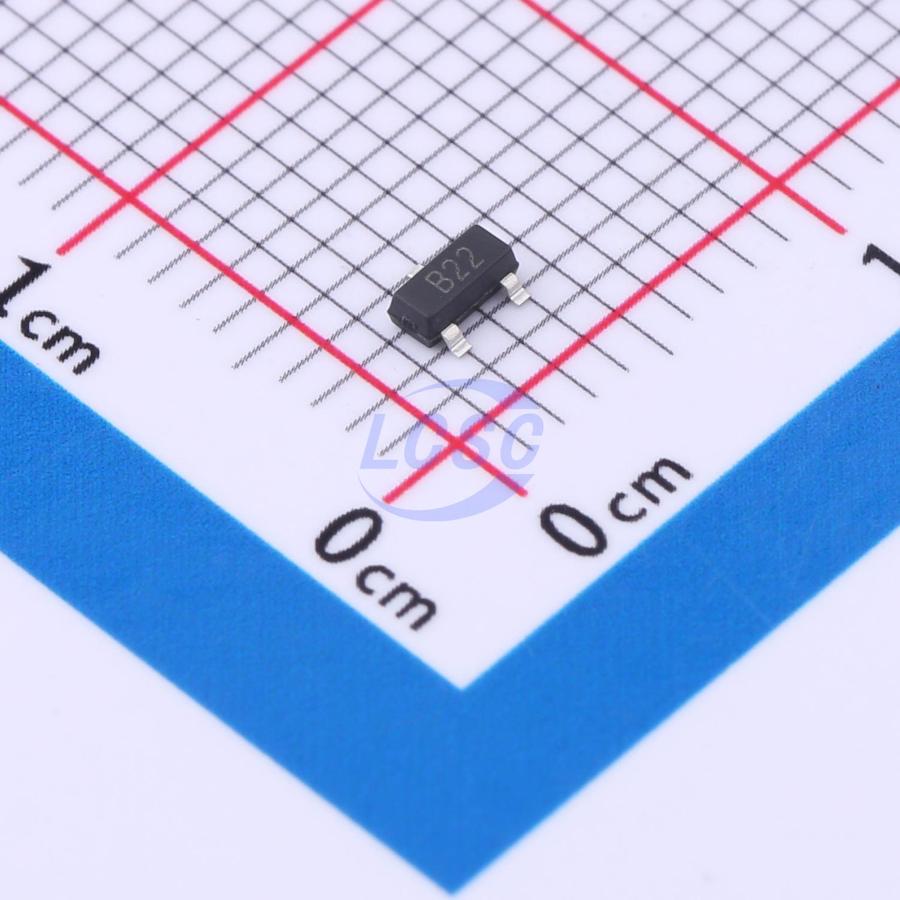

VBZ2301A
P-Channel 20V 2.8A 1.6W Surface Mount SOT-23(TO-236)
SOT-23(TO-236)RoHSActive
MOSFET P-CH 20V 2.8A SOT-23(TO-236)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- VBZ2301A
- Store part #
- C5137372
- Package / case
- SOT-23(TO-236)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
30 in stock
#C5137372
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.10 | ₹91.00 |
| 100+ | ₹7.26 | ₹726.00 |
| 300+ | ₹6.35 | ₹1,905.00 |
| 3,000+ | ₹5.66 | ₹16,980.00 |
| 6,000+ | ₹5.11 | ₹30,660.00 |
| 9,000+ | ₹4.83 | ₹43,470.00 |
10 × ₹9.10
₹91.00
excl. GST
₹107.38 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
VBZ2301A
₹91.00 for 10 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Output Capacitance(Coss)
- 180pF
- Current - Continuous Drain(Id)
- 2.8A
- Ciss-Input Capacitance
- 835pF
- Pd - Power Dissipation
- 1.6W
- Reverse Transfer Capacitance (Crss)
- 155pF
- RDS(on)
- 82mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 10nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 1.5V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.068 g
Overview
Applications
- Load switch
- Power amplifier switch
- DC/DC converter
Key features
- Halogen-free per IEC 61249-2-21
- Trench power MOSFET
- 100% Rg tested
- RoHS compliant per directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BSS215P H6327-VB#C19188116VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 100 | ₹9.10 · 100 in stock | View |
 | SI2315DS-T1-E3-VB#C19190114VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 100 | ₹8.94 · 100 in stock | View |
 | SSF2301-VB#C20417444VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 100 | ₹9.10 · 100 in stock | View |
 | SQ2301ES-T1-GE3-VB#C22388975VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 100 | ₹9.00 · 100 in stock | View |
 | PJ2301MR-VB#C22389379VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 50 | ₹8.67 · 50 in stock | View |
