VBsemi ElecDatasheet (PDF)

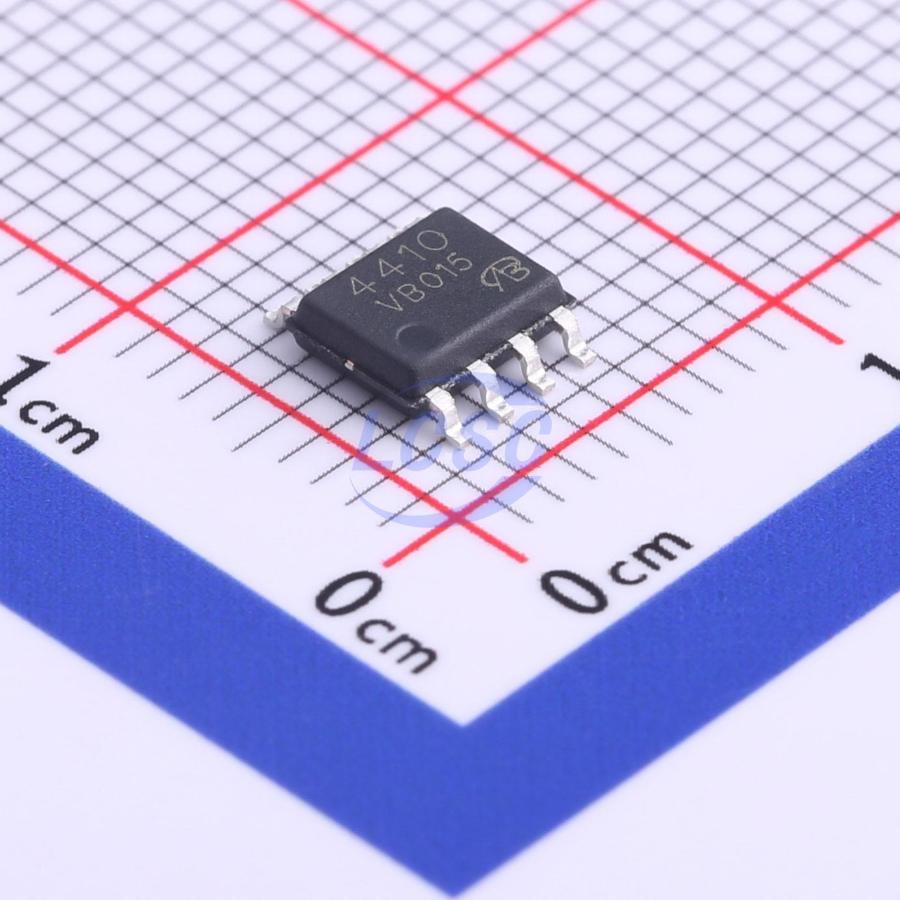

VBZA4410
N-Channel 20V 11A 2.2W Surface Mount SO-8
SO-8RoHSActive
MOSFET N-CH 20V 11A SO-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- VBZA4410
- Store part #
- C700585
- Package / case
- SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
60 in stock
#C700585
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹38.42 | ₹192.10 |
| 50+ | ₹30.50 | ₹1,525.00 |
| 150+ | ₹27.10 | ₹4,065.00 |
| 500+ | ₹22.86 | ₹11,430.00 |
| 2,500+ | ₹20.97 | ₹52,425.00 |
| 4,000+ | ₹19.85 | ₹79,400.00 |
5 × ₹38.42
₹192.10
excl. GST
₹226.68 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
VBZA4410
₹192.10 for 5 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Output Capacitance(Coss)
- 165pF
- Current - Continuous Drain(Id)
- 11A
- Ciss-Input Capacitance
- 800pF
- Pd - Power Dissipation
- 2.2W
- Reverse Transfer Capacitance (Crss)
- 73pF
- RDS(on)
- 11mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 7nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.134 g
Overview
Applications
- Laptop CPU core
- High-end switching
Key features
- Halogen-free
- Trench power MOSFET
- Optimized for high-side synchronous rectifier operation
- 100% Rg tested
- 100% UIS tested
