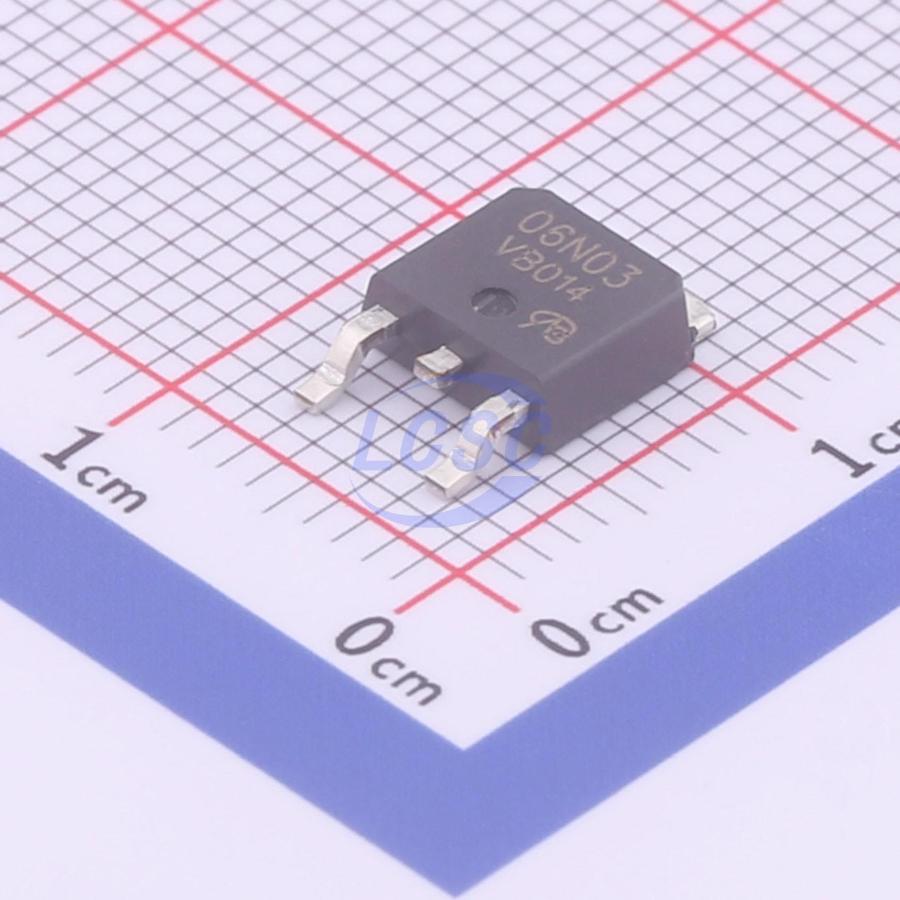

VBZE06N03
20V 100A 71W 4.5mΩ@4.5V 1 N-channel N-Channel TO-252-2 Single FETs, MOSFETs
TO-252-2RoHSActive
MOSFET N-CH 20V 100A TO-252-2
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- VBZE06N03
- Store part #
- C700616
- Package / case
- TO-252-2
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
17 in stock
#C700616
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹70.71 | ₹70.71 |
| 10+ | ₹56.31 | ₹563.10 |
| 30+ | ₹50.08 | ₹1,502.40 |
| 100+ | ₹42.34 | ₹4,234.00 |
| 500+ | ₹37.82 | ₹18,910.00 |
| 1,000+ | ₹35.89 | ₹35,890.00 |
1 × ₹70.71
₹70.71
excl. GST
₹83.44 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
VBZE06N03
₹70.71 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 20V
- Output Capacitance(Coss)
- 730pF
- Current - Continuous Drain(Id)
- 100A
- Ciss-Input Capacitance
- 3.66nF
- Pd - Power Dissipation
- 71W
- Reverse Transfer Capacitance (Crss)
- 375pF
- RDS(on)
- 4.5mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 35nC@4.5V
- Vgs
- ±15V
- Gate Threshold Voltage (Vgs(th))
- 1.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.365 g
Overview
Key features
- Trench power MOSFET
- Maximum junction temperature 175°C
- 100% gate resistance (Rg) tested
- N-channel MOSFET
