VBsemi ElecDatasheet (PDF)

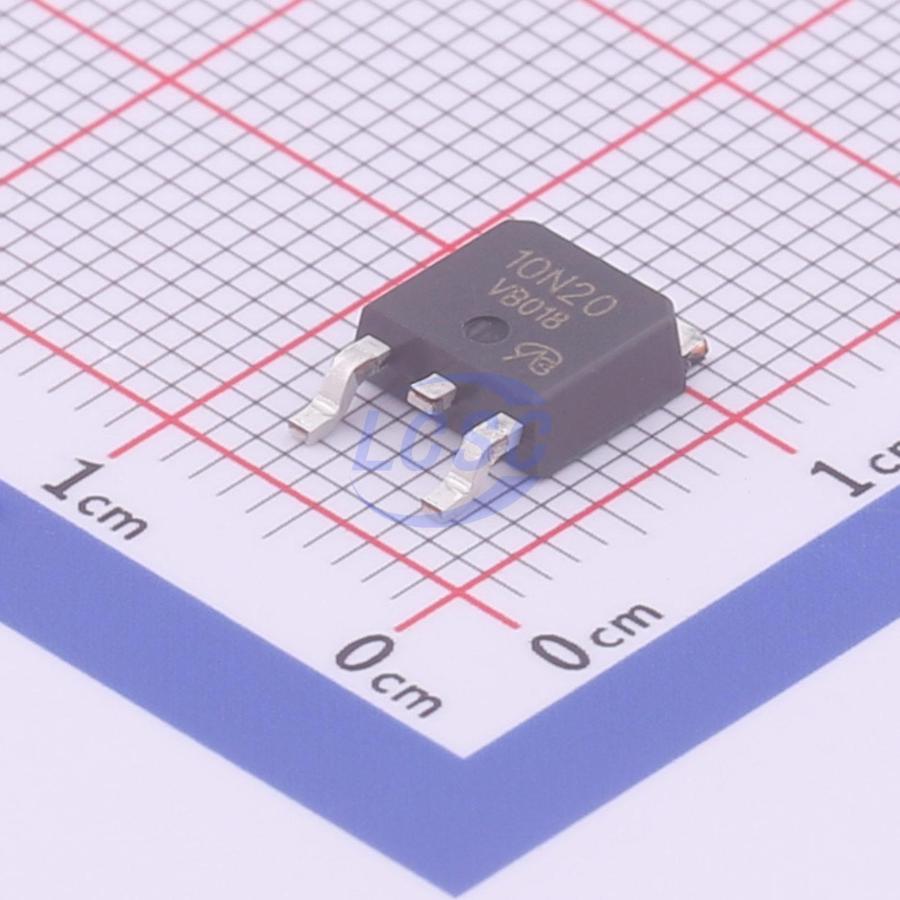

VBZE10N20
N-Channel 200V 10A 50W Surface Mount TO-252
TO-252RoHSActive
MOSFET N-CH 200V 10A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- VBZE10N20
- Store part #
- C700620
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
45 in stock
#C700620
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹112.38 | ₹112.38 |
| 10+ | ₹94.73 | ₹947.30 |
| 30+ | ₹85.69 | ₹2,570.70 |
| 100+ | ₹76.87 | ₹7,687.00 |
| 500+ | ₹61.36 | ₹30,680.00 |
| 1,000+ | ₹58.56 | ₹58,560.00 |
1 × ₹112.38
₹112.38
excl. GST
₹132.61 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
VBZE10N20
₹112.38 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 200V
- Output Capacitance(Coss)
- 180pF
- Current - Continuous Drain(Id)
- 10A
- Ciss-Input Capacitance
- 1.8nF
- Pd - Power Dissipation
- 50W
- Reverse Transfer Capacitance (Crss)
- 80pF
- RDS(on)
- 245mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 34nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.37 g
Overview
Applications
- Primary-side switch
Key features
- Trench power MOSFET
- Junction temperature 175 °C
- Optimized for PWM
- 100% gate resistance (Rg) tested
- RoHS compliant with directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRFR9N20DPBF-VB#C18212610VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 28 | ₹93.72 · 28 in stock | View |
 | IRFR220PBF-VB#C18795060VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 9 | ₹93.72 · 9 in stock | View |
 | AOD458-VB#C19188161VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 52 | ₹113.43 · 52 in stock | View |
 | 2SK1335STL-E-VB#C19188260VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 20 | ₹93.72 · 20 in stock | View |
 | 2SK3634-Z-E1-AZ-VB#C19189338VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 52 | ₹93.72 · 52 in stock | View |
