VBsemi ElecDatasheet (PDF)

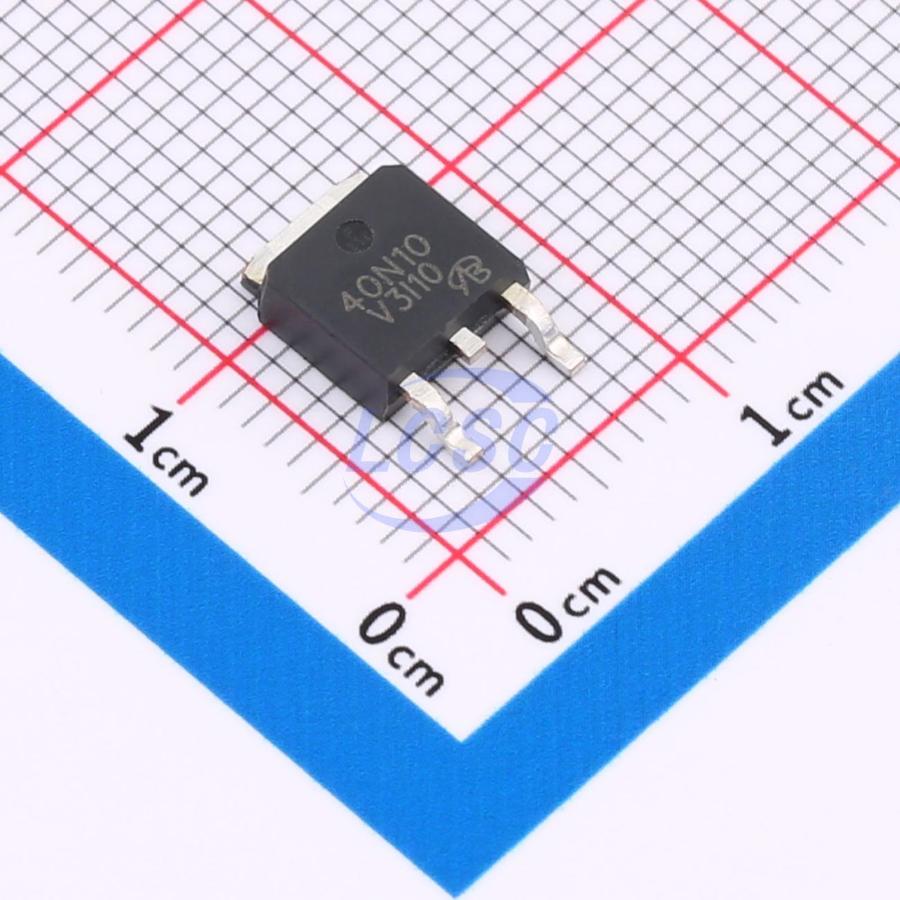

VBZE40N10
N-Channel 100V 30A 60W Surface Mount TO-252
TO-252RoHSActive
MOSFET N-CH 100V 30A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- VBZE40N10
- Store part #
- C700642
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
25 in stock
#C700642
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹103.35 | ₹103.35 |
| 10+ | ₹83.40 | ₹834.00 |
| 30+ | ₹73.32 | ₹2,199.60 |
| 100+ | ₹63.23 | ₹6,323.00 |
| 500+ | ₹57.35 | ₹28,675.00 |
| 1,000+ | ₹54.20 | ₹54,200.00 |
1 × ₹103.35
₹103.35
excl. GST
₹121.95 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
VBZE40N10
₹103.35 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Output Capacitance(Coss)
- 290pF
- Current - Continuous Drain(Id)
- 30A
- Ciss-Input Capacitance
- 4nF
- Pd - Power Dissipation
- 60W
- Reverse Transfer Capacitance (Crss)
- 120pF
- RDS(on)
- 35mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 35nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.36 g
Overview
Key features
- Trench power MOSFET
- Junction temperature 175 °C
- Low thermal resistance package
- RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IPD49CN10NG-VB#C22389814VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 20 | ₹102.93 · 20 in stock | View |
 | HM30N10K-VB#C29779471VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 20 | ₹102.93 · 20 in stock | View |
 | VBE1104NC#C967490VBsemi Elec · TO-252-2 | VBsemi Elec | TO-252-2 | 11 | ₹105.87 · 11 in stock | View |
 | VBZE30N10#C700639VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 28 | ₹111.54 · 28 in stock | View |
 | 25N10L-TN3-R-VB#C18212566VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 33 | ₹108.38 · 33 in stock | View |
