VBsemi ElecDatasheet (PDF)

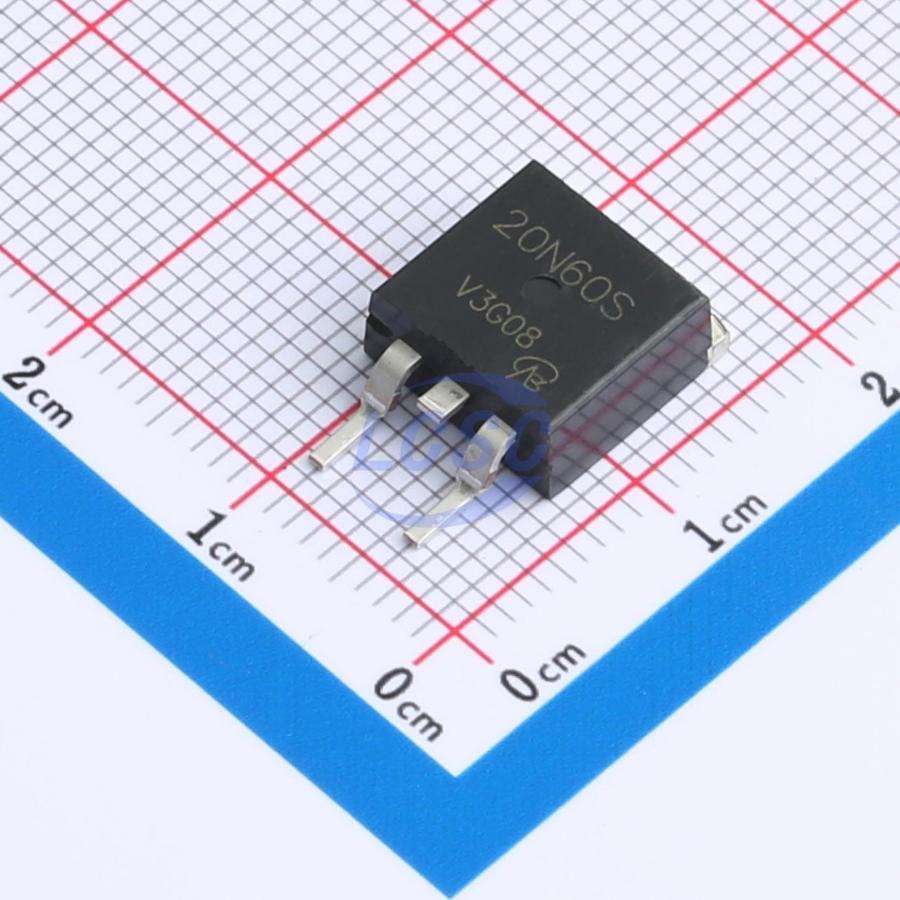

VBZL20N60S
N-Channel 600V 10A Surface Mount TO-263(D2PAK)
TO-263(D2PAK)ROHS CompliantActive
MOSFET N-CH 600V 10A TO-263(D2PAK)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- VBZL20N60S
- Store part #
- C7569078
- Package / case
- TO-263(D2PAK)
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7 in stock
#C7569078
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹479.36 | ₹479.36 |
| 10+ | ₹423.85 | ₹4,238.50 |
| 50+ | ₹289.54 | ₹14,477.00 |
| 100+ | ₹253.83 | ₹25,383.00 |
| 500+ | ₹237.94 | ₹1,18,970.00 |
| 1,000+ | ₹230.76 | ₹2,30,760.00 |
1 × ₹479.36
₹479.36
excl. GST
₹565.64 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
VBZL20N60S
₹479.36 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 600V
- Current - Continuous Drain(Id)
- 10A
- Output Capacitance(Coss)
- 80pF
- Ciss-Input Capacitance
- 1.44nF
- Reverse Transfer Capacitance (Crss)
- 4pF
- RDS(on)
- 190mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 48nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.75 g
Overview
Applications
- Server and telecom power supplies
- Switch mode power supplies (SMPS)
- Power factor correction power supplies (PFC)
- Lighting - High-intensity discharge (HID) - Fluorescent ballast lighting
- Industrial
Key features
- Low figure-of-merit (FOM) R_on×Q_g
- Low input capacitance (C_iss)
- Reduced switching and conduction losses
- Ultra low gate charge (Q_g)
- Avalanche energy rated (UIS)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | VBZL15N60S#C7569077VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 1 | ₹304.16 · 1 in stock | View |
 | STB20NM60-VB#C29779353VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 32 | ₹332.21 · 32 in stock | View |
 | 07N60S5 TO263-VB#C7569118VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 10 | ₹161.54 · 10 in stock | View |
 | IPB60R280C6-VB#C29779482VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 4 | ₹290.93 · 4 in stock | View |
 | FCB20N60FTM-VB#C7524925VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 47 | ₹380.27 · 47 in stock | View |
