VBsemi ElecDatasheet (PDF)

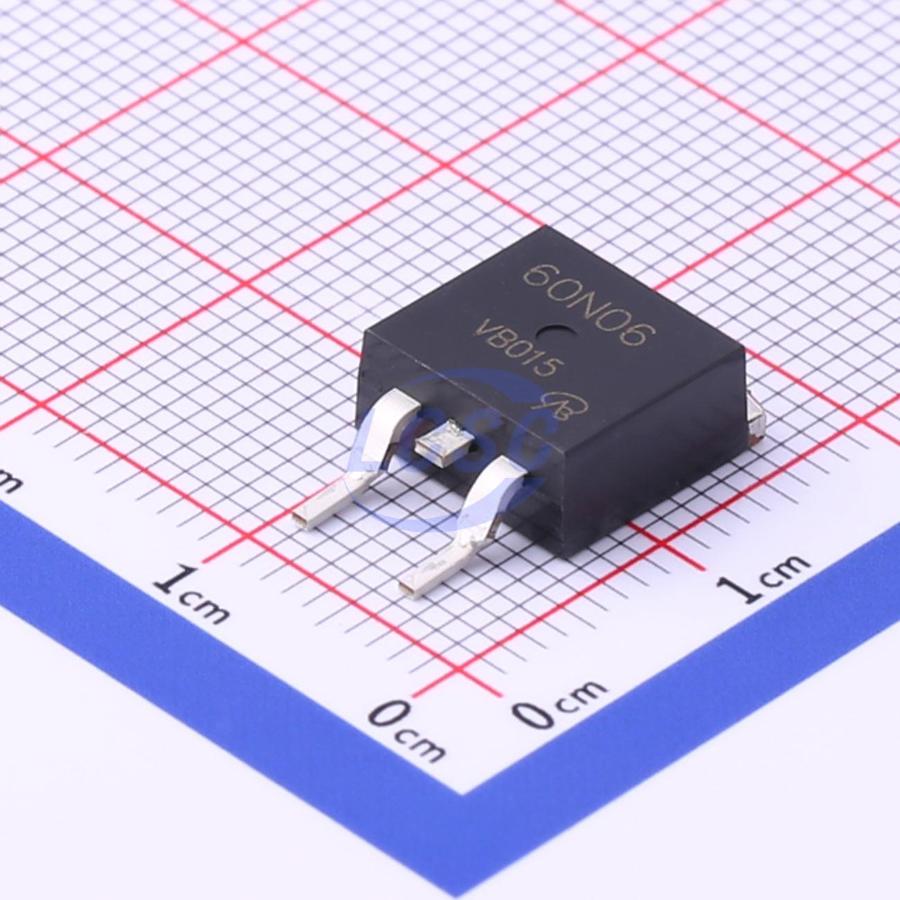

VBZL60N06
N-Channel 60V 75A Surface Mount TO-263(D2PAK)
TO-263(D2PAK)RoHSActive
MOSFET N-CH 60V 75A TO-263(D2PAK)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- VBZL60N06
- Store part #
- C700692
- Package / case
- TO-263(D2PAK)
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C700692
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹127.35 | ₹127.35 |
| 10+ | ₹103.47 | ₹1,034.70 |
| 50+ | ₹91.54 | ₹4,577.00 |
| 100+ | ₹79.80 | ₹7,980.00 |
| 500+ | ₹72.69 | ₹36,345.00 |
| 1,000+ | ₹69.13 | ₹69,130.00 |
1 × ₹127.35
₹127.35
excl. GST
₹150.27 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
VBZL60N06
₹127.35 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 470pF
- Current - Continuous Drain(Id)
- 75A
- Ciss-Input Capacitance
- 4.3nF
- Reverse Transfer Capacitance (Crss)
- 225pF
- RDS(on)
- 11mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 47nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.18 g
Overview
Key features
- 175°C junction temperature
- Trench power MOSFET
- N-channel MOSFET
- RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FQB50N06L-VB#C19188183VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 38 | ₹166.33 · 38 in stock | View |
 | SUB45N05-20L-VB#C19190176VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 10 | ₹123.52 · 10 in stock | View |
 | BUK7618-55A-VB#C19626810VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 10 | ₹128.56 · 10 in stock | View |
 | HUF76437S3ST-VB#C19632120VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 10 | ₹147.61 · 10 in stock | View |
 | AUIRFZ44VZSTRR-VB#C19632190VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 20 | ₹128.56 · 20 in stock | View |
